BAR6001D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAR6001D

Preview

BAR6001D: DescriptionRectifier Diode, 1 Phase, 1 Element, 60A, 100V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size131KB，1 Pages; ManufacturerDiotec Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

BAR6001D Overview

Rectifier Diode, 1 Phase, 1 Element, 60A, 100V V(RRM), Silicon,

BAR6001D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diotec Electronics Corp
package instruction	O-XUUC-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.06 V
JESD-30 code	O-XUUC-N2
Maximum non-repetitive peak forward current	800 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	60 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

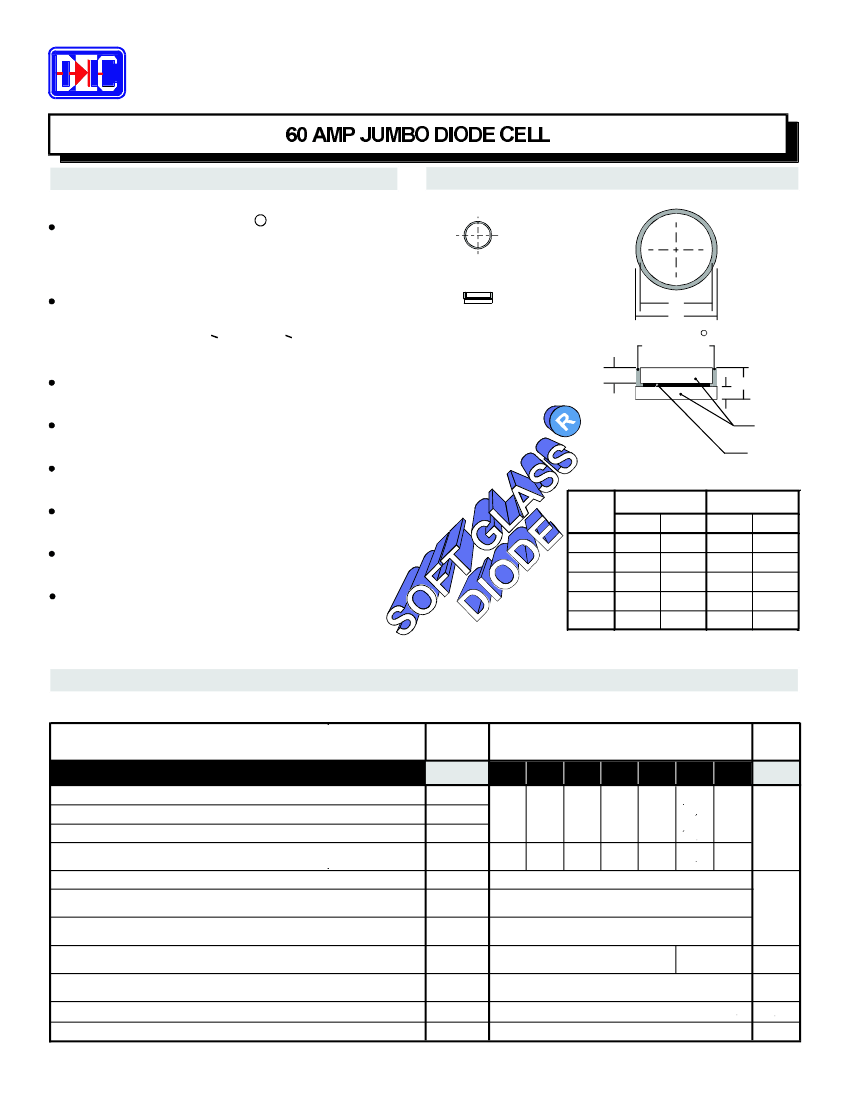

DIOTEC ELECTRONICS CORP

18020 Hobart Blvd., Unit B

Gardena, CA 90248 U.S.A

Tel.: (310) 767-1052 Fax: (310) 767-7958

Data Sheet No. BUDI-6000D-1A

FEATURES

R

MECHANICAL SPECIFICATION

ACTUAL SIZE

PROPRIETARY

SOFT GLASS

JUNCTION

PASSIVATION FOR SUPERIOR RELIABILITY AND

PERFORMANCE

VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM

MECHANICAL STRENGTH AND HEAT DISSIPATION

(Solder Voids: Typical < 2%, Max. < 10% of Die Area)

D

A

Soft Glass

Passivation

G

F

B

Silver Plated

Copper Slugs

Silicon Die

R

Die Size:

0.216" Flat to Flat

Hex

Large die for high power capability

Very low forward voltage drop

Built-in stress relief mechanism for die protection

MILLIMETERS

DIM

A

B

D

Protects expensive automotive electronics and mobile

equipment

F

G

MIN

7.25

2.05

6.50

0.72

0.96

MAX

7.35

2.15

6.60

0.82

1.07

INCHES

MIN

0.285

0.080

0.256

0.028

0.038

MAX

0.290

0.085

0.260

0.032

0.042

Silver plated substrates for easy soldering or installation

Soldering temperature: 250

o

C maximum

MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS

Ratings at 25 °C ambient temperature unless otherwise specified.

PARAMETER (TEST CONDITIONS)

Series Number

Maximum DC Blocking Voltage

Maximum RMS Voltage

Maximum Peak Recurrent Reverse Voltage

Non-repetitive Peak Reverse Voltage (Half wave, single phase,

60 Hz peak)

Average Forward Rectified Current @ T

C

=125

o

C

Peak Forward Surge Current (8.3mS single half sine wave

superimposed on rated load)

Repetitive Peak Reverse Surge Current (Half wave, single phase,

60 Hz applied to rated load)

Maximum Instantaneous Forward Voltage Drop

(I

F

=100A @300

µ

Sec Pulse, T

C

=25

O

C)

@ T

A

= 25

o

C

Maximum Average DC Reverse Current

At Rated DC Blocking Voltage

@ T

A

= 125

o

C

Maximum Thermal Resistance, Junction to Case (Note 1)

Junction Operating and Storage Temperature Range

Notes: 1) Single Side Cooled

SYMBOL

RATINGS

BAR BAR BAR BAR BAR BAR BAR

6000D 6001D 6002D 6004D 6006D 6008D 6010D

UNITS

V

RRM

V

RWM

V

DC

V

RSM

I

O

I

FSM

I

RSM

V

FM

I

RM

R

θJC

T

J

,T

STG

60

120

240

480

60

800

140

1.06 (1.03 Typical)

2

50

0.8

-65 to +175

1.10

VOLTS

µA

°C/W

°C

5.00 fbudi060d

50

100

200

400

600

800

1000

VOLTS

720

960

1200

AMPS

J27

BAR6001D Related Products

	BAR6001D	BAR6010D	BAR6008D	BAR6004D	BAR6006D	BAR6002D	BAR6000D
Description	Rectifier Diode, 1 Phase, 1 Element, 60A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 60A, 50V V(RRM), Silicon,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp
package instruction	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.06 V	1.1 V	1.1 V	1.06 V	1.06 V	1.06 V	1.06 V
JESD-30 code	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2	O-XUUC-N2
Maximum non-repetitive peak forward current	800 A	800 A	800 A	800 A	800 A	800 A	800 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	60 A	60 A	60 A	60 A	60 A	60 A	60 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	1000 V	800 V	400 V	600 V	200 V	50 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1	1	1
