BZW04P128B

Description
Trans Voltage Suppressor Diode, 128V V(RWM), Bidirectional,
CategoryDiscrete semiconductor    diode
File Size67KB,4 Pages
ManufacturerEIC [EIC discrete Semiconductors]
Environmental Compliance
Download Datasheet Parametric View All

BZW04P128B Overview

Trans Voltage Suppressor Diode, 128V V(RWM), Bidirectional,

BZW04P128B Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerEIC [EIC discrete Semiconductors]
Reach Compliance Codecompliant
ECCN codeEAR99
Breakdown voltage nominal value150 V
Maximum clamping voltage207 V
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
polarityBIDIRECTIONAL
Maximum repetitive peak reverse voltage128 V
surface mountNO
Base Number Matches1
BZW04P5V8B SERIES
V
BR
: 6.8 - 440 Volts
P
PK
: 400 Watts
FEATURES :
* 400W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less
then 1.0 ps from 0 volt to V
BR(min)
* Typical I
R
less then 1µA above 10V
* Pb / RoHS Free
BIDIRECTIONAL TRANSIENT
VOLTAGE SUPPRESSOR
DO - 41
0.107 (2.74)
0.080 (2.03)
1.00 (25.4)
MIN.
0.205 (5.20)
0.160 (4.10)
MECHANICAL DATA
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
method 208 guaranteed
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and (millimeters)
DEVICES FOR UNIPOLAR APPLICATIONS
For uni-directional without B suffix
Electrical characteristics apply in both directions
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified.
Rating
Peak Power Dissipation at Ta = 25
°C,
Tp=1ms (Note1)
Steady State Power Dissipation at T
L
= 75
°C
Lead Lengths 0.375", (9.5mm) (Note 2)
Operating and Storage Temperature Range
Symbol
P
PK
P
D
T
J
, T
STG
Value
Minimum 400
1.0
- 65 to + 175
Unit
W
W
°C
Note :

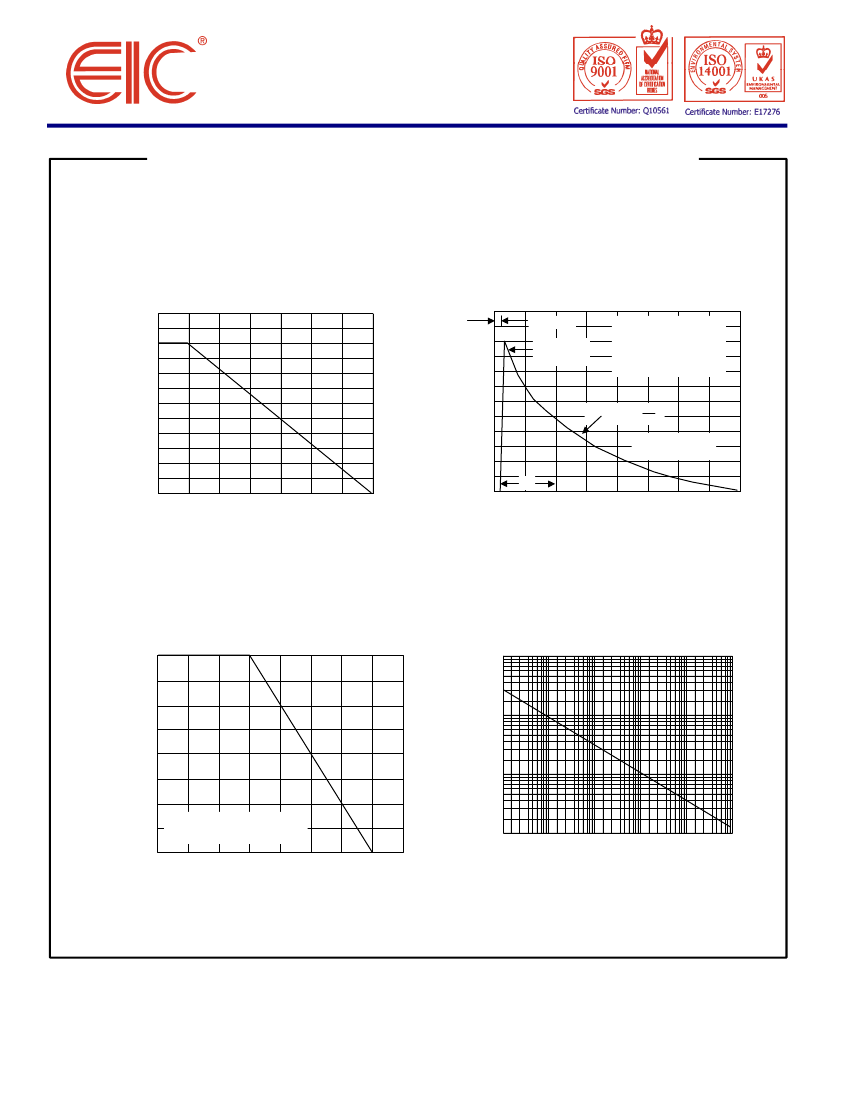

(1) Non-repetitive Current pulse, per Fig. 2 and derated above Ta = 25
°
C per Fig. 1
(2) Mounted on Copper Leaf area of 1.57 in
2
(40mm
2
).
(3) 8.3 ms single half sine-wave, duty cycle = 4 pulses per minutes maximum.
Page 1 of 4
Rev. 04 : March 25, 2005
