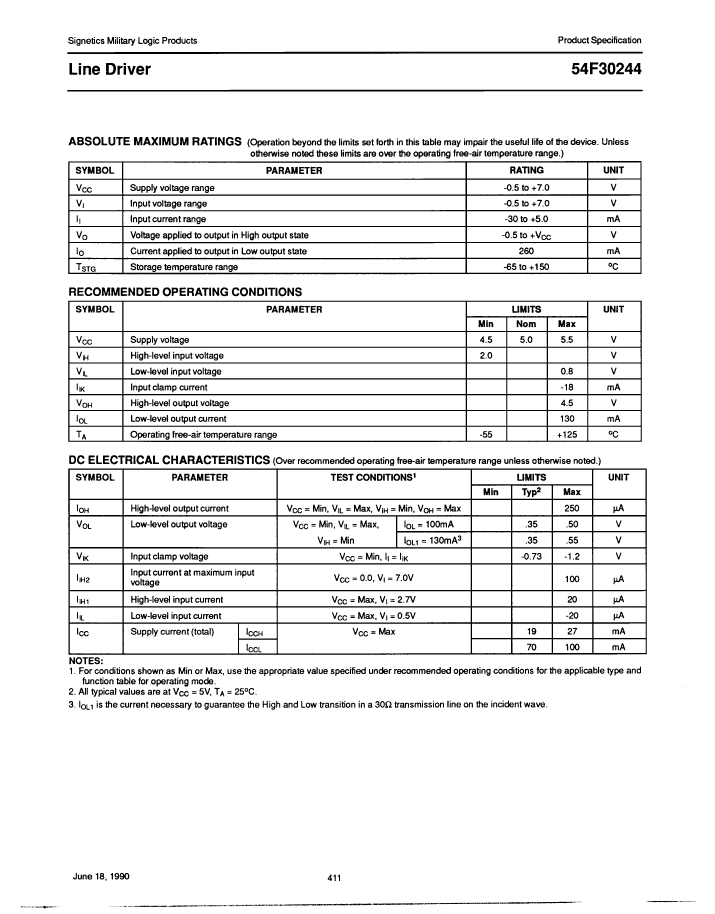

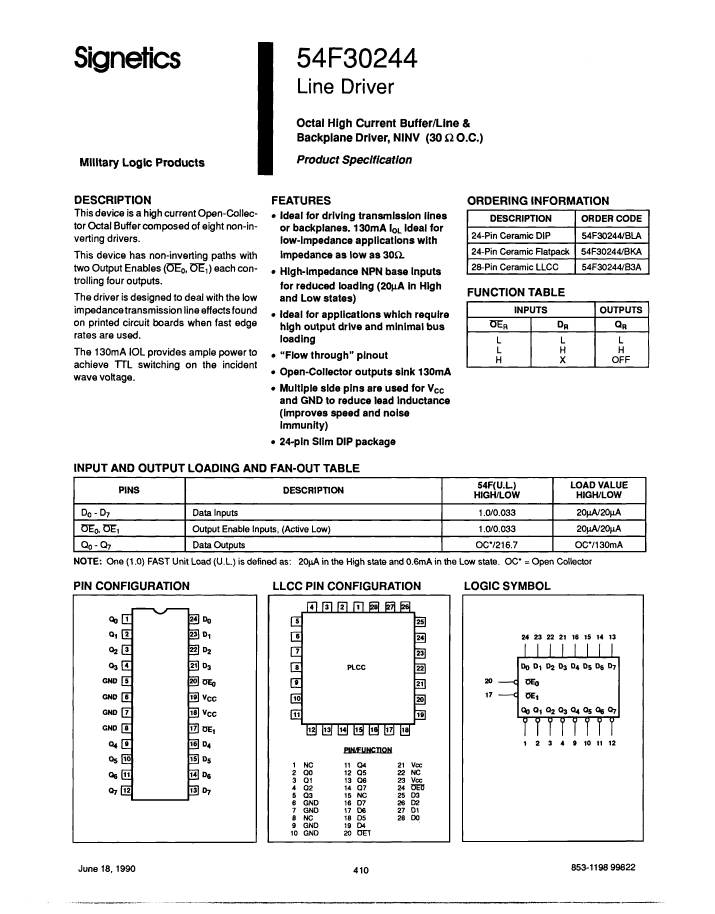

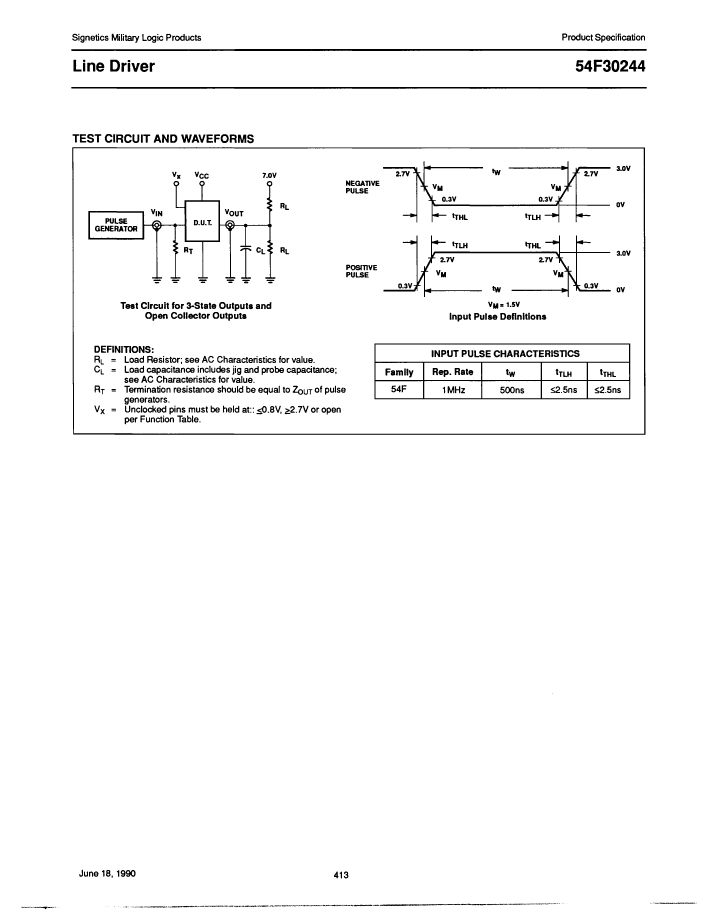

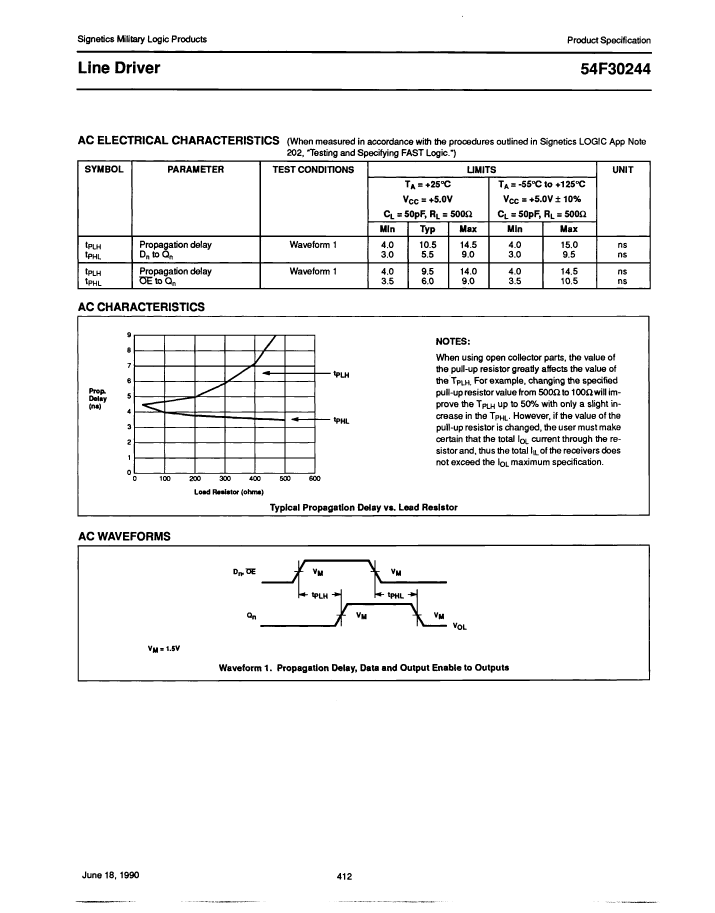

54F30244/BKA datasheet, PDF - EEWORLD Datasheet

54F30244/BKA: DescriptionBus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDFP24; Categorylogic logic; File Size143KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F30244/BKA Overview

Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDFP24

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	30 OHM INCIDENT WAVE SWITCHING
series	F/FAST
JESD-30 code	R-CDFP-F24
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	100 mA
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

	54F30244/BKA	54F30244/B3A	54F30244/BLA
Description	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDFP24	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC28	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDIP24
Reach Compliance Code	unknown	unknown	unknown
Other features	30 OHM INCIDENT WAVE SWITCHING	30 OHM INCIDENT WAVE SWITCHING	30 OHM INCIDENT WAVE SWITCHING
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F24	S-CQCC-N28	R-CDIP-T24
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	24	28	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
Maximum supply current (ICC)	100 mA	100 mA	100 mA
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL
Base Number Matches	1	1	1
Maker	YAGEO	-	YAGEO
