RL-7485-1-6R2M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RL-7485-1-6R2M

RL-7485-1-6R2M: DescriptionGeneral Purpose Inductor, 6.2uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size866KB，2 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric View All

RL-7485-1-6R2M Overview

General Purpose Inductor, 6.2uH, 20%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT

RL-7485-1-6R2M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renco Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.035 Ω
Nominal inductance(L)	6.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	RL-7485-1
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

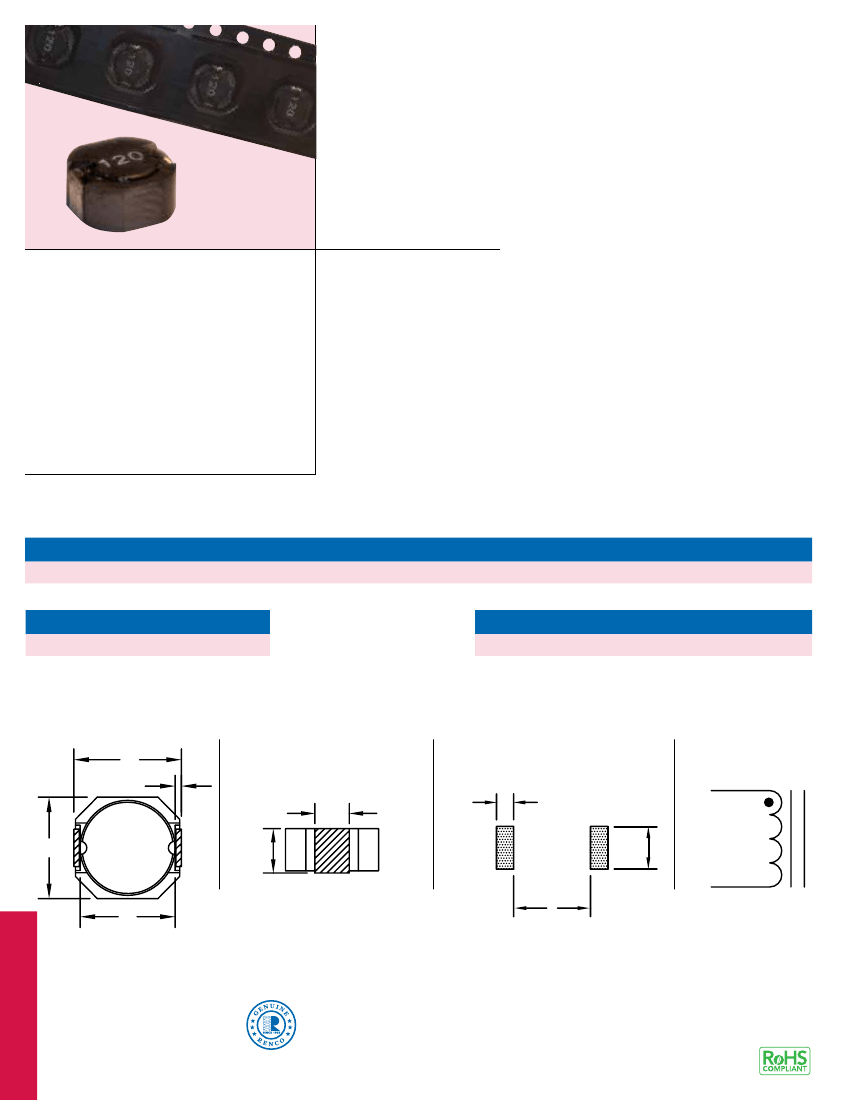

RL-7485-1

SHIELDED SMD

POWER INDUCTORS

DESCRIPTION

• Shielded SMD Power Inductor

FEATURES & APPLICATIONS

• Magnetically shielded

• High inductance/high current power inductor

• Ideal for use in a variety of DC-DC converter inductor applications

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 490

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RL-7485-1

A (MAX.)

0.26 (6.60)

B (MAX.)

0.24 (6.20)

0.19 (4.80)

0.02 (0.60)

0.08 (2.00)

F (MAX.)

0.14 (3.50)

PART NUMBER

RL-7485-1

PART WEIGHT

0.43g (0.02oz)

G (REF.)

0.04 (1.00)

H (REF.)

0.18 (4.60)

I (REF.)

0.10 (2.60)

TOP VIEW

SIDE VIEW

RECOMMENDED PCB LAYOUT

SCHEMATIC

SURFACE MOUNTS

RENCO ELECTRONICS INC.

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
