ALD2303PAXXXX: DescriptionALD2303PAXXXX amplifier basic information: ALD2303PAXXXX is a COMPARATOR. Commonly used packaging methods are, ALD2303PAXXXX amplifier core information: The minimum operating temperature of the ALD2303PAXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.001 µA When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The ALD2303PAXXXX requires only 6500 ns to respond. The nominal supply voltage of the ALD2303PAXXXX is 5 V. The upper limit of its supply voltage is 13.2 VALD2303PAXXXX. The input offset voltage is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of ALD2303PAXXXX: ALD2303PAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8 ALD2303PAXXXX amplifier additional information: Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDIP-T8. ALD2303PAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The ALD2303PAXXXX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size187KB，6 Pages; ManufacturerALD [Advanced Linear Devices]; Alternative parts：ALD2303PAXXXX

Download Datasheet Parametric Compare View All

ALD2303PAXXXX Overview

ALD2303PAXXXX amplifier basic information:

ALD2303PAXXXX is a COMPARATOR. Commonly used packaging methods are,

ALD2303PAXXXX amplifier core information:

The minimum operating temperature of the ALD2303PAXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.001 µA

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The ALD2303PAXXXX requires only 6500 ns to respond.

The nominal supply voltage of the ALD2303PAXXXX is 5 V. The upper limit of its supply voltage is 13.2 VALD2303PAXXXX. The input offset voltage is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of ALD2303PAXXXX:

ALD2303PAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8

ALD2303PAXXXX amplifier additional information:

Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDIP-T8. ALD2303PAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The ALD2303PAXXXX package pin format is: IN-LINE.

Its terminal form is: THROUGH-HOLE.

ALD2303PAXXXX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.001 µA
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDIP-T8
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output type	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal response time	6500 ns
Supply voltage upper limit	13.2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

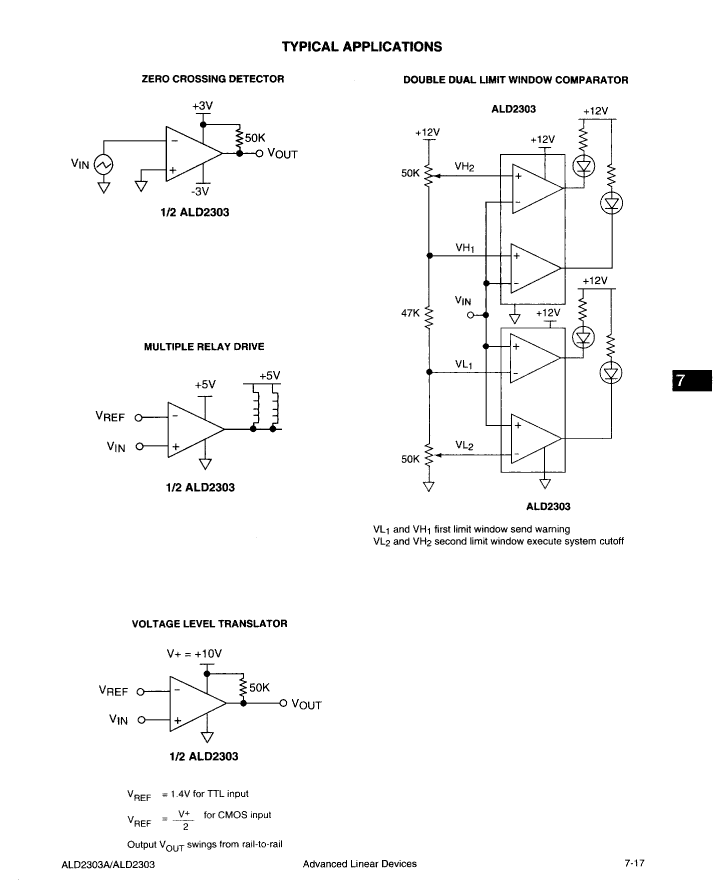

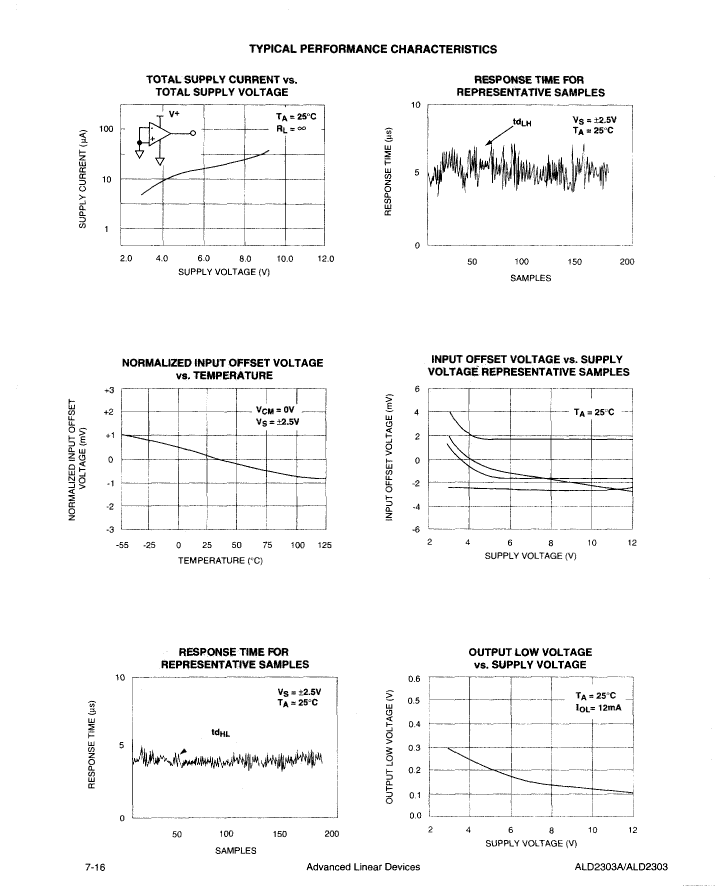

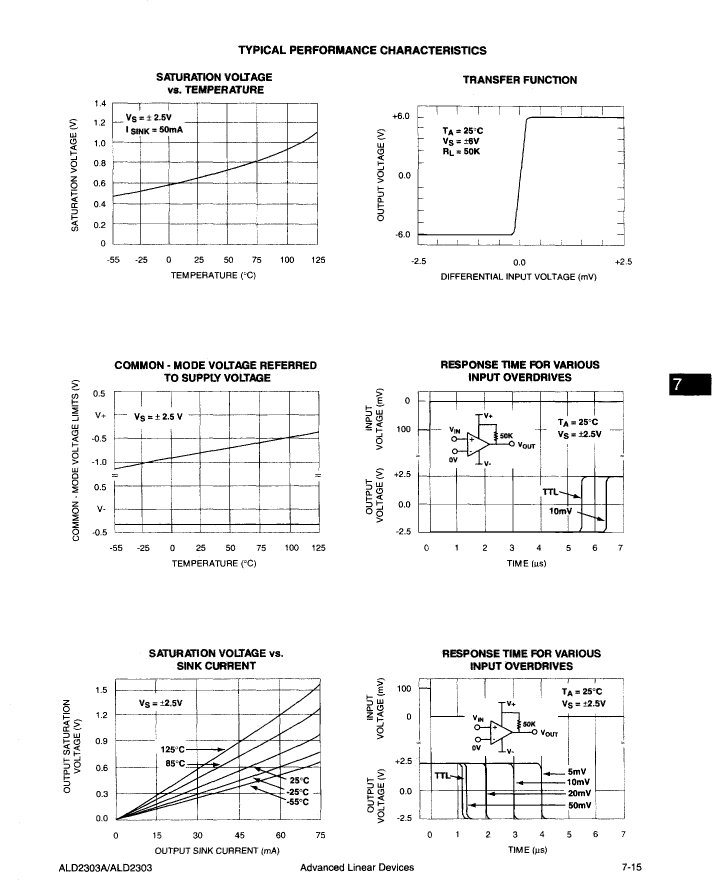

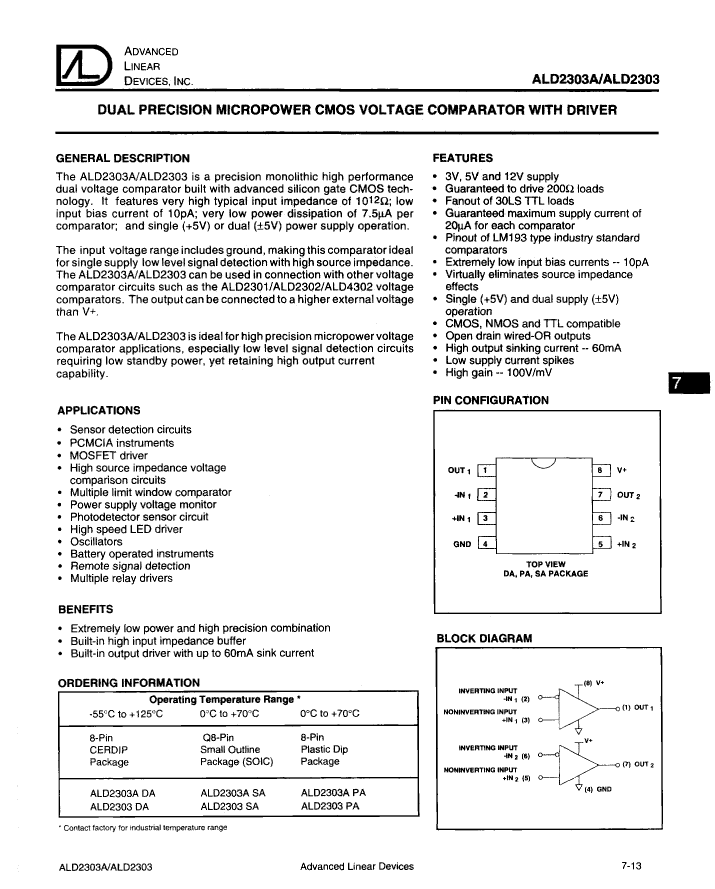

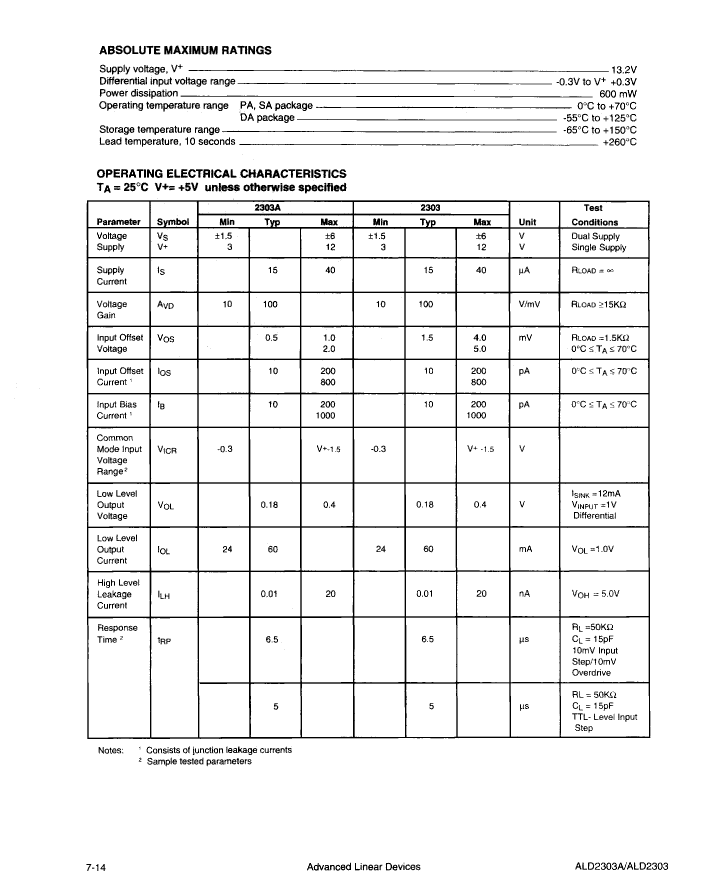

Preview

Download Datasheet

View All

ALD2303PAXXXX Related Products

	ALD2303PAXXXX	ALD2303SAXXXX	ALD2303DAMXXXX	ALD2303ASAXXXX	ALD2303ADAMXXXX	ALD2303APAXXXX
Description	Comparator, 2 Func, 5000uV Offset-Max, 6500ns Response Time, CMOS, PDIP8, PLASTIC, DIP-8	Comparator, 2 Func, 5000uV Offset-Max, 6500ns Response Time, CMOS, PDSO8, SOIC-8	Comparator, 2 Func, 5000uV Offset-Max, 6500ns Response Time, CMOS, CDIP8, CERDIP-8	Comparator, 2 Func, 2000uV Offset-Max, 6500ns Response Time, CMOS, PDSO8, SOIC-8	Comparator, 2 Func, 2000uV Offset-Max, 6500ns Response Time, CMOS, CDIP8, CERDIP-8	Comparator, 2 Func, 2000uV Offset-Max, 6500ns Response Time, CMOS, PDIP8, PLASTIC, DIP-8
Parts packaging code	DIP	SOIC	DIP	SOIC	DIP	DIP
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.001 µA	0.001 µA	0.001 µA	0.001 µA	0.001 µA	0.001 µA
Maximum input offset voltage	5000 µV	5000 µV	5000 µV	2000 µV	2000 µV	2000 µV
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-CDIP-T8	R-PDSO-G8	R-CDIP-T8	R-PDIP-T8
Number of functions	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	125 °C	70 °C	125 °C	70 °C
Output type	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	6500 ns	6500 ns	6500 ns	6500 ns	6500 ns	6500 ns
Supply voltage upper limit	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	-	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]	ALD [Advanced Linear Devices]
