Electrical / Environmental
High Current Low Profile Surface Mount Inductors
Ro
p
H
t
S
losr
n f
om lia
C
‘LF’ M
ode
•
•
•
•
Operating Temperature Range
Temperature Rise, Maximum
Ambient Temperature, Maximum
Insulation System
-40°C to +125°C
40°C
80°C
Class F, 155°C
Specifications
Inductance
100kHz, 0.1V
@ 0 Adc
@ I
rated
(nH±20%)
(nH)
Typ.
Min. Typ.
25
50
70
100
100
150
100
200
100
150
200
300
200
300
18
28
50
60
72
96
64
140
69
104
144
200
150
216
25
36
67
75
95
120
80
175
87
130
180
250
175
285
Part
Number
HM69-10R025
HM69-20R050
HM69-30R070
HM69-40R10
HM69-50R10
HM69-50R15
HM69-55R10
HM69-55R20
HM69-60R10
HM69-60R15
HM69-60R20
HM69-70R30
HM69-75R20
HM69-80R30
Notes:
DCR
(m
Ω
)
Typ.
0.27
0.20
0.40
0.31
0.40
0.40
0.45
0.45
0.42
0.42
0.42
0.17
0.40
0.17
(1)
Max.
0.33
0.24
0.48
0.39
0.48
0.48
0.56
0.56
0.50
0.50
0.50
0.20
0.50
0.25
I
rated
@ 25°C
(Adc)
42
70
46
28
29
18
45
21
68
48
31
37
20
40
(2)
Heating
(3)
Current
(A)
22
35
25
25
24
24
25
25
31
31
31
70
40
76
Core Loss
Factor
K1
3.847E-14
1.074E-13
1.074E-13
7.124E-14
8.733E-14
8.733E-14
1.337E-13
1.337E-13
2.311E-13
2.311E-13
2.311E-13
6.784E-13
3.559E-13
9.107E-13
(4)
K2
59.444
50.117
70.164
156.891
127.990
191.986
96.541
160.902
52.336
78.503
104.671
98.921
134.203
72.674
(1) DC resistance is measured at 25°C.
(2) The rated current (I
rated
) is the current at which the inductance will be decreased by 20% from its initial (zero DC) value.
(3) The heating current is the DC current, which causes the component temperature to increase by approximately 40°C. This current is determined
by soldering the component on a typical application PCB, and then apply the device for 30 minutes.
(4) Core Loss approximation is based on published core data:
Core Loss = K1 * (f)
1.77
* (K2∆I)
2.21
Where: core loss in watt
f = switching frequency in kHz
K1 and K2 = core loss factor
∆I
= delta I across the component in Amp.
K2∆I = one half of the peak to peak flux density across the component in Gauss
Packaging
Standard:
Embossed Tape & Reel
Reel:
Diameter:
Capacity: Case size 10,40
Case size 20,30,60
Case size 50,55,75
Case size 70,80
=
=
=
=
=
13” (330.2mm)
1000 Units
800 Units
500 Units
350 Units
Ordering Information
Model Series
Case Size
HM69
50
R10
LF
TR
Tape & Reel Packing
Inductance Code:
First 2 digits are significant.
Last digit denotes the number of trailing zeros.
For values below 10µH, “R” denotes the decimal point.
Lead-Free Option
LF = Lead-Free
(No code used for non lead-free part)
40
MAGNETIC COMPONENTS SELECTOR GUIDE 2006 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com

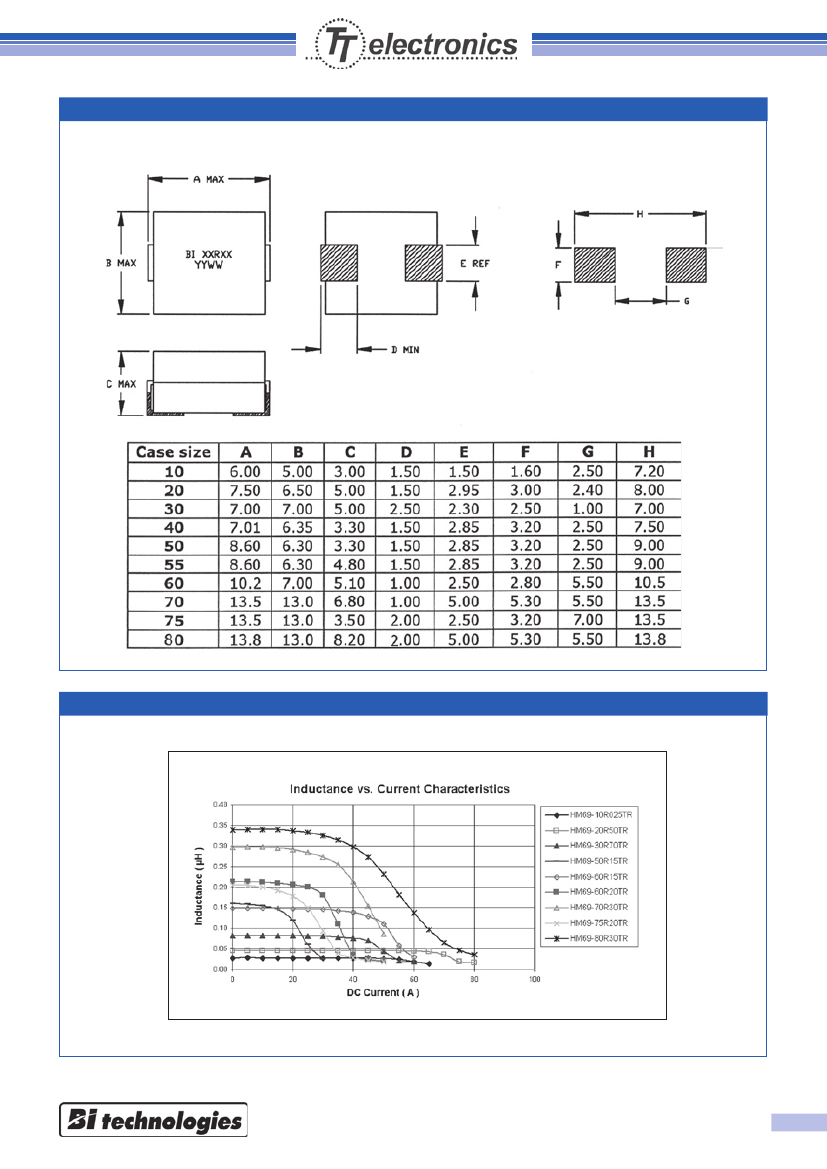

Outline Dimensions (mm)
