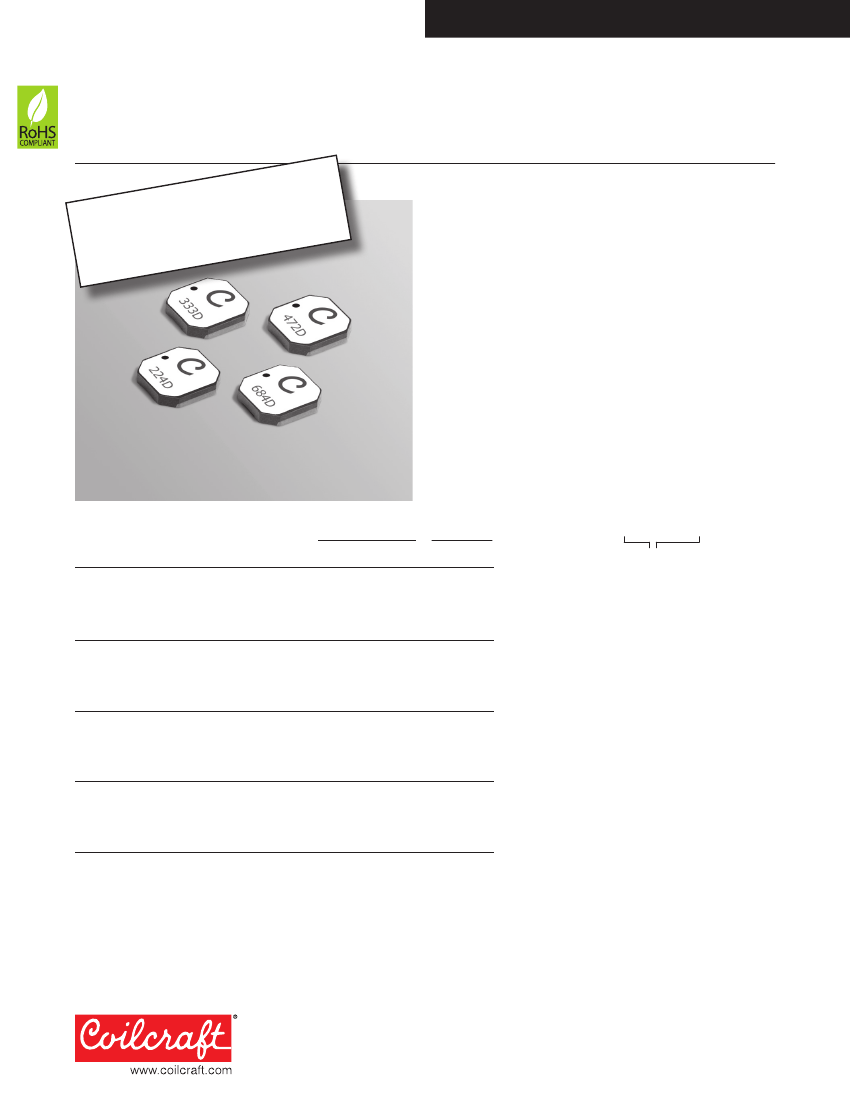

Shielded Power Inductors – LPS5010
n
re
d
par ts a d by new lea
t and fu
These
form, fi
cfm.
e
c
0.
ntical in
re repla
They a which are ide
ft.com/lps501
ra
ns
w.coilc
versio
See
ww
s
ded for
ed ver
en free
mprov
not recommen free and halog ction.
I
lable
.
w avai
ew designs.
ion no
n
• Very low DCR; excellent current handling
• 5.0 × 5.0 mm footprint; less than 1.0 mm tall
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
70 – 75 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3000/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.02 mm pocket depth
(Refer to dimensional drawing for part orientation in tape.)
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
5
Part number
1
LPS5010-471ML_
LPS5010-821ML_
LPS5010-152ML_
LPS5010-222ML_
LPS5010-332ML_
LPS5010-472ML_
LPS5010-562ML_
LPS5010-682ML_
LPS5010-103ML_
LPS5010-153ML_
LPS5010-223ML_
LPS5010-333ML_
LPS5010-473ML_
LPS5010-683ML_
LPS5010-104ML_
LPS5010-124ML_
LPS5010-154ML_
LPS5010-224ML_
LPS5010-334ML_
LPS5010-474ML_
Isat
(A)
DCR SRF
2
max
3
4
Inductance
typ
10% 20% 30%
±20% (µH) (Ohms) (MHz) drop drop drop
0.47
0.82
1.5
2.2
3.3
4.7
5.6
6.8
10
15
22
33
47
68
100
120
150
220
330
470
0.038
0.058
0.072
0.100
0.125
0.175
0.240
0.255
0.350
0.500
0.670
1.05
1.45
2.00
3.10
3.50
4.25
6.25
8.60
12.7
15.7
20.0
28.0
290
195
168
144
105
76
75
71
51
39
32
26
20
15
12
11
9.0
7.0
5.5
4.5
3.1
2.3
1.7
1.4
1.1
0.95
0.90
0.82
0.66
0.55
0.47
0.38
0.31
0.26
0.21
0.20
0.18
0.15
0.12
0.090
3.3
2.5
1.8
1.5
1.2
1.1
0.97
0.90
0.72
0.59
0.51
0.42
0.34
0.29
0.23
0.22
0.20
0.16
0.13
0.11
3.4
2.6
1.9
1.6
1.3
1.1
1.00
0.93
0.74
0.62
0.53
0.43
0.36
0.30
0.24
0.23
0.21
0.17
0.14
0.11
Irms
(A)
6
20°C 40°C
rise rise
2.0
1.2
0.90
0.88
0.86
0.85
0.75
0.74
0.73
0.68
0.46
0.40
0.33
0.25
0.21
0.19
0.17
0.15
0.13
0.11
2.7
1.5
1.4
1.2
1.1
0.98
0.92
0.85
0.80
0.75
0.62
0.55
0.44
0.35
0.28
0.25
0.23
0.20
0.185
0.150
1. Please specify
termination
and
packaging
codes:
LPS5010-105MLC
Termination: L
= RoHS compliant silver-palladium-
platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-
lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape (1000 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready.
To have a leader and trailer added
($25 charge), use code letter C
instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory
order only, not stocked (3500 parts
per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an
Agilent/HP 4192A. Inductance at 1 MHz is the same for
parts with SRF
≥10
MHz.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 8753ES or equivalent.
5. DC current that causes the specified inductance drop
from its value without current.
6. Current that causes the specified temperature rise
from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
LPS5010-564ML_ 560
LPS5010-684ML_ 680
LPS5010-105ML_ 1000
4.0 0.090 0.10 0.10
3.7 0.090 0.097 0.10
3.0 0.087 0.096 0.10
0.10 0.135
0.090 0.125
0.080 0.110
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 536NR-1
Revised 01/23/12
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 536NR-2

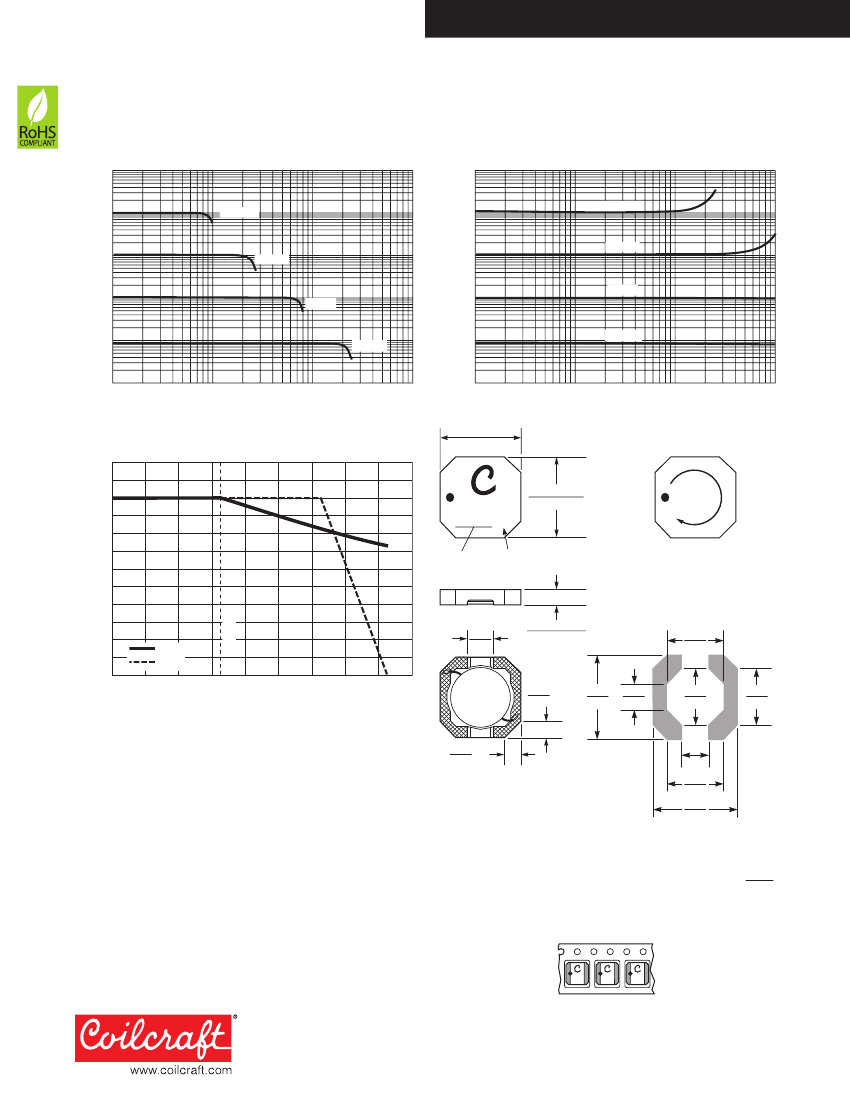

Shielded SMT Power Inductors – LPS5010 Series
Typical L vs Current
10000
1000
1000 µH
Typical L vs Frequency
10000
1000
1000 µH
Inductance (µH)
Inductance (µH)
100
100 µH
100
100 µH
10
10 µH
10
10 µH
1
0.1
0.82 µH
1
0.1
0.82 µH
0.01
0.1
Current (A)
1
10
0.01
0.1
Frequency (MHz)
1
10
Current Derating
120
110
0.189 ±0.003
*
4,80 ±0,076
Percent of rated current
100
90
80
70
60
50
40
XXX X
Dash
number
Internal
code
0.189 ±0.003
*
4,80 ±0,076
Winding
direction
25°C
30
20
10
0
Isat
Irms
-40
-20
0
20
0.060
1,50
0.0354 ±0.004
**
0,90 ±0,10
Recommended
Land Pattern
0.134
3,40
40
60
80
100
120 140
Ambient temperature (°C)
0.039 typ
1,00
0.217
5,51
0.0665
1,689
0.134
3,40
0.134
3,40
0.039 typ
1,00
0.060
1,52
0.134
3,40
0.217
5,51
*
Dimensions are of the case not
including the termination. For maximum
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
**
For optional tin-lead and tin-silver-copper
terminations, dimensions are for the
mounted part. Dimensions before mounting
can be an additional 0.005 inch (0,13 mm).
Dimensions are in
inches
mm
Packaging
1000/7″ reel; 3000/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.02 mm pocket depth
Orientation of parts in packaging tape
123
123
123
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 536NR-2
Revised 01/23/12
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
