ADE-EDR4970/2+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ADE-EDR4970/2+

ADE-EDR4970/2+: DescriptionDouble Balanced Mixer, 1380MHz Min, 1785MHz Max, 8.8dB Conversion Loss-Max, CASE CD636, 6 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size90KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ADE-EDR4970/2+ Overview

Double Balanced Mixer, 1380MHz Min, 1785MHz Max, 8.8dB Conversion Loss-Max, CASE CD636, 6 PIN

ADE-EDR4970/2+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	8.8 dB
JESD-609 code	e3
Maximum operating frequency	1785 MHz
Minimum operating frequency	1380 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Maximum voltage standing wave ratio	1.08
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

Frequency Mixer

Level 17 (LO Power +17 dBm)

Important Note

ADE-EDR4970/2

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

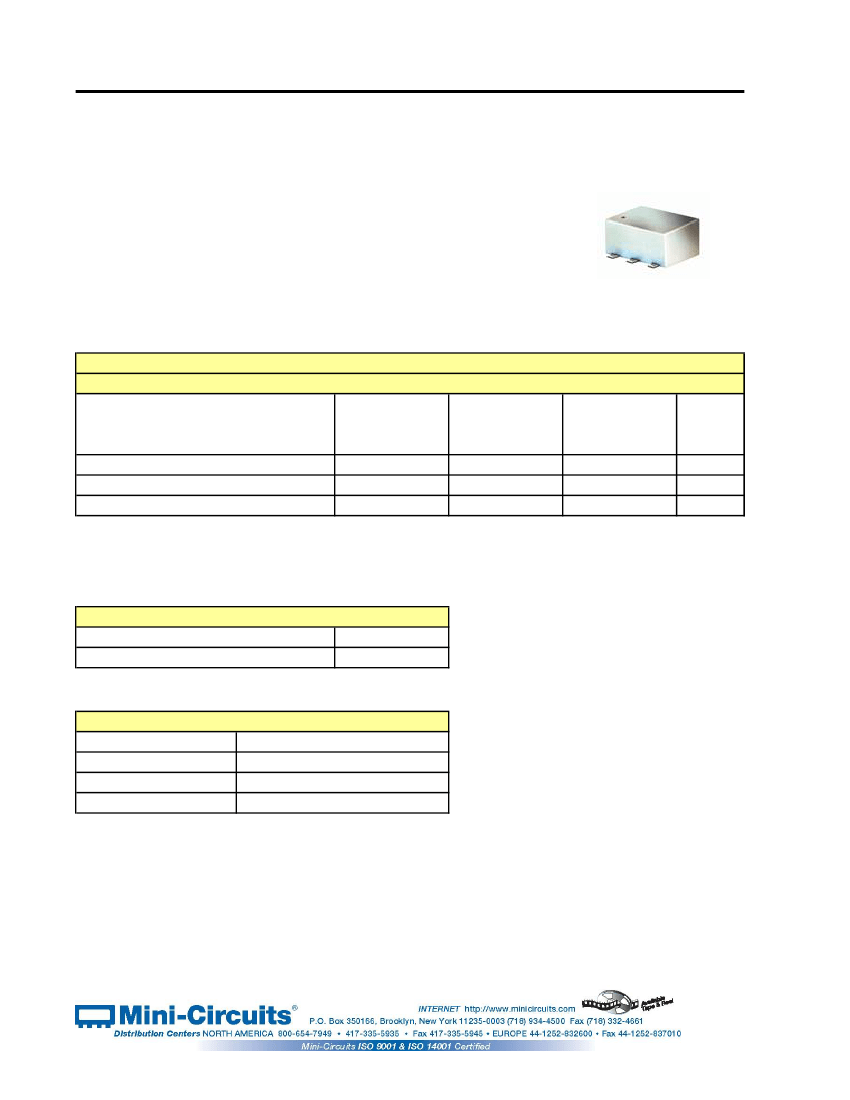

CASE STYLE : CD636

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Frequency

to f

)

to f

)

Min.

1380

300

Typ.

Max.

1785

350

Units

MHz

Conversion Loss

LO-RF Isolation

LO-IF Isolation

8.8

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

-40°C to 85°C

-55°C to 100°C

PIN CONNECTIONS

GROUND

1, 4, 5

REV. X1

ADE-EDR4970/2

060619

Page 1 of 1

ADE-EDR4970/2+ Related Products

	ADE-EDR4970/2+	ADE-EDR4970/2
Description	Double Balanced Mixer, 1380MHz Min, 1785MHz Max, 8.8dB Conversion Loss-Max, CASE CD636, 6 PIN	Double Balanced Mixer, 1380MHz Min, 1785MHz Max, 8.8dB Conversion Loss-Max, CASE CD636, 6 PIN
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Reach Compliance Code	unknown	unknown
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Maximum frequency conversion loss	8.8 dB	8.8 dB
JESD-609 code	e3	e0
Maximum operating frequency	1785 MHz	1785 MHz
Minimum operating frequency	1380 MHz	1380 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.08	1.08
Base Number Matches	1	1
