RWM
Vishay Sfernice
Enamelled Wirewound Power Resistors
Axial Leads
FEATURES
•
High dissipation up to 30 W (25 °C)
As a result of more than 50 years of experience and
continuous improvements the RWM Series of resistors
features proven reliability in AC or DC applications.
The high quality of the RWM resides mainly in the use of a
proprietary Vishay Sfernice enamel fired at high temperature
and free from any compound liable to corrode the resistive
wire.
•
Fire proof
RoHS
•
Excellent endurance typical drift ± 1.5 % after
COMPLIANT
1000 h
•
Conformal vitreous enamel
•
All welded construction
•
Low ohmic values 0.1
Ω
available
•
Termination: Sn/Ag/Cu
•
Compliant to RoHS directive 2002/95/EC
The performance of this series of professional resistors fully
meets the requirements of the following specifications:
- NF C 83-210-001
- CECC 40201-001
- BS - CECC 40201-002

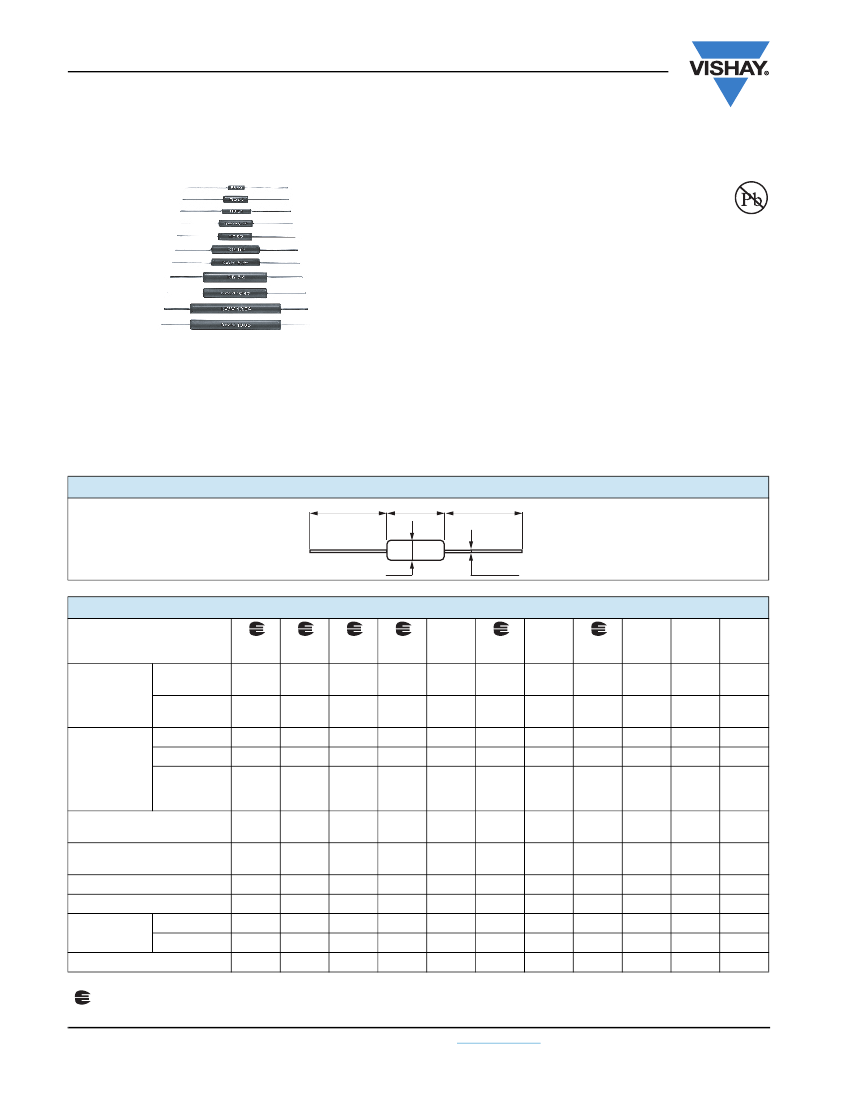

DIMENSIONS
in millimeters
25 min
A
25 min.
Ø
B
Ø 0.8 ± 0.1
TECHNICAL SPECIFICATIONS
VISHAY SFERNICE SERIES
AND STYLE
CECC
40201-001
CECC
40201-002
at + 70 °C
at + 25 °C
Power Rating
With Surface
Temp.
≤
+ 450 °C
RWM
4 x 10
RB59
JB
2.6 W
3W
5.5 W
0.1
Ω
10 kΩ
0.1
Ω
10 kΩ
120 V
4.8 kΩ
12 ± 1
5.5 ± 1
1
RWM
4 x 22
RB61
HB
4.5 W
5W
7W
0.1
Ω
16 kΩ
0.1
Ω
6.8 kΩ
300 V
-
RWM
5 x 26
RB57
-
6W
7W
10 W
0.1
Ω
27 kΩ
0.15
Ω
10 kΩ
350 V
RWM
6 x 22
RB57
KB
6W
7W
10 W
0.1
Ω
39 kΩ
0.15
Ω
39 kΩ
350 V
RWM
8 x 26
RB60
-
7W
8W
10 W
0.1
Ω
27 kΩ
-
500 V
-
RWM
6 x 34
RB60
LB
7W
8W
12 W
0.33
Ω
36 kΩ
0.33
Ω
15 kΩ
500 V
31 kΩ
RWM
8 x 34
RB58
-
9.5 W
11 W
14 W
0.33
Ω
36 kΩ
-
650 V
-
RWM
8 x 45
RB58
MB
9.5 W
11 W
20 W
0.47
Ω
62 kΩ
0.47
Ω
33 kΩ
650 V
38 kΩ
RWM
10 x 45
-
-
21 W
25 W
25 W
0.47
Ω
62 kΩ
-
800 V
RWM
10 x 64
-
-
21 W
25 W
25 W
0.68
Ω
100 kΩ
-
800 V
RWM
10 x 65
-
-
25.8 W
30 W
30 W
0.68
Ω
100 kΩ
-
800 V
Designations
Ohmic Range in Relation to
Tolerance ± 5 % E24 Series
Qualified Ohmic Range
NF C 83-210
Limiting Element Voltage
Critical Resistance
Dimensions
in mm
Weight in g
A
ØB
18.8 kΩ 17.5 kΩ
18 ± 1
25.6 kΩ 25.6 kΩ 21.3 kΩ
22.1 ± 1 24.7 ± 1
24.7 ± 1 33.7 ± 1 33.7 ± 1 45.8 ± 2 45.8 ± 2 63.8 ± 1 63.8 ± 1
5.5 ± 1 7.4 ± 1.5 6.5 ± 1 7.4 ± 1.5 7.4 ± 1.5 7.4 ± 1.5 9.4 ± 1.5 9.4 ± 1.5 9.4 ± 1.5 9.4 ± 1.5
2
3
2.2
3
4
4
8
8
14
14
Note
Undergoes European Quality Insurance System (CECC)
•
www.vishay.com
88
For technical questions, contact:
sfer@vishay.com
Document Number: 50008
Revision: 16-Oct-09
RWM
Enamelled Wirewound Power Resistors
Axial Leads
PERFORMANCE
CECC 40201 - EN 140-201
TYPICAL DRIFTS
TESTS
Short Time Overload
CONDITIONS
10
P
r
during 10 s
25 °C ambient
REQUIREMENTS
± (2 % + 0.1
Ω)
± (0.5 % + 0.05
Ω)
Vishay Sfernice
Temperature Cycling
- 55 °C + 200 °C
± (1 % + 0.05
Ω)
± (0.5 % + 0.05
Ω)
Humidity (Steady State)
56 days
40 °C ambient - R.H. 95 %
Tensile test: 20 N
2 successive bending
2 full rotations of 180°
1000 h at
P
r
90’/30’ cycle
25 °C ambient
± (5 % + 0.1
Ω)
± (0.5 % + 0.05
Ω)
Terminal Strength
± (1 % + 0.05
Ω)
± (0.1 % + 0.05
Ω)
Load Life
± (5 % + 0.1
Ω)
± (1.5 % + 0.05
Ω)
OVERLOAD
Heavy overloads can be endured in the form of short pulses
< 0.1 s. Particular requirements should be submitted to
Vishay Sfernice, specifying peak voltage, cycle and
environmental conditions.
Group Mounting
In a still atmosphere, a distance between axes equal to five
times the resistor’s diameter is recommended.
Cabinet Mounting
•
Unventilated box: Dissipation should be reduced (see
RECOMMENDATIONS FOR USE
Since these components are high dissipation power
resistors, customers are advised to use a high melting point
solder.
For low ohmic values, the measurement becomes critical
and the connecting wires resistance is to be included. The
value is measured at 5 mm from the resistor body.
dimensional drawing).
•
Forced ventilation: If conditions are appropriate,
dissipation may be doubled or even trebled.
•
In any case: The surface temperature at the hottest point
should not exceed 450 °C.
These aspects should be considered by the end user.
ELECTRICAL SPECIFICATIONS
Tolerance
Standard
On request
Temperature Coefficient + 75 ppm/°C typical
Dielectric Withstanding Voltage NF EN140000
Inductance
500 V
RMS
- 1 min - 10 mA
Non inductive (Ayrton-Perry) winding available
±5%
± 1 % and ± 2 %
Document Number: 50008
Revision: 16-Oct-09
For technical questions, contact:
sfer@vishay.com
www.vishay.com
89
RWM
Vishay Sfernice

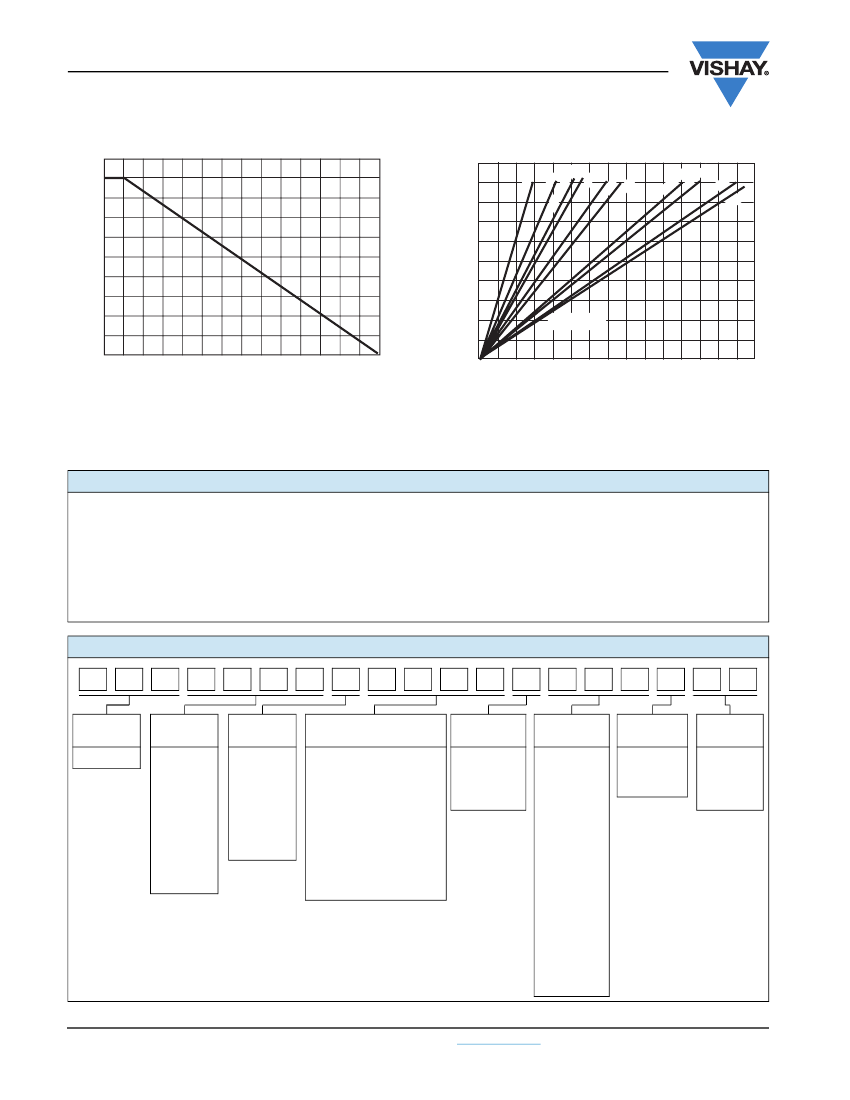

POWER RATING
116
100
Enamelled Wirewound Power Resistors
Axial Leads
TYPICAL TEMPERATURE RISE
4x
26
22
-6
x2
2
8
x
26
6x
8
34
x
34
500
HOT SPOT TEMPERATURE IN °C
4x
8
x
45
10 x
10
45
x
10
64
RATED POWER IN
%
400
75
300
50
200
25
100
5x
x
10
65
Optional
0
0
25
100
200
300
350
0
0
2
4
6
8
10 12 14 16 18 20 22 24 26 28 30
AMBIENT TEMPERATURE IN °C
RATED POWER IN W
MARKING
Vishay Sfernice trademark, model and style, CECC style, if applicable (except for the smallest model due to lack of space:
(4 x 10 or RB 59), ohmic value, resistance tolerance, manufacturing date (year - month).
ORDERING INFORMATION
RWM
MODEL
4 x 10
STYLE
NI OPTIONAL
Non Inductive
Winding
XXX
SPECIAL
DESIGN
Method N°
Optional
1U2
OHMIC VALUE
Custom items
are subject to
extra charge and
minimum order.
Please see price list.
±5%
TOLERANCE
AM500
PACKAGING
e1
LEAD
(Pb)-FREE
GLOBAL PART NUMBER INFORMATION
R
W
M
0
4
1
0
1
R
2
0
J
R
1
5
E
1
GLOBAL
MODEL
RWM
SIZE
d x L:
0410
0422
0526
0826
0634
0845
1045
1064
1065
OPTION
Blank
or
N
(Non
inductive
winding)
OHMIC VALUE
The first three digits are
significant figures and the
last digit specifies the
number of zeros to follow.
R designates decimal point.
48R7
= 48.7
Ω
1R20
= 1.2
Ω
1002
= 10 000
Ω
R330
= 0.33
Ω
...
TOLERANCE
F
=1%
G
=2%
J
=5%
K
= 10 %
PACKAGING
Size 0410,
0422, 0526,
0826, 0622:
R15
= Reel
(1000 pieces)
Size 0845,
1045, 1064,
1065:
B25
= Box
(50 pieces)
Size 0634:
S09
= Bag
(50 pieces)
Other
packaging
existing
SPECIAL
As
applicable
Ex:
AD7
LEAD
(Pb)-FREE
Sn(99),
Ag(0.3),
Cu(0.7):
E1
www.vishay.com
90
For technical questions, contact:
sfer@vishay.com
Document Number: 50008
Revision: 16-Oct-09
