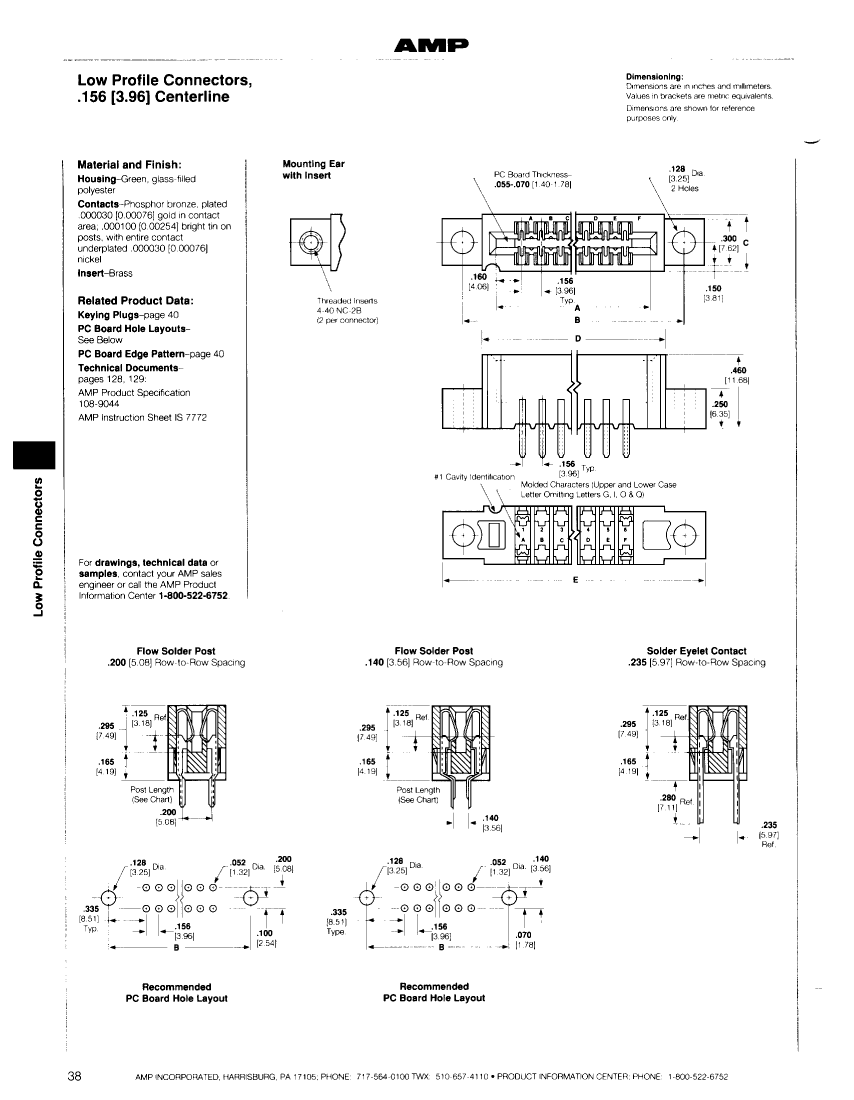

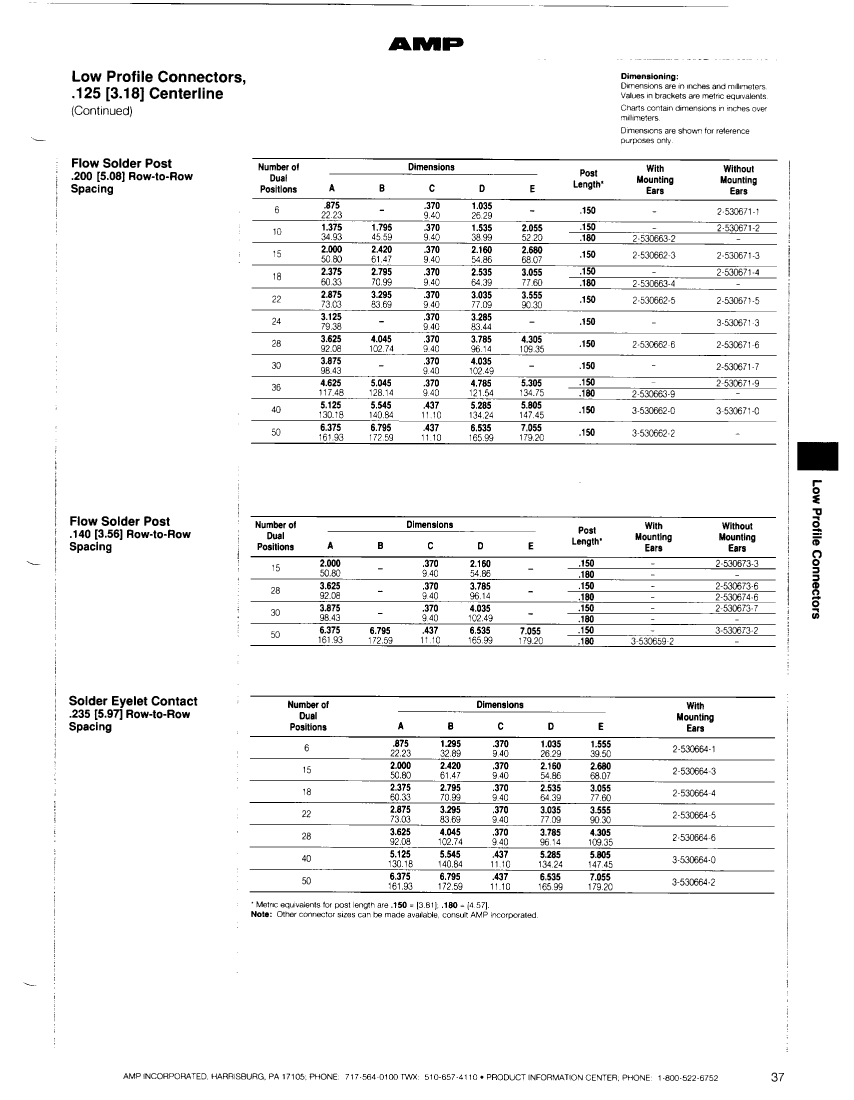

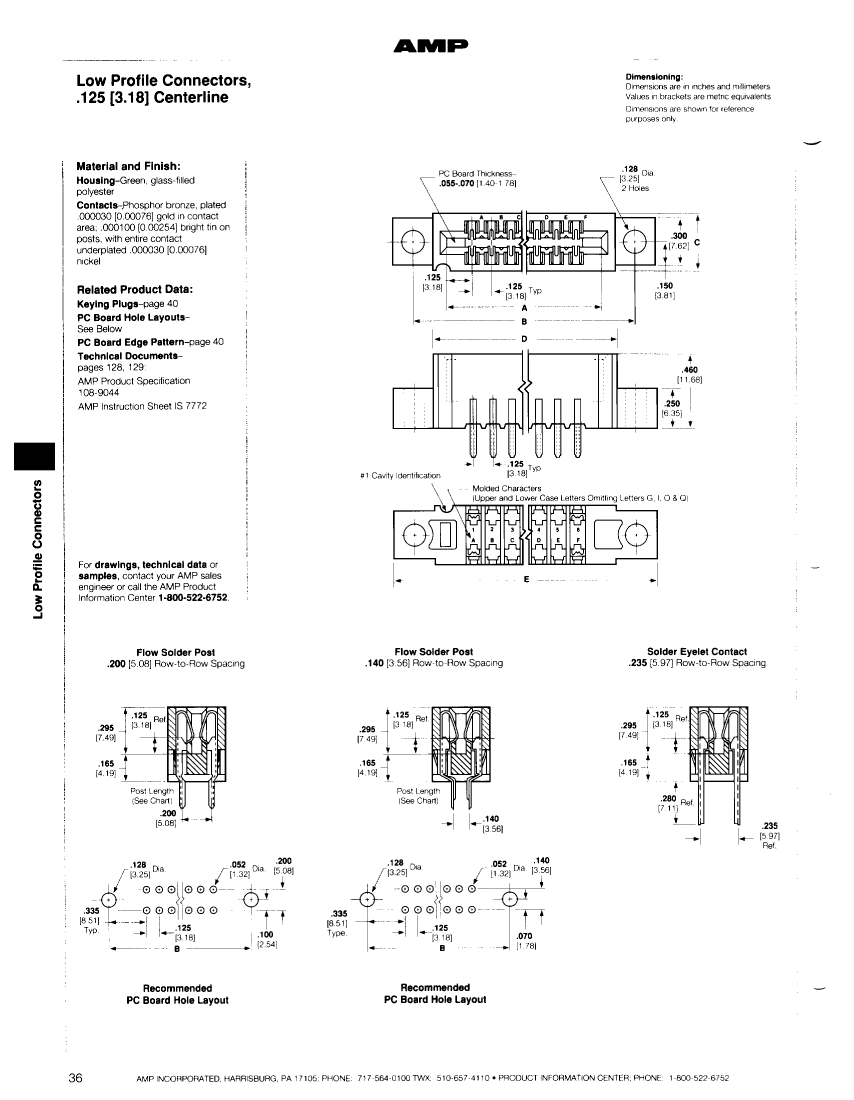

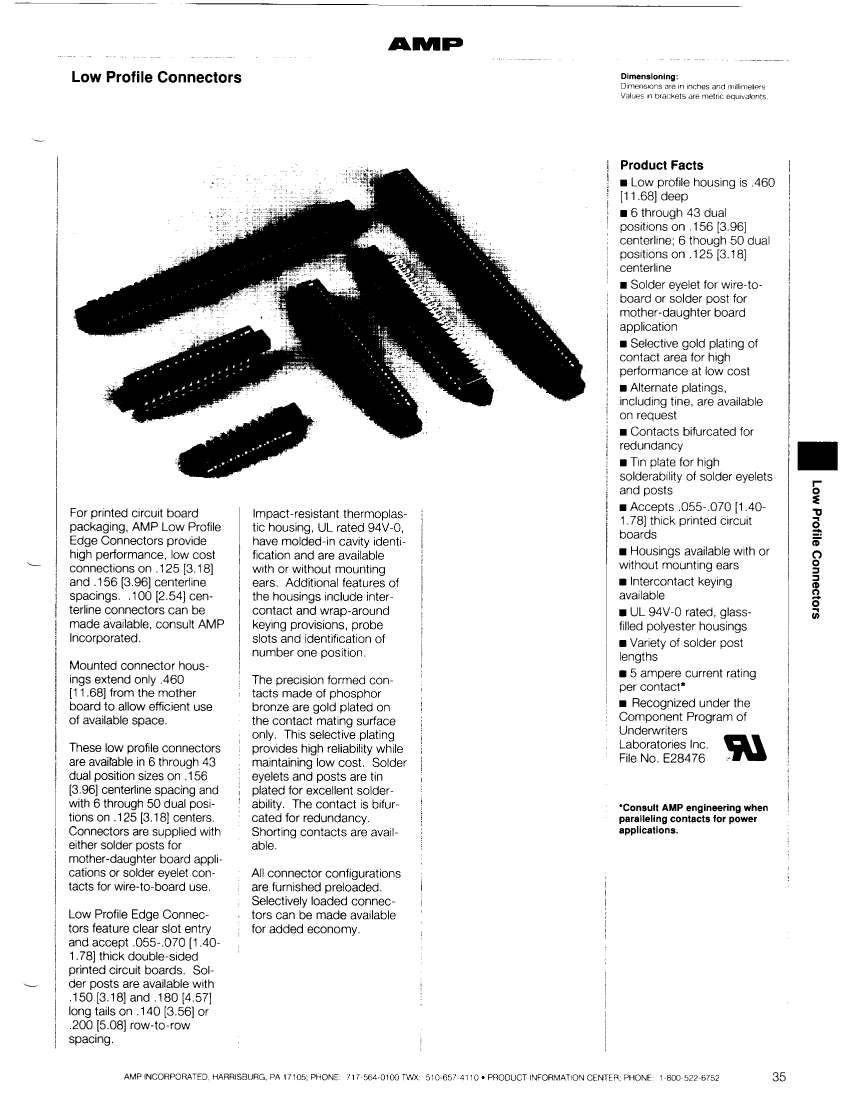

EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.156 PITCH,PC TAIL TERMINAL

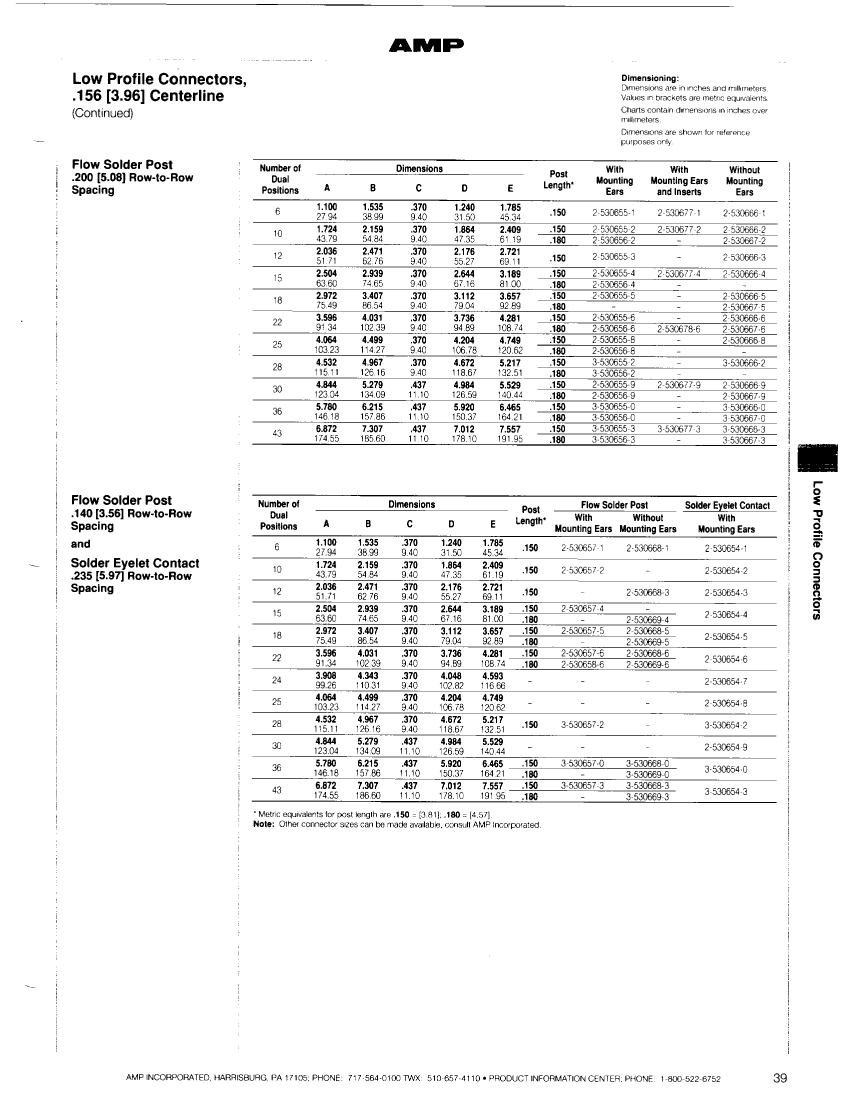

| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Other features | NONE |
| body width | 0.437 inch |
| subject depth | 0.46 inch |
| body length | 6.465 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| contact mode | RECTANGULAR |
| Contact style | BELLOWED TYPE |
| Insulator color | GREEN |
| insulator material | GLASS FILLED POLYESTER |
| Plug contact pitch | 0.156 inch |
| Match contact row spacing | 0.14 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.556 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.15 inch |
| Terminal pitch | 3.9624 mm |
| Termination type | SOLDER |
| Total number of contacts | 36 |
| Base Number Matches | 1 |
| 3-530668-0 | 2-530669-6 | |
|---|---|---|
| Description | EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.156 PITCH,PC TAIL TERMINAL | EDGE CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,0.156 PITCH,PC TAIL TERMINAL |
| Reach Compliance Code | unknown | unknown |
| Other features | NONE | NONE |
| body width | 0.437 inch | 0.37 inch |
| subject depth | 0.46 inch | 0.46 inch |
| body length | 6.465 inch | 4.281 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact style | BELLOWED TYPE | BELLOWED TYPE |
| Insulator color | GREEN | GREEN |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| Plug contact pitch | 0.156 inch | 0.156 inch |
| Match contact row spacing | 0.14 inch | 0.14 inch |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.556 mm | 3.556 mm |
| Plating thickness | 30u inch | 30u inch |
| Rated current (signal) | 5 A | 5 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.15 inch | 0.18 inch |
| Terminal pitch | 3.9624 mm | 3.9624 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 36 | 22 |
| Base Number Matches | 1 | 1 |
