HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HE6334-B
Issued Date : 1992.11.18
Revised Date : 2000.10.01
Page No. : 1/3
HMPSA43
NPN SILICON TRANSISTOR
Description
The HMPSA43 is high voltage transistor.
Features
•
High Collector-Emitter Breakdown Voltage
•
Low Collector-Emitter Saturation Voltage
•
For Complementary Use with PNP Type HMPSA93
Absolute Maximum Ratings
•
Maximum Temperatures
Storage Temperature ............................................................................................ -55 ~ +150
°C
Junction Temperature ................................................................................... +150
°C
Maximum
•
Maximum Power Dissipation
Total Power Dissipation (Ta=25°C) ............................................................................... 625 mW
•
Maximum Voltages and Currents (Ta=25°C)
VCBO Collector to Base Voltage ...................................................................................... 200 V
VCEO Collector to Emitter Voltage ................................................................................... 200 V
VEBO Emitter to Base Voltage ............................................................................................. 6 V
IC Collector Current ...................................................................................................... 500 mA
Characteristics
(Ta=25°C)
Symbol
BVCBO
BVCEO
BVEBO
ICBO
IEBO
*VCE(sat)
*VBE(sat)
*hFE1
*hFE2
*hFE3
fT
Cob
Min.
200
200
6
-
-
-
-
25
40
40
50
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
Max.
-
-
-
100
100
350
900
-
-
-
-
4
Unit
V
V
V
nA
nA
mV
mV
Test Conditions
IC=100uA, IE=0
IC=1mA, IB=0
IE=10uA, IC=0
VCB=200V, IE=0
VEB=6V, IC=0
IC=20mA, IB=2mA
IC=20mA, IB=2mA
IC=1mA, VCE=10V
IC=10mA, VCE=10V
IC=30mA, VCE=10V
IC=10mA, VCE=20V, f=100MHZ
VCB=20V, f=1MHz
*Pulse Test : Pulse Width
≤380us,
Duty Cycle≤2%
MHz
pF
Classification Of hFE2 & V
CE(sat)
Rank
NS
N
hFE1
>80
>25
hFE2
>120
>40
hFE3
>120
>40
VCE(sat)
<200mV
<350mV
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.

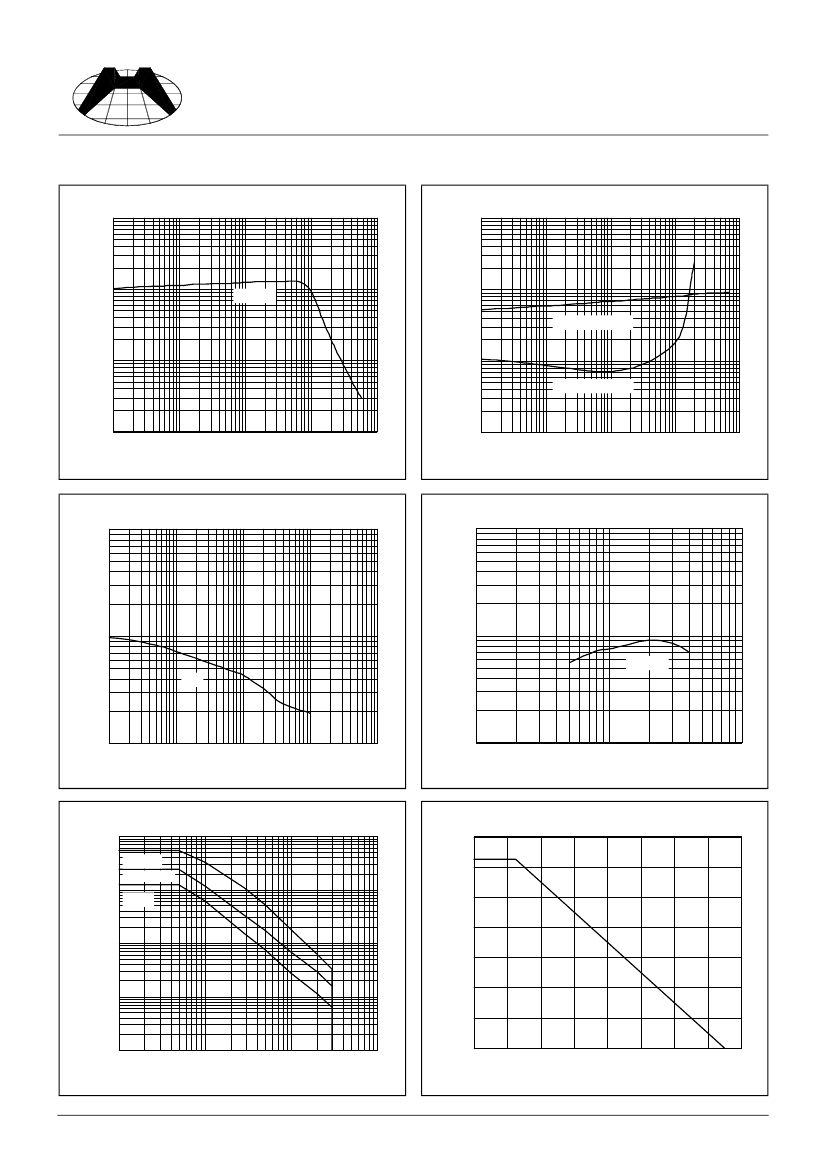

Characteristics Curve
Current Gain & Collector Current
1000
10000
Spec. No. : HE6334-B
Issued Date : 1992.11.18
Revised Date : 2000.10.01
Page No. : 2/3
Saturation Voltage & Collector Current
100
Saturation Voltage (mV)
V
CE
=10V
1000
hFE
V
BE(sat)
@ I
C
=10I
B
10
100
V
CE(sat)
@ I
C
=10I
B
1
0.1
1
10
100
1000
10
0.1
1
10
100
1000
Collector Current (mA)
Collector Current (mA)
Capacitance & Reverse-Biased Voltage
100
1000
Cutoff Frequency & Ic
Cutoff Frequency (MHz)
Capacitance (pF)
10
100
V
CE
=20V
Cob
1
0.1
1
10
100
1000
10
1
10
100
Reverse Biased voltage (V)
Collector Current (mA)
Safe Operating Area
10000
P
T
=1ms
P
T
=100ms
700
600
PD-Ta
Collector Current-I
C
(mA)
1000
P
T
=1s
Power Dissipation-PD(mW)
500
400
300
200
100
100
10
1
1
10
100
1000
0
0
20
40
60
80
100
o
120
140
160
Forward Biased Voltage-V
CE
(V)
Ambient Temperature-Ta( C)
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
TO-92 Dimension
A
B
1 2
3
Spec. No. : HE6334-B
Issued Date : 1992.11.18
Revised Date : 2000.10.01
Page No. : 3/3
α
2
Marking :
HSMC Logo
Part Number
Date Code
Rank
Product Series
α
3
Laser Mark
HSMC Logo
Product Series
C
D
Part Number
H
I
E
F
G
Ink Mark
Style : Pin 1.Emitter 2.Base 3.Collector
α
1
3-Lead TO-92 Plastic Package
HSMC Package Code : A
*:Typical
DIM
A
B
C
D
E
F
Inches
Min.
Max.
0.1704 0.1902
0.1704 0.1902
0.5000
-
0.0142 0.0220
-
*0.0500
0.1323 0.1480
Millimeters
Min.
Max.
4.33
4.83
4.33
4.83
12.70
-
0.36
0.56
-
*1.27
3.36
3.76
DIM
G
H
I
α1
α2
α3
Inches
Min.
Max.
0.0142 0.0220
-
*0.1000
-
*0.0500
-
*5°
-
*2°
-
*2°
Millimeters
Min.
Max.
0.36
0.56
-
*2.54
-
*1.27
-
*5°
-
*2°
-
*2°
Notes :
1.Dimension and tolerance based on our Spec. dated Apr. 25,1996.
2.Controlling dimension : millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
Material :
•
Lead : 42 Alloy ; solder plating
•
Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
•
HSMC reserves the right to make changes to its products without notice.
•
HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory :
•
Head Office
(Hi-Sincerity Microelectronics Corp.) : 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel : 886-2-25212056 Fax : 886-2-25632712, 25368454
•
Factory 1 :
No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel : 886-3-5983621~5 Fax : 886-3-5982931
•
Factory 2 :
No. 17-1, Ta-Tung Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel : 886-3-5977061 Fax : 886-3-5979220
HSMC Product Specification
