Datasheet> All Categories > logic> logic> CD74FCT653EN

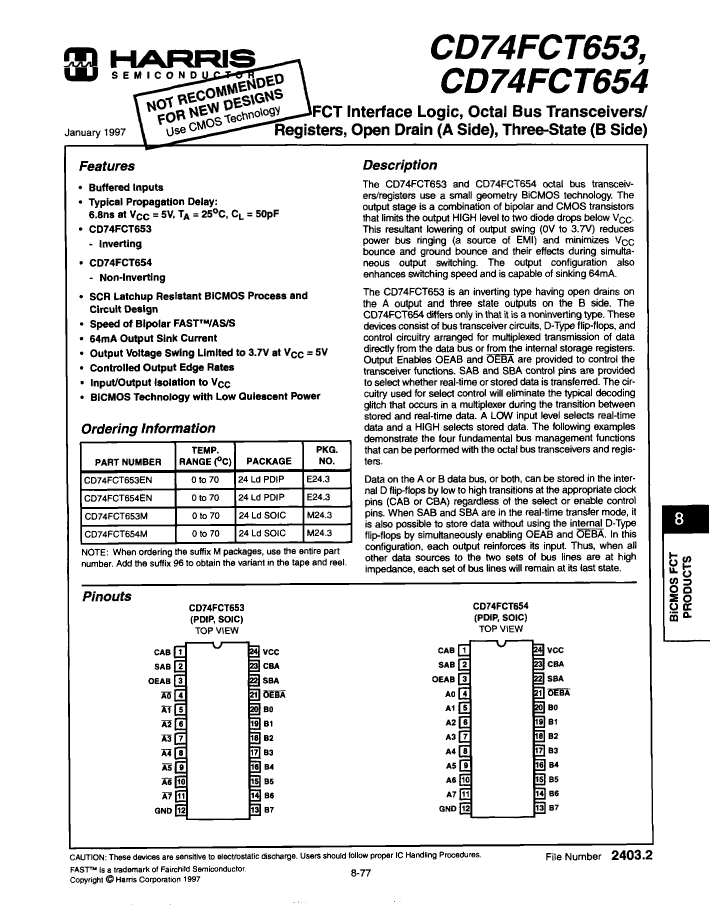

Preview

CD74FCT653EN: DescriptionIC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,DIP,24PIN,PLASTIC; Categorylogic logic; File Size203KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74FCT653EN Overview

IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,DIP,24PIN,PLASTIC

CD74FCT653EN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Reach Compliance Code	not_compliant
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.064 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-DRAIN/3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	9 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

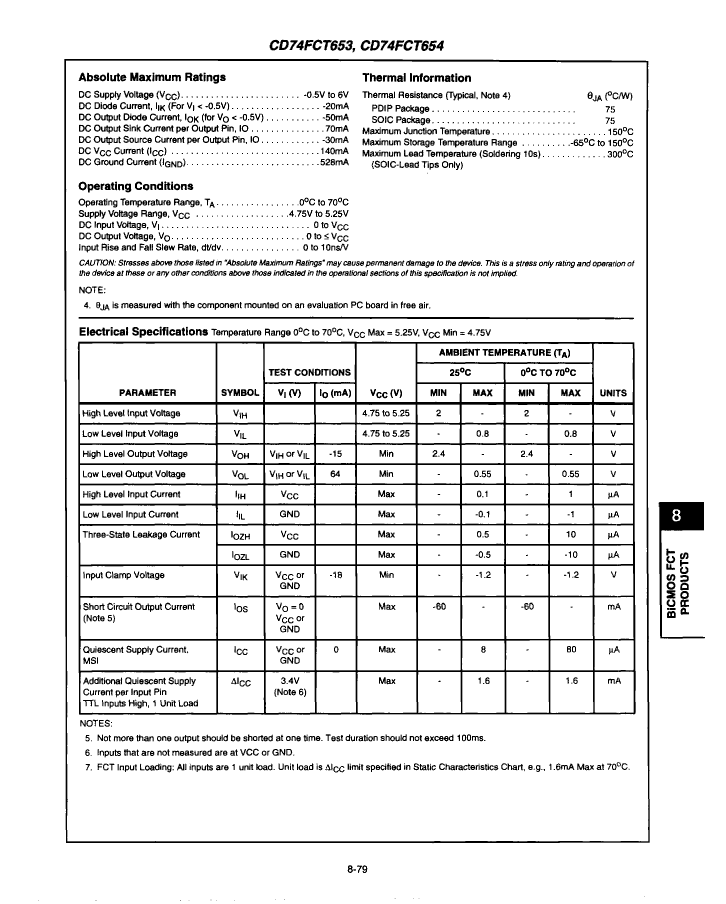

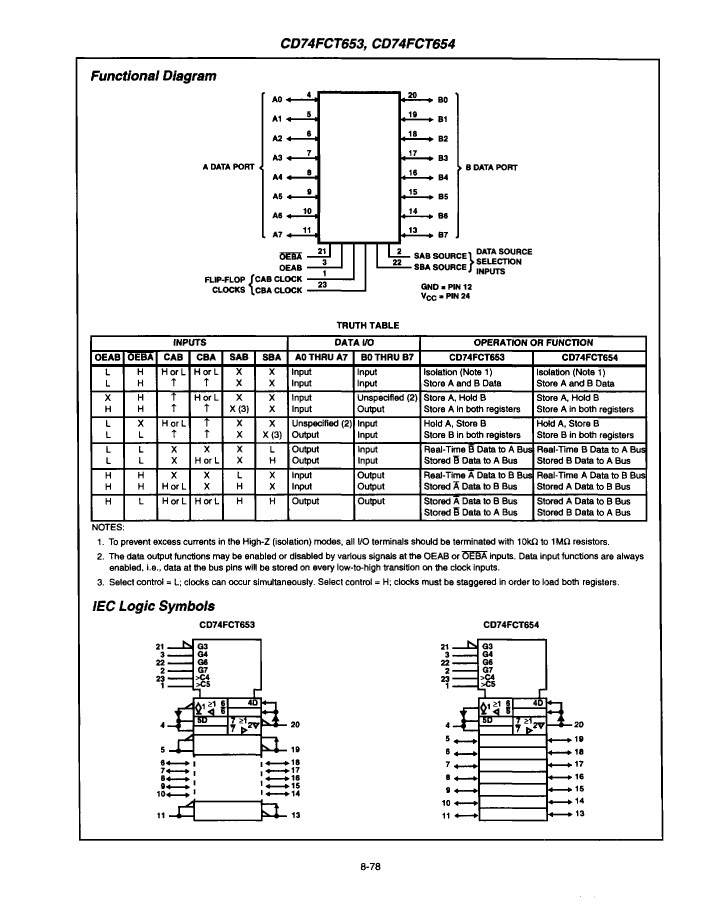

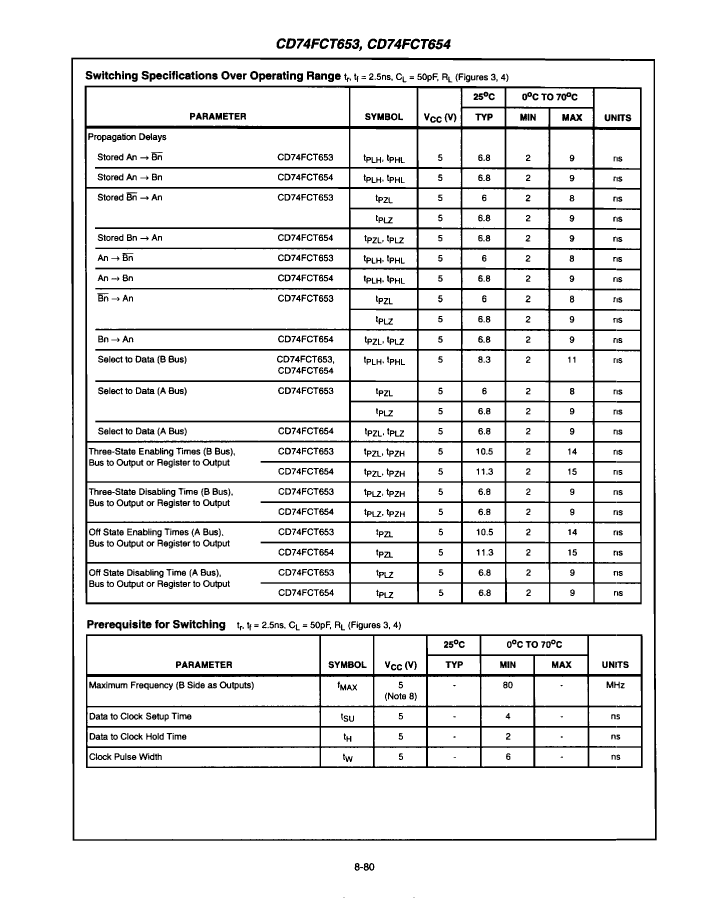

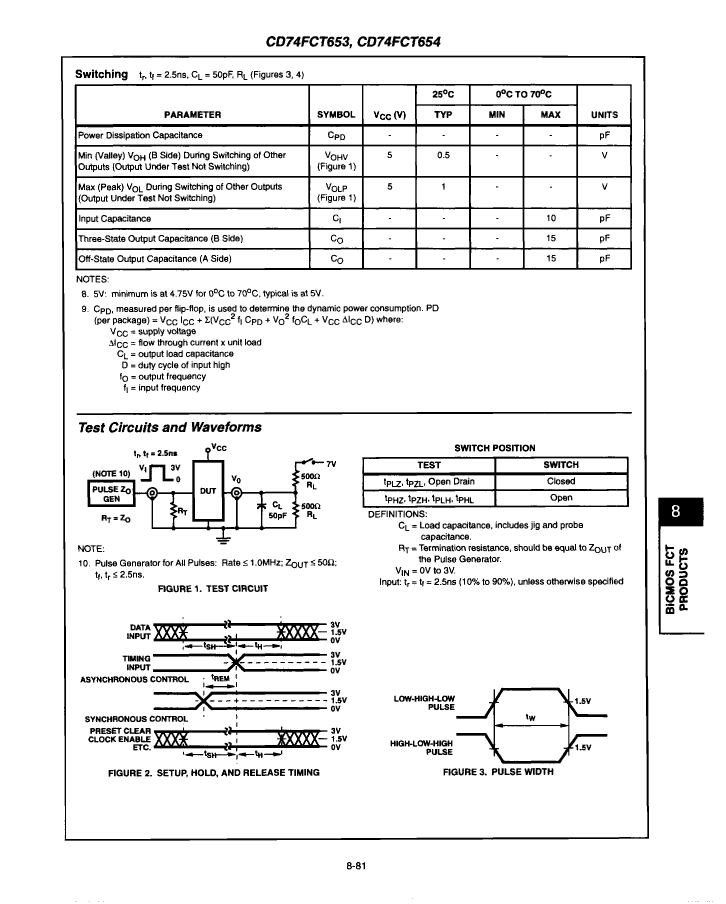

Preview

Download Datasheet

View All

CD74FCT653EN Related Products

	CD74FCT653EN	CD74FCT654M96	CD74FCT653M	CD74FCT653M96	CD74FCT654M	CD74FCT654EN
Description	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,DIP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SOP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SOP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SOP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,SOP,24PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,8-BIT,FCT/PCT-CMOS,DIP,24PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	_compli	not_compliant
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.064 A	0.064 A	0.064 A	0.064 A	0.064 A	0.064 A
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE
Output polarity	INVERTED	TRUE	INVERTED	INVERTED	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP	SOP	DIP
Encapsulate equivalent code	DIP24,.3	SOP24,.4	SOP24,.4	SOP24,.4	SOP24,.4	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Prop。Delay @ Nom-Sup	9 ns	9 ns	9 ns	9 ns	-	9 ns
package instruction	-	SOP, SOP24,.4	SOP, SOP24,.4	SOP, SOP24,.4	SOP, SOP24,.4	DIP, DIP24,.3
