2065-E00-C9005N datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2065-E00-C9005N

2065-E00-C9005N: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

2065-E00-C9005N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2065-E00-C9005N	-	-	View	Buy Now

2065-E00-C9005N Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

2065-E00-C9005N Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER COPPER
Contact completed and terminated	GOLD OVER COPPER
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2065
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

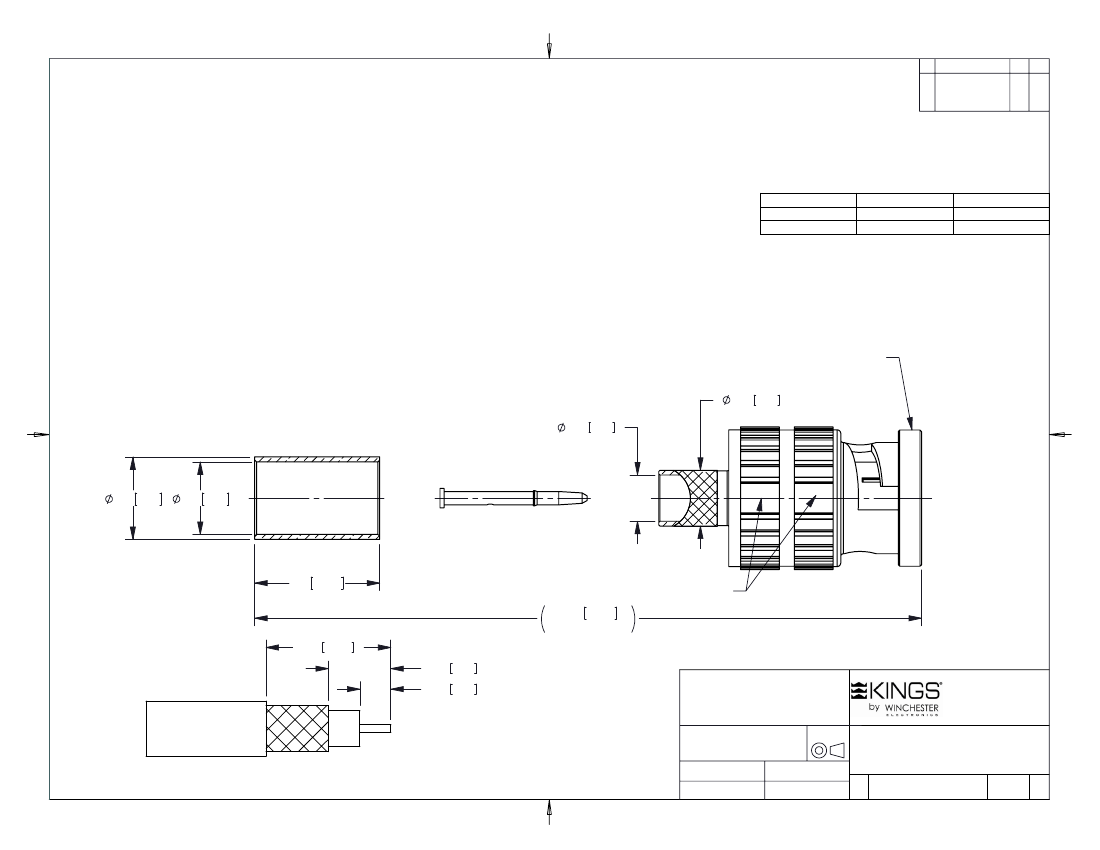

NOTES: UNLESS OTHERWISE SPECIFIED

1. FOR GENERAL SERIES SPECIFICATIONS, SEE SDPRF-206.

2. MATERIAL SPECIFICATIONS:

BAYONET SLEEVE, BODY, CONTACT,FERRULE : BRASS PER ASTM B16

INSULATOR: TEFLON PER ASTM D1710

SPRING WASHER, OUTER CONTACT: BERYLLIUM COPPER, ASTM-B-194

GASKET: SILICONE RUBBER

3. FINISH SPECIFICATIONS:

BAYONET SLEEVE, BODY: .000100MIN NICKEL PER AMS-QQ-N-290

OVER COPPER FLASH PER ASTM B734 (ROHS)

CONTACT: .000030 MIN. GOLD PER ASTM B488, OVER NICKEL PER AMS-QQ-N-290 (ROHS)

ALL OTHER METAL PARTS: .000050 MIN NICKEL PER AMS-QQ-N290 OVER

.000050 MIN COPPER PER ASTM B734 (ROHS)

4. CONTACT AND FERRULE SHIPPED LOOSE.

5. FOR USE WITH BELDEN CABLE 1694A OR EQUIVALENT.

6. FOR CRIMPING USE KINGS KTH-5000 & KTH-5017 OR KTH-1000 & KTH-2325 (.046AND .278 HEX CAVITY).

7. ASSEMBLE TO CABLE SEE 3-661-4.

8. THESE AREAS HAVE WHITE MARKING.

9. ELECTRICAL SPECIFICATIONS:

IMPEDANCE: 75 OHMS

FREQUENCY RANGE: DC TO 6 GHz

RETURN LOSS: UP TO 1.5GHz. <-31 dB

UP TO 3GHz. <-24 dB

UP TO 6GHz. <-20 dB

10. COMPLIANT TO SMPTE 424M (3G-SDI) SPECIFICATION.

.185 4.70

MARKING:

KINGS + 2065+CABLE CODE+

DATE CODE+LOCATION CODE

REV

DESCRIPTION

APPD

DATE

03/15/12

ER040866

P/N

2065-E00-C9005N

2065-E00-C9005NU

DESCRIPTION

SINGLE PACK

BULK PACK

QTY

100

.223 5.66

.330 8.38

.290 7.37

.500 12.70

1.267 32.18

WHEN ASSEMBLED

.624 15.85

.312 7.92

.155 3.94

SEE NOTE 8

CATALOG P/N: 2065-E00-C9005N

PER ASME Y14.5M-1994

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

DECIMAL: .XX [X.X] ± .01 [0.3]

.XXX [X.XX] ± .005 [0.13]

.XXXX [X.XXX] ± .XXXX

ANGLES: ± 2°

SCALE: 2.5:1

THIRD

ANGLE

Winchester Electronics Corporation

62 Barnes Industrial Road North

Wallingford, Connecticut 06492

CUSTOMER

SALES DRAWING

RECOMMENDED CABLE TRIM DIMENSIONS

DMF026 B

DRAWN

APPROVED

XXX

DATE APPROVED

03/03/09

CTC

DATE APPROVED

XX/XX/XX XXX

DATE

03/03/09

DATE

XX/XX/XX

BNC 75 OHM PLUG FOR

BELDEN 1694A OR EQUIVALENT

(ROHS COMPLIANT)

SD2065-E00-C9005N

SHT

REV

2065-E00-C9005N Related Products

	2065-E00-C9005N	2065-E00-C9005NU
Description	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF BNC Connector, 1 Contact(s), Cable Mount, Crimp Terminal, Locking, Plug
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Body/casing type	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Manufacturer's serial number	2065	2065-E00-C9005N
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz
Termination type	CRIMP	CRIMP
Base Number Matches	1	1
