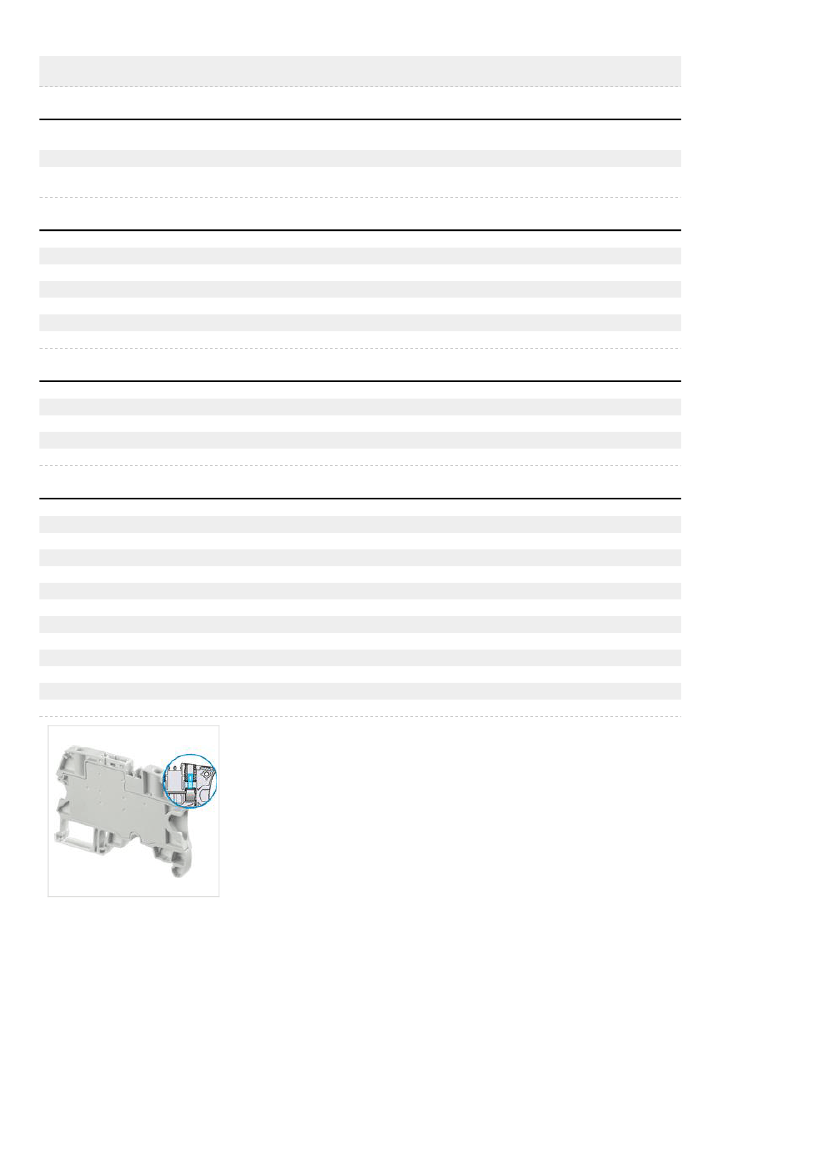

ZS4-SP-T2-R1
General Information
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
ZS4-SP-T2-R1
1SNK506314R0000
3472595063147
ZS4-SP-T2-R1 Screw Clamp Terminal Block - Disconnect with Plug - Grey - with 2 test
socket screws DIA 2 mm 0.079 in
- Ease your test operations with the 2 built-in test sockets DIA 2 mm 0.079 in, - Save time
with our screwless component holder plug, - Simplify the distribution between feed-through
and disconnect circuits thanks to the two aligned jumper channels.
Categories
Products
»
Low Voltage Products and Systems
»
Connection Devices
»
Terminal Blocks
»
SNK Series
Ordering
Minimum Order Quantity:
Customs Tariff Number:
Color:
50 piece
85369010
Grey
Dimensions
Product Net Height:
Product Net Length:
Product Net Depth:
Product Net Weight:
Product Net Width:
70.5 mm
47.3 mm
47.3 mm
14.2 g
6 mm
Technical
6 mm
Screw clamp
Disconnect
1
Screw Clamp / Flexible 1x 0.22 ... 4 mm²
Screw Clamp / Flexible 2x 0.2 ... 1.5 mm²
Screw Clamp / Rigid 1x 0.2 ... 4 mm²
Screw Clamp / Rigid 2x 0.2 ... 1.5 mm²
Screw Clamp / With Insulated Ferrrule 1x 0.22 ... 4 mm²
Screw Clamp / Without Insulated Ferrule 1x 0.22 ... 4 mm²
Screw Clamp / With Twin Ferrule 2x 0.22 ... 1.5 mm²
Gauge Type:
A3-B3
Rated Current (I
n
):
Main Circuit 18 A
Rated Short-time Withstand Current
for 1 s 300 A
(I
cw
):
Rated Voltage (U
r
):
400 V
Rated Impulse Withstand Voltage
6000 V
(U
imp
):
Dielectric Test Voltage:
1890 V
Pollution Degree:
3
Power Loss:
0.6 W
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Insulation Material:
Polyamide
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Wire Stripping Length:
10.5 mm
Recommended Screw Driver:
3.5 mm
Rated Cross-Section:
2.5 mm²
Spacing:
Connection Type:
Function:
Number of Levels:
Connecting Capacity Main Circuit:
Technical UL/CSA
Connecting Capacity Main Circuit
UL/CSA:
Screw Clamp / Flexible 1x 24 ... 10 AWG
Screw Clamp / Flexible 2x 24 ... 16 AWG
Screw Clamp / Rigid 1x 24 ... 10 AWG
Screw Clamp / Rigid 2x 24 ... 16 AWG
Screw Clamp / With Insulated Ferrrule 1x 24 ... 12 AWG
Screw Clamp / Without Insulated Ferrule 1x 24 ... 12 AWG
Screw Clamp / With Twin Ferrule 2x 24 ... 16 AWG
Stranded 10 AWG
Connecting Capacity UL/CSA:
Flammability According to UL94:
Maximum Operating Voltage
UL/CSA:
V0
Main Circuit 150 V
Environmental
Resistance to Vibrations acc. to IEC
Compliant
60068-2-6:
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ambient Air Temperature:
Operation -55 ... +110 °C
Storage -55 ... +110 °C
Certificates and Declarations (Document Number)
Instructions and Manuals:
CSA Certificate:
cUL Certificate:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
EAC Certificate:
RoHS Information:
1SNK160027C0201
1SND161070A0208
1SND161040A0206
1SNK161040D0201
1SND225102U1000
1SND161009A1100
1SND230491F0206
Classifications
E-nummer:
ETIM 4:
ETIM 5:
ETIM 6:
Object Classification Code:
2925943
EC000902 - (Knife) disconnect terminal block
EC000902 - (Knife) disconnect terminal block
EC000902 - (Knife) disconnect terminal block
X
Container Information
Package Level 1 Width:
Package Level 1 Length:
Package Level 1 Height:
Package Level 1 Gross Weight:
Package Level 1 EAN:
Package Level 2 Units:
Package Level 2 Width:
Package Level 2 Length:
Package Level 2 Height:
Package Level 2 Gross Weight:
Package Level 3 Units:
Product Packing Type:
Package Level 1 Units:
61 mm
339 mm
52 mm
0.705 kg
3472595063147
600 piece
300 mm
400 mm
200 mm
9.020 kg
28800 piece
Box
50 piece
