BR6143: DescriptionWide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size200KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR6143 Overview

Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B

BR6143 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	H2, TO-8B
Reach Compliance Code	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	14.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR6143 / SBR6143*

* Part number for additional environmental screening.

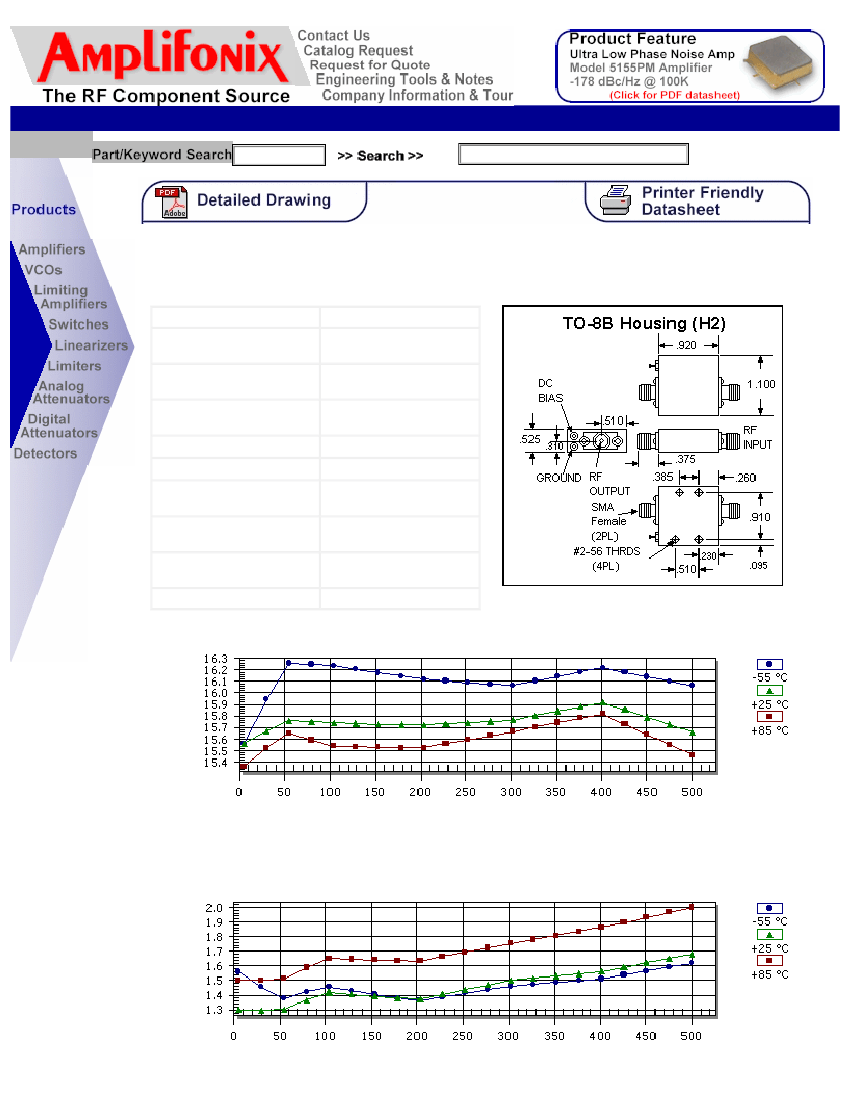

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 500.0 MHz

15.7 dB Typical

14.5 dB Min

1.6 dB Typical

2.5 dB Max

7.5 dBm Typical

5.0 dBm Min

20.0 dBm Typical

28.0 dBm Typical

1.7/2.5 Input Typ/Max

1.6/2.5 Output Typ/Max

-19.0 dB Typical

-16.0 dB Min

15.0 Volts

14.5 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR6143 Related Products

	BR6143	SBR6143
Description	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B	Wide Band Low Power Amplifier, 5MHz Min, 500MHz Max, H2, TO-8B
Maker	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	14.5 dB	14.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5	2.5
Base Number Matches	1	1
