Broadband Frequency Doubler,

150 - 3000 MHz Output

V 3.00

FM-104

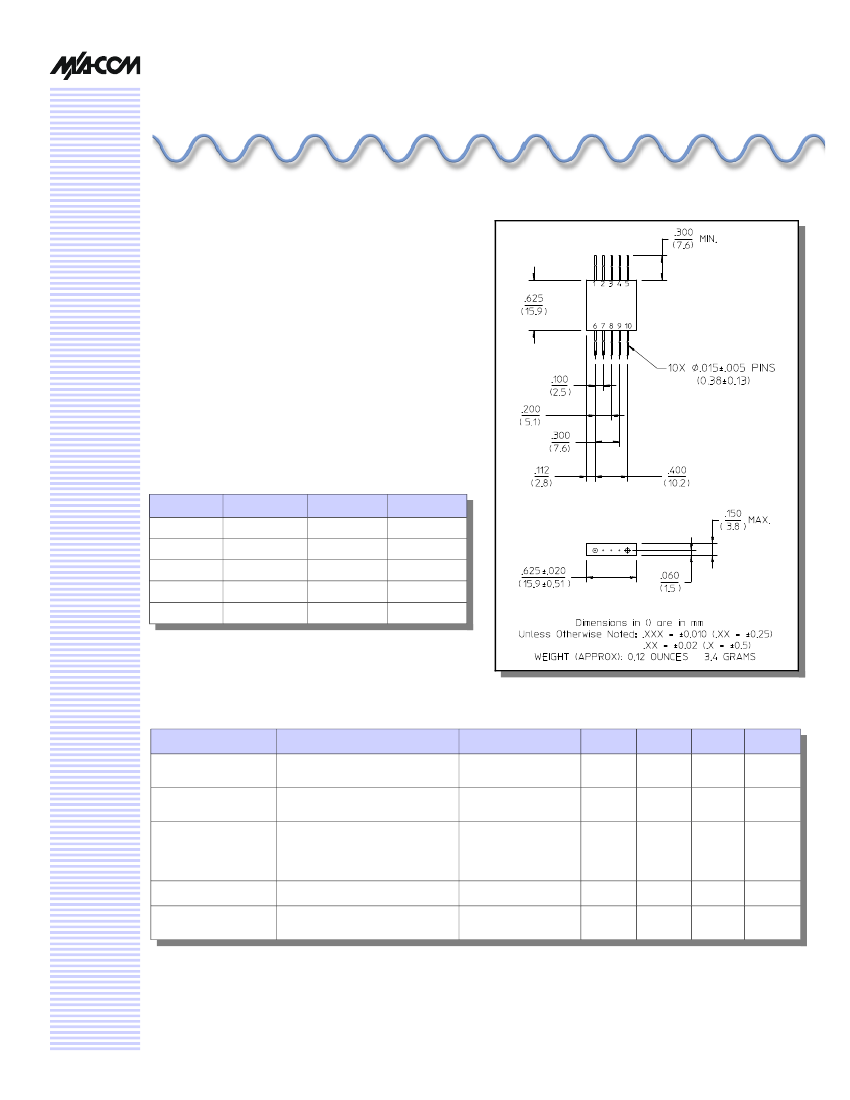

Features

n

FP-3

Hermetic Flatpack

Multioctave Frequency Coverage

Conversion Loss: 10 dB Midband

Impedance: 50 Ohms Nominal

Maximum Input Power: 300 mW Max.

MIL-STD-202 Screening Available

Description

A transmission line balun transformer connects to Schottky

diodes arranged in a bridge configuration. This design

allows balanced activation of all diodes, and yields

excellent conversion loss, and odd-order term suppression.

Pin Configuration

Pin No.

1

2

3

4

5

Function

GND

Input

GND

Pin No.

6

7

8

9

10

Function

GND

Output

GND

Electrical Specifications

1

: T

A

= -55°C to +85°C

Parameter

Frequency Range

Conversion Loss

Spurious (Referred to

Output F

2

Level)

F

1

F

3

VSWR

Conversion Loss as

Quadrupler

Input

—

Test Conditions

Input

Output

Frequency

75 - 1500

150 - 3000

75 - 1000 MHz

1000 - 1500 MHz

75 - 1000 MHz

1000 - 1500 MHz

225 - 3000 MHz

3000 - 4500 MHz

—

Units

MHz

dB

Ratio

dB

Min

—

20

17

20

17

—

Typ

—

<2.5:1

26

Max

—

12

14

—

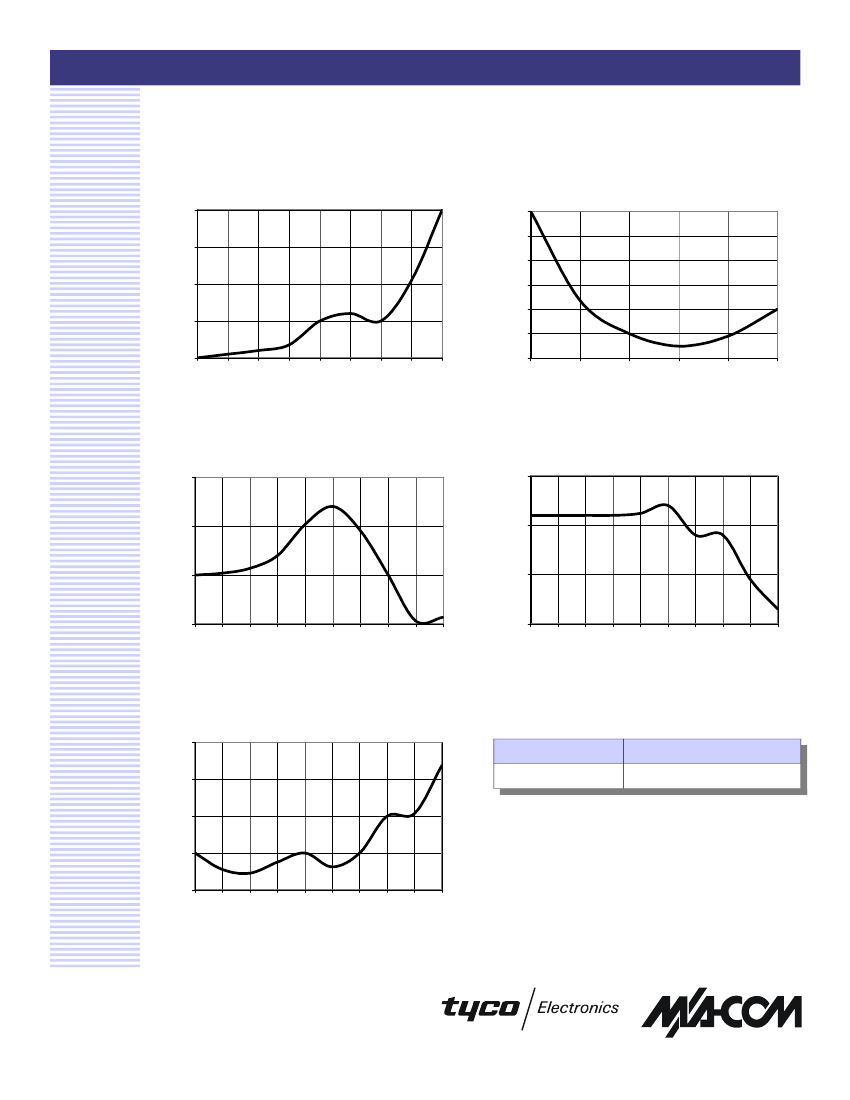

1. All specifications apply when operated at +13 dBm input power with 50 ohm source and load impedance.
