TECHNICAL DATA SHEET
ADAPTOR
SMA JACK - JACK
32K101-KH0E3

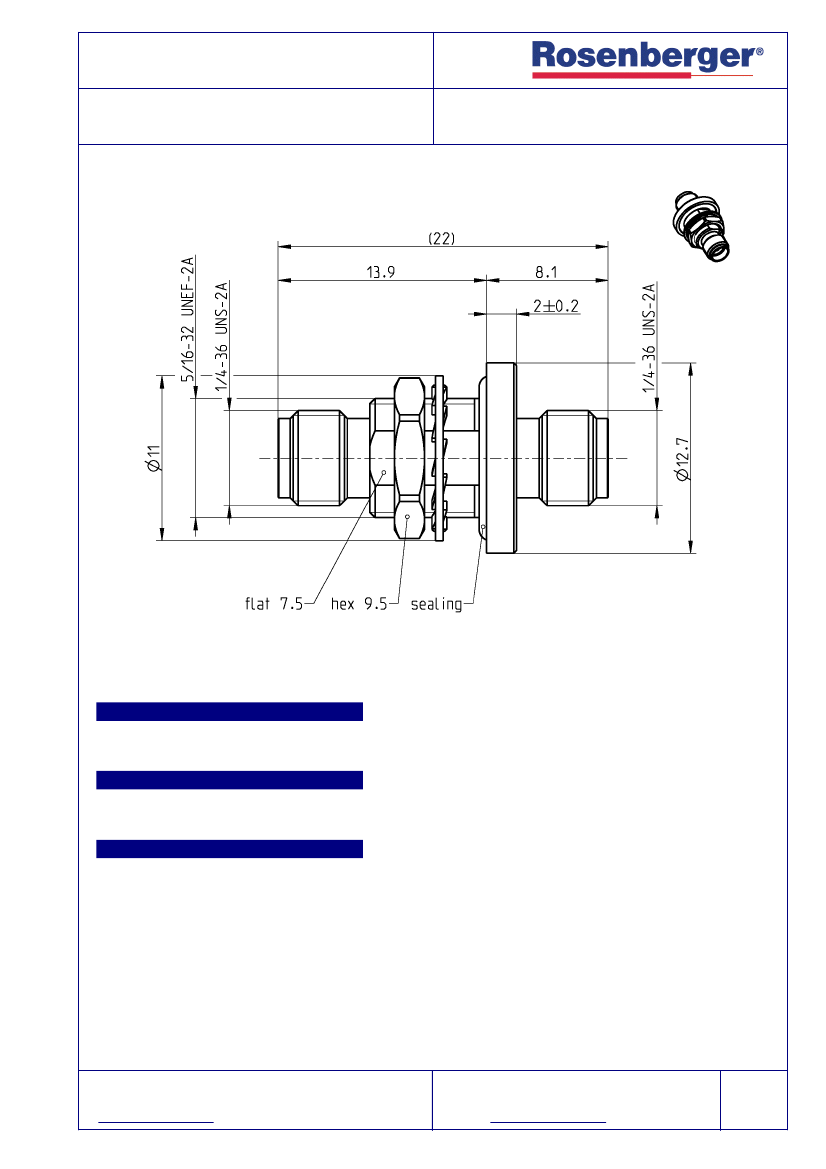

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
Documents
Panel piercing
B 58
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Gasket
Glass seal
Material
Plating
Beryllium copper Gold, min. 1.27 m, over nickel
Beryllium copper Gold, min. 0.8 m, over nickel
PTFE
Silicone
Glass
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
SMA JACK - JACK
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
50
Ω
DC to 18 GHz
≤
1.12 + 0.018 x f [GHz]
≤
0.03 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
32K101-KH0E3
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
min. 500
≥
27 N
≥
1 Ncm
max. 1.7 Nm
0.8 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Leakage rate
Pressure
-55°C to +125°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
≤
10
-8
mbar x l/s
2 N/mm
2
max.
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
50 pcs in box
6.49 g/pce
