A-D-S-25-PP-Z: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric Compare View All

A-D-S-25-PP-Z Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .115-.125, Receptacle

A-D-S-25-PP-Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ASSMANN
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.161 inch
body length	2.089 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS/PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.181 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

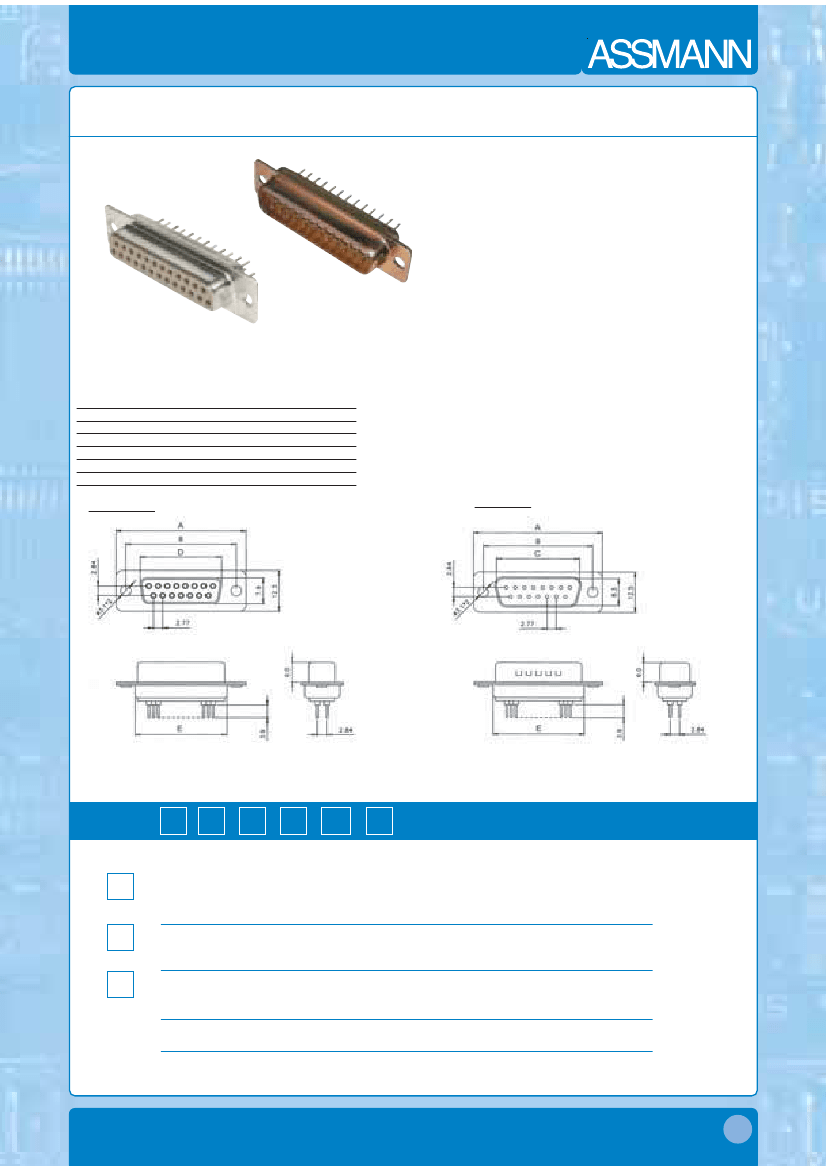

D-SUB

D-Sub-Steckverbinder,

gerade für PCB Montage

D-Sub-connectors,

straight for PCB assembly

Kontakte

Messing ( Stecker )

Phosphorbronze (Buchse)

Isolierkörper

PBT, UL94V-0

Gehäuse

Stahl

Betriebstemperaturbereich

-55°C bis +105°C

Stromnennbelastung

3A

Contacts

Brass (Male)

Phosphorbronze (Female)

Insulator

PBT, UL94V-0

Shell

Steel

Operating temperature

-55°C to +105°C

Current rating

3A

No. of contacts

09

15

25

37

Buchse / Female

Dimensions

A

30.8

39.2

53.1

69.4

B

25.0

33.3

47.1

63.5

C

16.92

25.50

38.96

55.42

D

16.33

44.66

38.38

54.84

E

19.2

27.7

41.1

57.3

Stecker / Male

Bestellcode :

Ordercode :

A - D - x - x - PP - x

1.

2.

3.

Bitte „x“ durch die unten geeignete Option ersetzen

Please replace „x“ with appropriate option listed below

1.

Ausführung

F

-Buchse

S

-Stecker

Polzahl

09, 15, 25, 37, 50

Gehäuse

-

-Gehäuse gelb chromatiert

Z

-Gehäuse verzinnt*

Version

F

-Female

S

-Male

No. of contacts

09, 15, 25, 37, 50

Shell

-

Z

2.

3.

-shell yellow chromated

-shell tinned*

Standard: Anforderungsstufe III

Andere Gütestufen auf Anfrage

Standard: Quality class III

Other requirement levels on request

*Standard

Befestigungsbolzen auf Seite 43

Locking bolts on page 43

21
