8-1617349-6: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.075A (COIL), 12VDC (COIL), 900mW (COIL), 10A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size114KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

8-1617349-6 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.075A (COIL), 12VDC (COIL), 900mW (COIL), 10A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

8-1617349-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum coil current (DC)	0.075 A
Coil power	900 mW
Coil resistance	160 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact/Output Power Type	AC/DC
Manufacturer's serial number	1617349
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Relays

Product Feature Selector

> Product Details

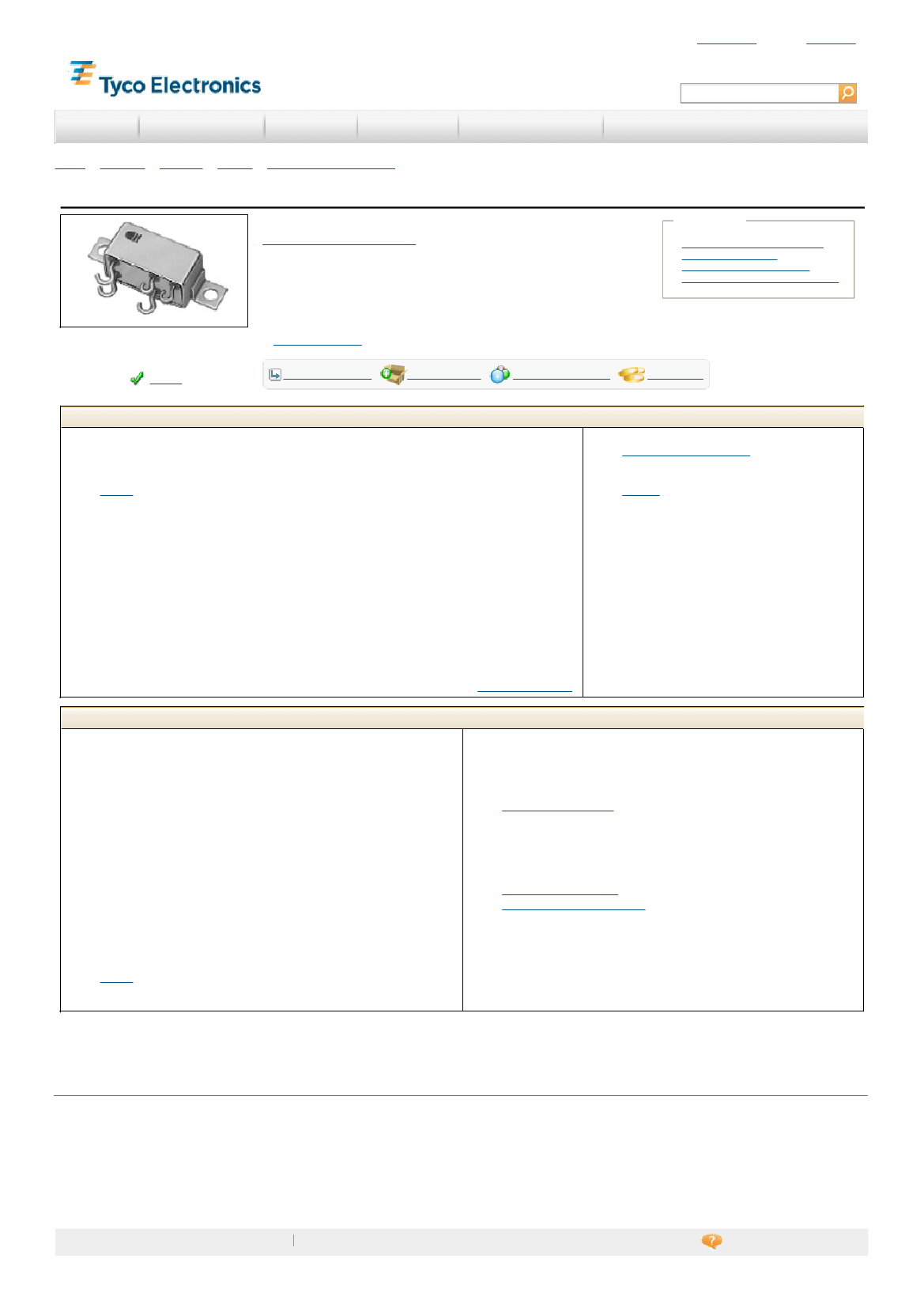

CAW-1C-12B Product Details

Military/Aerospace High Performance Relays

Not EU R oHS or ELV C om plia nt

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

CAW-1C-12B

(8-1617349-6)

T E I nternal N umber: 8 - 1 6 1 7 3 4 9 - 6

Product Highlights:

C Half-Size Relay Series

Input Voltage = 12 VDC

C ontact Arrangement = 1 Form C , SPDT, 1 C /O

C ontact C urrent Rating = 10 Amps.

Non Polarized, Monostable C oil Magnetic System

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Active

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

RELAY

(PDF, English)

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Termination Type = PC Pins

Electrical Characteristics:

Input Voltage (VDC ) = 12

C ontact C urrent Rating (Amps.) = 10

C oil Polarity Protection Diode = Without

Transistor Driver = Without

C oil Resistance (?) = 160

MOSFET Driver = Without

C oil Power Measurement = Milliwatts

C oil Power, Nominal (mW) = 900

Actuating System = DC

Shock = 100G's, 6ms

Vibration = 20G's, 10 to 2000Hz

Body Related Features:

Series

= C Half-Size Relay

Contact Related Features:

Mounting Options = PC Board

Enclosure = Hermetically Sealed

Configuration Related Features:

C ontact Arrangement

= 1 Form C , SPDT, 1 C /O

C oil Magnetic System = Non Polarized, Monostable

C oil Suppression Diode = Without

Industry Standards:

Government/Industry Qualification = No

RoHS/ELV C ompliance

= Not ELV/RoHS compliant

Lead Free Solder Processes

= Not suitable for lead free processing

Conditions for Usage:

Temperature Range (?C ) = -65 – +125

Other:

Brand = C II

Additional Information:

Product Line Information

8-1617349-6 Related Products

	8-1617349-6	CAW-1C-12B
Description	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.075A (COIL), 12VDC (COIL), 900mW (COIL), 10A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.075A (COIL), 12VDC (COIL), 900mW (COIL), 10A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum coil current (DC)	0.075 A	0.075 A
Coil power	900 mW	900 mW
Coil resistance	160 Ω	160 Ω
Maximum coil voltage (DC)	12 V	12 V
Coil/Input Power Type	DC	DC
Maximum contact current (AC)	10 A	10 A
Maximum contact current (DC)	10 A	10 A
Contact/Output Power Type	AC/DC	AC/DC
Manufacturer's serial number	1617349	C
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
Relay action	MOMENTARY	MOMENTARY
Relay function	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
seal	HERMETICALLY SEALED	HERMETICALLY SEALED
surface mount	NO	NO
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
