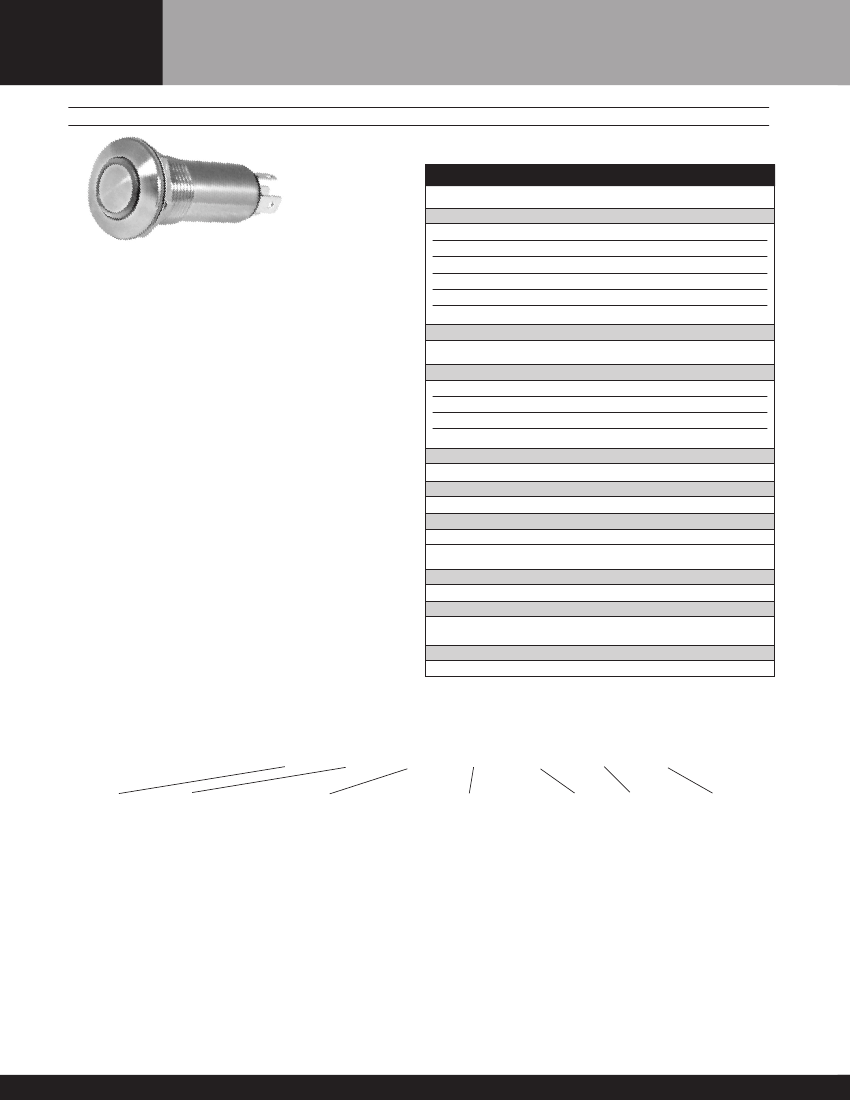

LP5-V
ILLUMINATED
VANDAL RESISTANT
PUSHBUTTONS
ILLUMINATED VANDAL RESISTANT PUSHBUTTONS
ALTERNATE ACTION RING ILLUMINATED, STAINLESS STEEL CASE & BUTTON
Standard Characteristics/Ratings:
High Profile
Curved Button
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Motor
DWV
Low Level
Electrical Life:
Sea Level @ 28VDC or 115VAC, 60/400Hz
5A
3A
1A
3A
1050Vrms
10mA @ 30mV
25,000 cycles
The LP5-V series is an alternate action switch that has been
designed to provide attractive, lighted position indication for
applications in harsh environments, where security and reliability
are paramount. The series features both aluminum and stainless
steel cases watertight to IP68S. Momentary action is available in
the LP3-V series.
This high reliability switch offers the durability and ruggedness
our customers have come to expect with the added benefit of
illumination. Ideal for marine, off-highway and industrial control
applications that require an illuminated switch.
This switch offers positive tactile feedback, less than 25mΩ
contact resistance, and a variety of LED colors available in both
flat and domed actuator bezel shapes.
LIGHTING:
Light Source Voltage (DC)
2
6
12
24
Mechanical Life:
Seal:
200,000 cycles
IP64 or IP68S
3.0 lbs. +1.0/-0.5 lb.
0.180 inches max
0.012 inches min
Actual Voltage Nominal (DC)
2
7
13.5
28
Voltage Max (DC)
2.6
8
14.5
28.6
Operating Temp Range:
-55°C to +85°C
Features:
• Security (aluminum) or vandal resistant
(stainless steel) case & button
• Ring illuminated
• Watertight to IP68S
• RoHS & WEEE compliant
• Less than 25mΩ contact resistance
• Variety of button options
• Variety of LED colors
• Drop in replacement to the P5-V series
• UL component recognized
• UL1500 ignition protected
LP5
Type
A.
Aluminum
V.
Stainless
Operating Force:
Total Travel:
Overtravel:
MATERIALS:
Case:
Button:
Center Cap:
Terminals:
Mounting Hardware:
Stainless steel
Thermoplastic
Stainless steel or aluminum
Standard silver plate with optional gold plating
for low level applications
Hex nut, lockwasher and panel seal gasket
LP5-V PART NUMBER CODE
–
X
X
Circuit Rating
0.
Indicator Light
1.
SPST/Std.
2.
SPDT/Std.
3.
SPST/Low Level
4.
SPDT/Low Level
X
X
Light Source Type*
w/ Rev. Pol Protection
A.
2V Red LED
B.
2V Green LED
C.
2V Amber LED
D.
6V Red LED
E.
6V Green LED
F.
6V Amber LED
G.
12V Red LED
H.
12V Green LED
J.
12V Amber LED
K.
24V Red LED
L.
24V Green LED
M.24V
Amber LED
N.
2V Blue LED
P.
6V Blue LED
Q.
12V Blue LED
R.
24V Blue LED
X
Seal Level
2.
Dusttight
3.
Watertight
X
X
Case/Center
Cap Color
1.
Silver
2.
Black**
Case Style
1.
2.
3.
4.
5.
6.
7.
8.
5/8-24 & Hex Nut
5/8-24 & Knurl Nut
5/8-24 W/D–Flat & Hex Nut
5/8-24 W/D–Flat & Knurl Nut
3/4-20 & Hex Nut
3/4-20 & Knurl Nut
3/4-20 W/D–Flat & Hex Nut
3/4-20 W/D–Flat & Knurl Nut

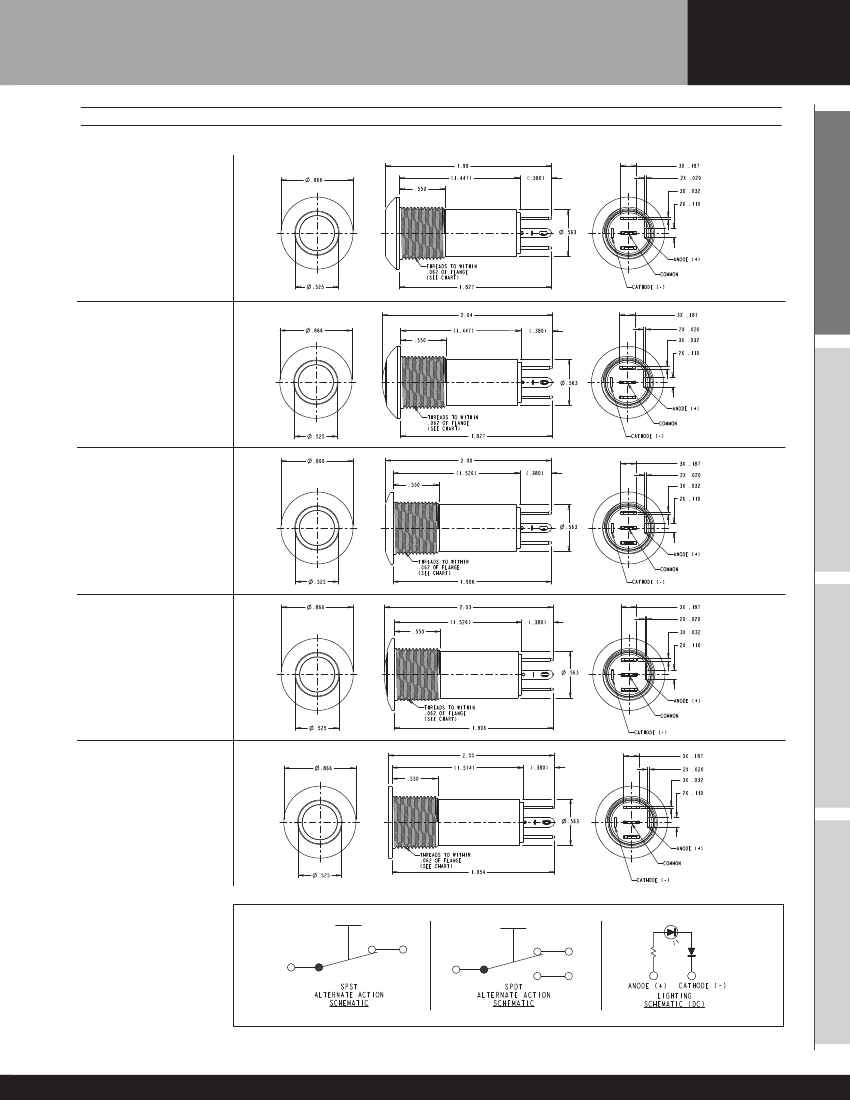

Button Profile
1.
High Profile
Flat Button
2.
High Profile
Curved Button
3.
Low Profile
Flat Button
4.
Low Profile
Curved Button
5.
Flush Profile
Flat Button
* For additional LED lighting options, contact factory.
** Only available on LP5-A styles.
64
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
