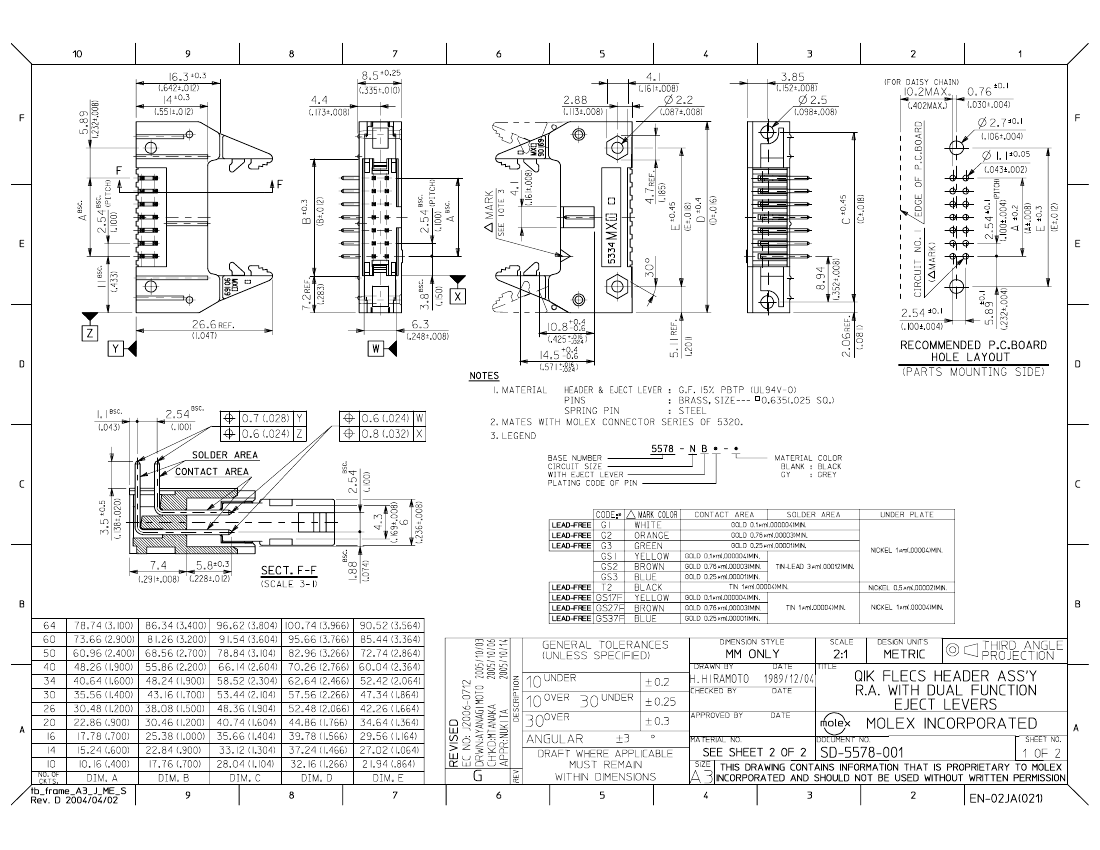

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

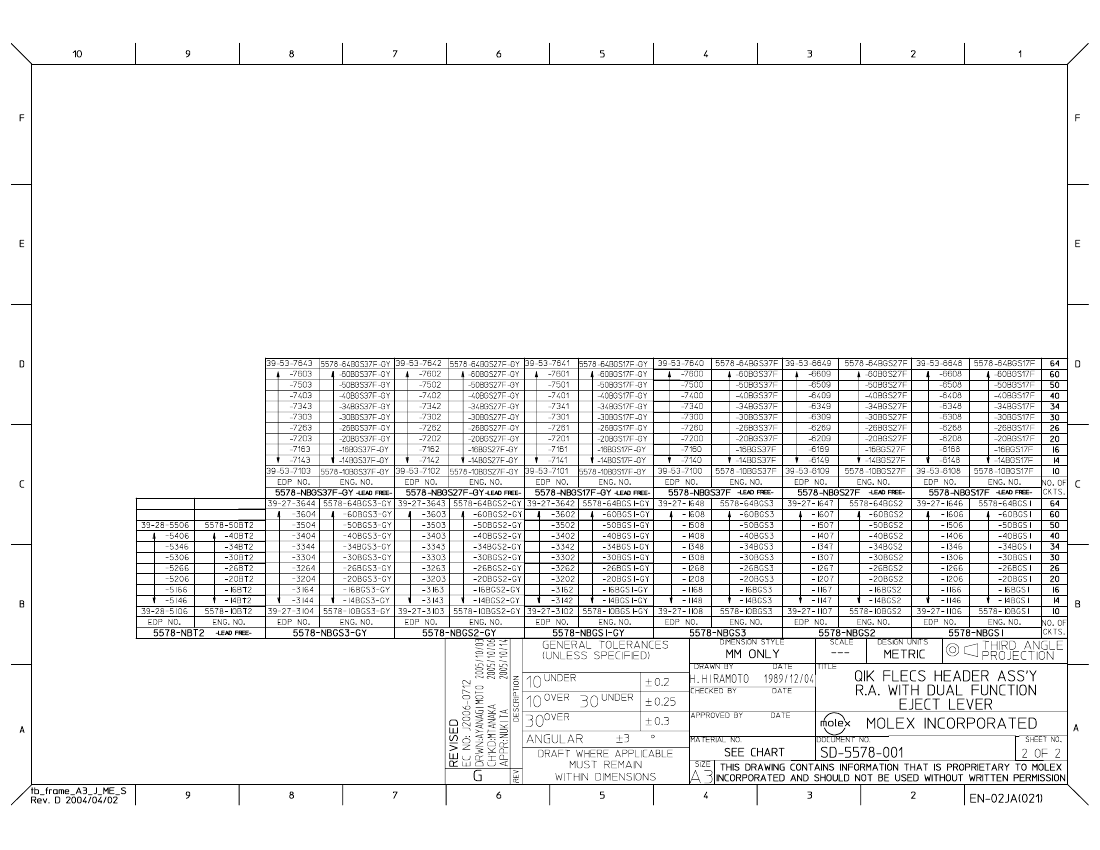

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED, SHROUDED |
| Board mount options | HOLE .099-.111 |
| body width | 0.335 inch |
| subject depth | 0.642 inch |
| body length | 3.266 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (4) OVER NICKEL |
| Contact completed and terminated | GOLD (4) OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 5.7824 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | 5578 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LATCH & EJECT |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 4u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.138 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 50 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .7784 N |
| Base Number Matches | 1 |
| 39-27-1506 | 39-27-1646 | 39-27-1166 | 39-27-1266 | 39-27-1106 | 39-27-1346 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal | Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | POLARIZED, SHROUDED | POLARIZED, SHROUDED | POLARIZED, SHROUDED | POLARIZED, SHROUDED | POLARIZED, SHROUDED | POLARIZED, SHROUDED |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (4) OVER NICKEL | GOLD (4) OVER NICKEL | GOLD (4) OVER NICKEL | NOT SPECIFIED | GOLD (4) OVER NICKEL | GOLD (4) OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | NOT SPECIFIED | BRASS | BRASS |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 5578 | 5578 | 5578 | 5578 | 5578 | 5578 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 50 | 64 | 16 | 26 | 10 | 34 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Board mount options | HOLE .099-.111 | HOLE .099-.111 | HOLE .099-.111 | HOLE .099-.111 | - | HOLE .099-.111 |
| body width | 0.335 inch | 0.335 inch | 0.335 inch | 0.335 inch | - | 0.335 inch |
| subject depth | 0.642 inch | 0.642 inch | 0.642 inch | 0.642 inch | - | 0.642 inch |
| body length | 3.266 inch | 3.966 inch | 1.566 inch | 2.066 inch | - | 2.466 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | - | RECEPTACLE |
| Contact completed and terminated | GOLD (4) OVER NICKEL | Gold (Au) - with Nickel (Ni) barrier | GOLD (4) OVER NICKEL | - | Gold (Au) - with Nickel (Ni) barrier | GOLD (4) OVER NICKEL |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | - | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | - | 500VAC V |
| maximum insertion force | 5.7824 N | 5.7824 N | 5.7824 N | 5.7824 N | - | 5.7824 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | - | BLACK |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER |
| JESD-609 code | e4 | e4 | e4 | - | e4 | e4 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Installation option 1 | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | - | LATCH & EJECT |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | - | LOCKING |
| Number of connectors | ONE | ONE | ONE | ONE | - | ONE |
| PCB row number | 2 | 2 | 2 | 2 | - | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | - | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | - | -40 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm |
| Plating thickness | 4u inch | 4u inch | 4u inch | 4u inch | - | 4u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | - | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | - | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | - | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | - | 0.138 inch |
| Evacuation force-minimum value | .7784 N | .7784 N | .7784 N | .7784 N | - | .7784 N |
