IBEK
€
www.ibek.ch
Single & double outputs
Input to output isolated
•
•
•
•
•
•
•
•
•
5/6 Watt
DC-DC-Converter
Family ICR5/6
Input voltage tolerance +10%/-7%
Efficient Pi-input filter
Linear regulated output voltages
Extremely low output voltage noise
Optimal dynamic response
Continuous no-load and short-circuit proof
Extended ambient temperature range -40…+85‚C
Made in Switzerland, accordingly ISO 9001:2000
2 years warranty
Standard Types
3
Single output
xx ICR5-05-TC
4
xx ICR6-12-TC
4
xx ICR6-15-TC
4
Input voltage
VDC
4.65…5.50
(nominal 5)
11.16…13.20
(nominal 12)
13.95…16.50
(nominal 15)
22.32…26.40
(nominal 24)
26.04…30.80
(nominal 28)
44.64…52.80
(nominal 48)
Output
VDC
mA
5
12
15
1000
500
400
Electromagnetic emission EN 55022 < B
Conducted and radiated emissions
5 ICR
12 ICR 15 ICR 24 ICR 28 ICR
48 ICR
No load input current
150
65
45
40
35
30
mA max.
Switching frequency
30 kHz typ.
Output voltage accuracy
€ 0.5%
Static line regulation
€ 0.05% typ.
Static load regulation FL to NL
0…0.1% typ.
Dynamic load regulation
€ 50 mV max.
1
Load transient recovery time
20
s
typ.
1
Output voltages noise (20 MHz BW) 35 mVpp max., 1 mVrms max.
Efficiency
68% to 76% typ.
I/O Electric strength test voltage
700 VDC
Coupling capacitance
70 pF typ.
Ambient temperature range
-T: -25…+71‚C;
-S: -40…+85‚C
2
Case temperature range
-T: -25…+95‚C;
-S: -40…+105‚C
Storage temperature range
-T: -55…+105‚C; -S: -55…+105‚C
Case material
Metal with plastic bottom cover, UL94 V-0 rated
MTBF, GB @ 40‚C case
1.850.000 hours
(MIL-HDBK-217F, Notice 2)
Double output
xx ICR 6-1212-TC
4
xx ICR 6-1515-TC
4
€ 12
€ 15
€ 250
€ 200
3
To complete type number replace "xx" by the required
nominal input voltage, e.g. 5 ICR6-1212-TC.
4
To specify pin configuration B replace C by B,
e.g. 5 ICR6-1212-TB.
Extended temperature range -S is available for all types.
Replace -T by -S on type number, e.g. 5 ICR6-1212-SC.
Modifications and customs are available upon request.
1
For
2
ICR6:
100% load variation with a rise/fall time of
50
s
Power derating from 6W to 5W for 71‚C to 85‚C
Pin
1
2
3
4
5
Pin Configuration: B

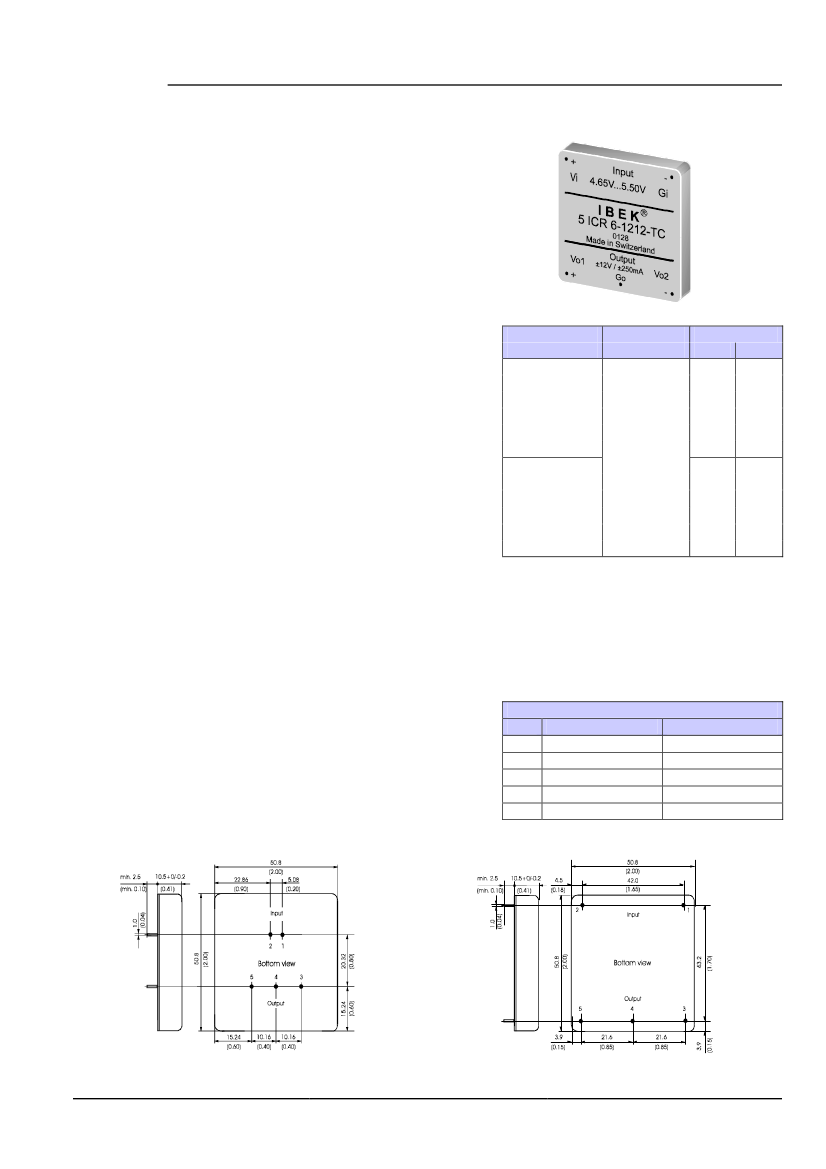

Dimensions in mm (inches)
Pin Configuration: C
Pin Configuration
Single output
Double output
+Vi
+Vi
-Gi
-Gi
+Vo
+Vo
No Pin
Go
-Go
-Vo
Specifications subject to change without notice
20.07.2004
More power with IBEK
€
!
Page 27.6
