IH5043CPE datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> IH5043CPE

Preview

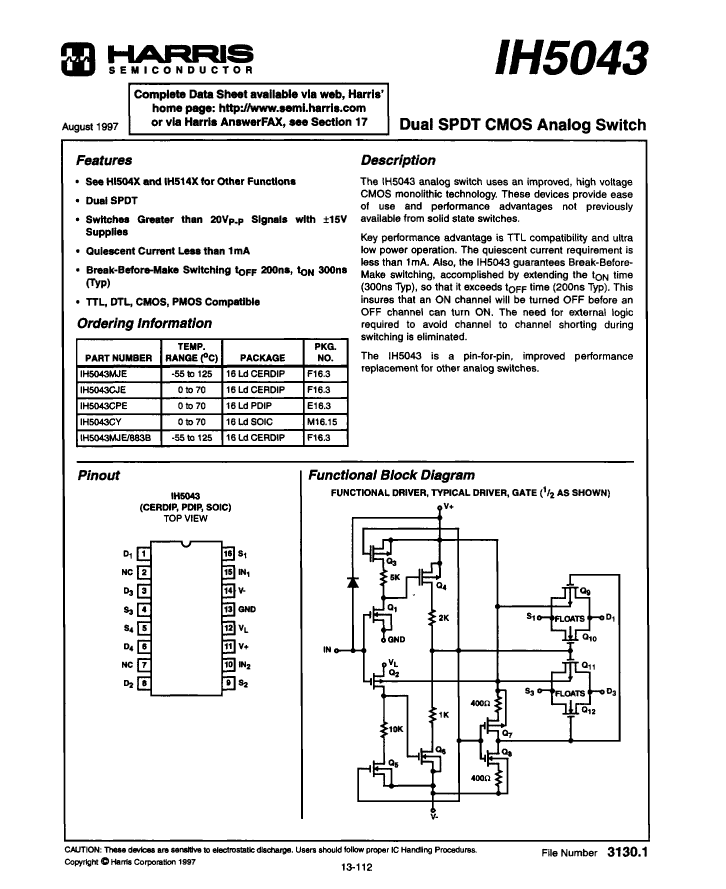

IH5043CPE: DescriptionSPDT, 2 Func, 1 Channel, CMOS, PDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size39KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

IH5043CPE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IH5043CPE	-	-	View	Buy Now

IH5043CPE Overview

SPDT, 2 Func, 1 Channel, CMOS, PDIP16,

IH5043CPE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	30 Ω
Maximum on-state resistance (Ron)	80 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

IH5043CPE Related Products

	IH5043CPE	IH5043CJE	IH5043CY	IH5043MJE	IH5043MJE/883B
Description	SPDT, 2 Func, 1 Channel, CMOS, PDIP16,	SPDT, 2 Func, 1 Channel, CMOS, CDIP16	SPDT, 2 Func, 1 Channel, CMOS, PDSO16,	SPDT, 2 Func, 1 Channel, CMOS, CDIP16	SPDT, 2 Func, 1 Channel, CMOS, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris	Harris
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.4	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPDT	SPDT	SPDT	SPDT	SPDT
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-PDSO-G16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1	1
Number of functions	2	2	2	2	2
Number of terminals	16	16	16	16	16
Nominal off-state isolation	50 dB	50 dB	50 dB	54 dB	54 dB
On-state resistance matching specifications	30 Ω	30 Ω	30 Ω	25 Ω	25 Ω
Maximum on-state resistance (Ron)	80 Ω	80 Ω	80 Ω	75 Ω	75 Ω
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.4	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	NO	NO
Maximum disconnect time	500 ns	500 ns	500 ns	500 ns	500 ns
Maximum connection time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
