HQF
CONNECTOR
2.0mm
(.079") pitch
Hinge type Board - to - board Connectors
Features –––––––––––––––––––––––

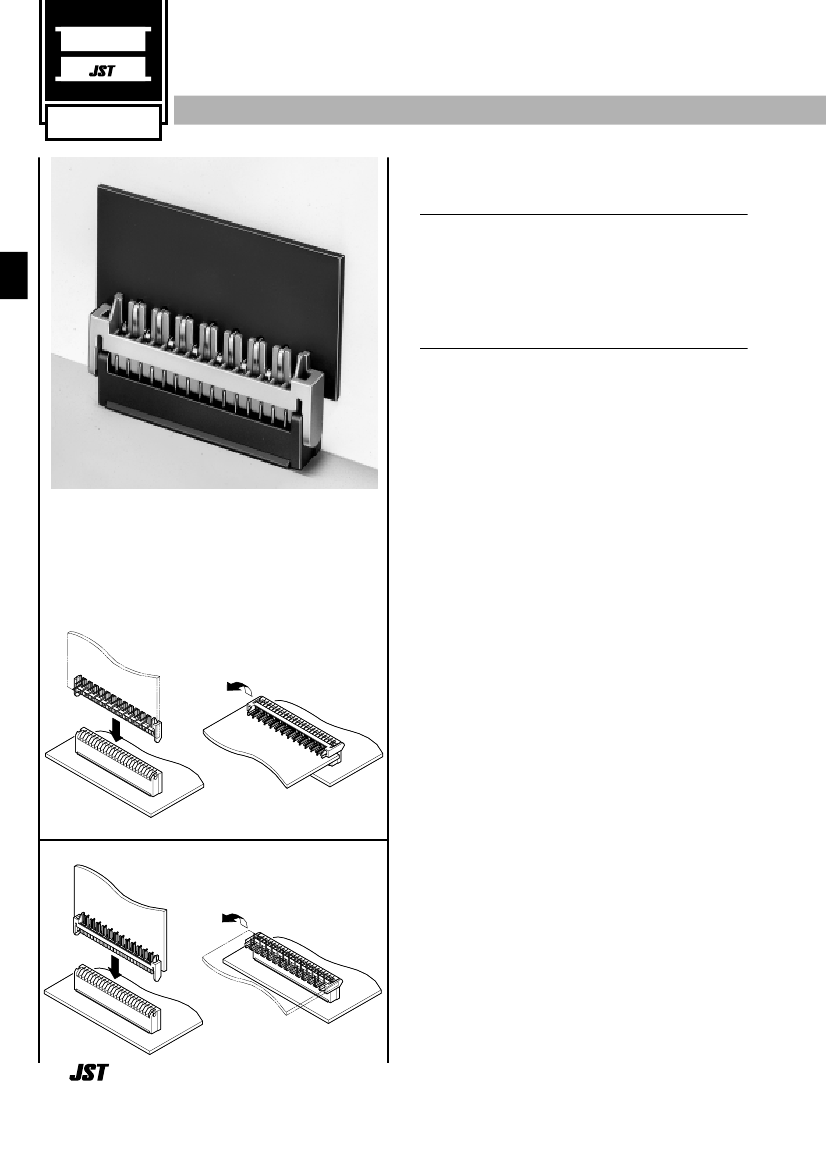

• Hinged connection
With hinge construction, the HQF connector features
flexibility. Thus this board to board connector allows mated
PCB's to move 90˚ in respect to one another while electricity is
turned on. Circuit checks can be made in any rotational
position.
• Flexible connection absorbs slight
misalignments between boards
Securely connected even if the adjoining boards are laterally
out of line.
Hinge type board to board connectors
which allow mated PCB's to move 90° in
respect to one another while electricity is
turned on. The hinge compensates for
slight misalignments between circuit
boards to assure a secure connection
even if the boards are laterally out of line.
Normal
connection
Specifications ––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/40m
Ω
max.
After environmental testing/80m
Ω
max.
• Insulation resistance:
500M
Ω
min.
• Withstanding voltage: 500V AC/minute
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
Standards –––––––––––––––––––––
Reverse
connection
262
0
1
Recognized E60389
Certified LR20812
HQF
CONNECTOR
Plug ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
B
6.5(.256)
2.0(.079)
2.0(.079)
Type
Standard
9.5(.374)
[12.5(.492)]
Circuits
15
15
Model No.
15P-HQF-E
15PL-HQF
25PL-HQF
35PL-HQF
Dimensions mm(in.)
A
28.0(1.102)
28.0(1.102)
48.0(1.890)
68.0(2.677)
B
34.0(1.339)
34.0(1.339)
54.0(2.126)
74.0(2.913)
C
34.4(1.354)
34.4(1.354)
54.4(2.142)
74.4(2.929)
Q'ty /
box
275
275
175
125
Long
25
35
0.3(.012)
Material and Finish
3.4
(.134)
Contact: Phosphor bronze, tin-plated
Housing: Glass-filled Nylon 66, UL94V-0
Circuit No.1
2.0(.079)
0.5(.020)
1.0(.039)
4.0
(.157)
7.0
(.276)
Note: 35PL-HQF is not UL recognized nor CSA certified.
A
C
Dimensions in
[
]
are for long type products.
Receptacle–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
B
13.5(.531)
11.0(.433)
Circuits
15
3.2
4.3
(.126) (.169)
Model No.
15R-HQF
25R-HQF
35R-HQF
Dimensions mm(in.)
A
28.0(1.102)
48.0(1.890)
68.0(2.677)
B
34.0(1.339)
54.0(2.126)
74.0(2.913)
C
37.0(1.457)
57.0(2.244)
77.0(3.031)
Q'ty /
box
220
140
100
4.0
(.157)
25
35
Material and Finish
Contact: Phosphor bronze, tin-plated
Housing: Glass-filled Nylon 66, UL94V-0
2.0(.079)
Circuit No.1
2.0(.079)
4.0
(.157)
9.0(.354)
A
C
4.0
(.157)
Note: 35R-HQF is not UL recognized nor CSA certified.

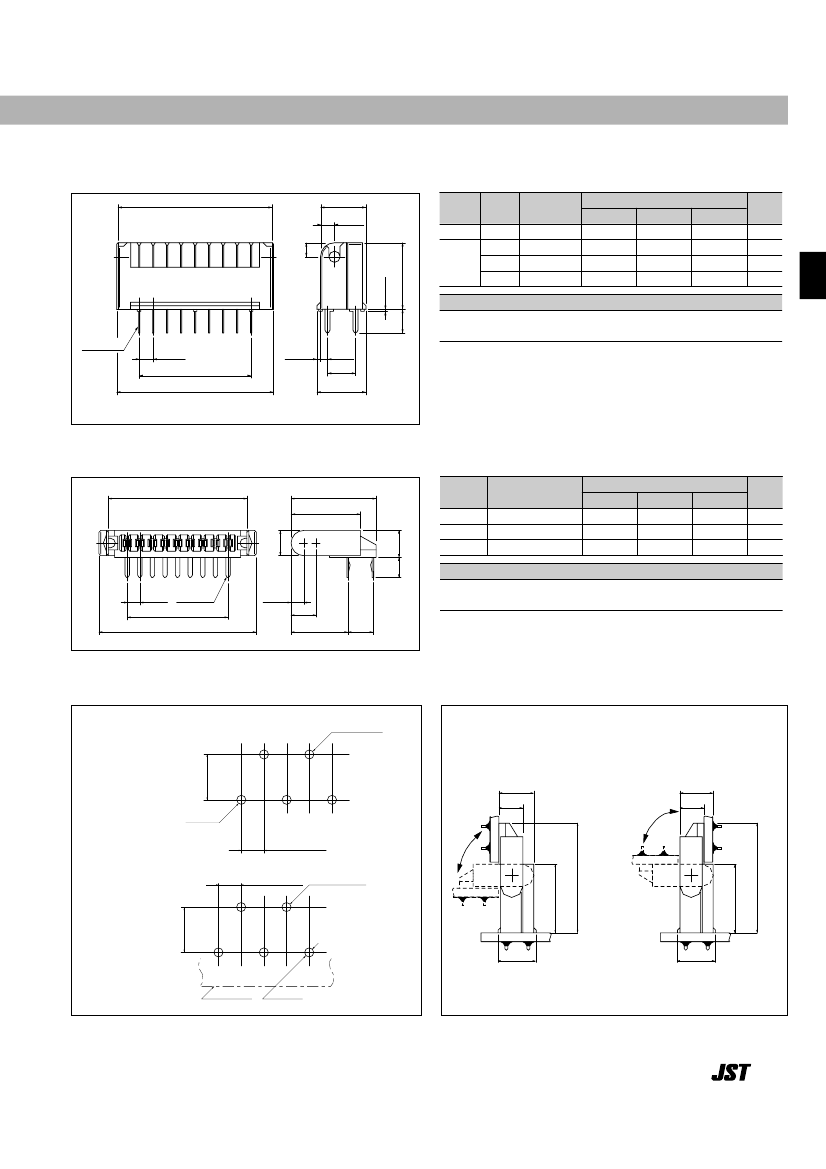

PC board layout
(viewed from component side)
–––––––
Plug
4.0±0.05(.157±.002)
0.8
+0.1
(.031
+.004
)dia.
0
0
Assembly layout ––––––––––––––––––––
Normal connection
Reverse connection
Even number
circuits
6.3(.248)
Odd number
circuits
5.9(.232)
4.3
(.170)
4.3
(.170)
Circuit No.1
2.0±0.05(.079±.002)
Standard Type:17.3(.681)
Long Type:20.3(.799)
Receptacle
4.0±0.05(.157±.002)
2.0±0.05(.076±.002)
0.8
+0.1
(.031
+.004
)dia.
0
0
Even number
circuits
Odd number
circuits
7.0(.276)
7.0(.276)
PC board edge
Circuit No.1
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline.
Contact JST for details.
263
Standard Type:17.3(.681)
Long Type:20.3(.799)
Standard Type:9.8(.386)
Long Type:12.8(.504)
Standard Type:9.8(.386)
Long Type:12.8(.504)
