31_SK-SMPX-50-3/199_NE: DescriptionRF Connector Adapter, SK-SMPX, Female-Female, Jack-jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

31_SK-SMPX-50-3/199_NE Overview

RF Connector Adapter, SK-SMPX, Female-Female, Jack-jack, ROHS COMPLIANT

31_SK-SMPX-50-3/199_NE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	SK-SMPX
Other features	STANDARD: MIL-STD-348A/323
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PPO PPE
MIL compliance	YES
Manufacturer's serial number	BETWEEN
Maximum operating frequency	40 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.11
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

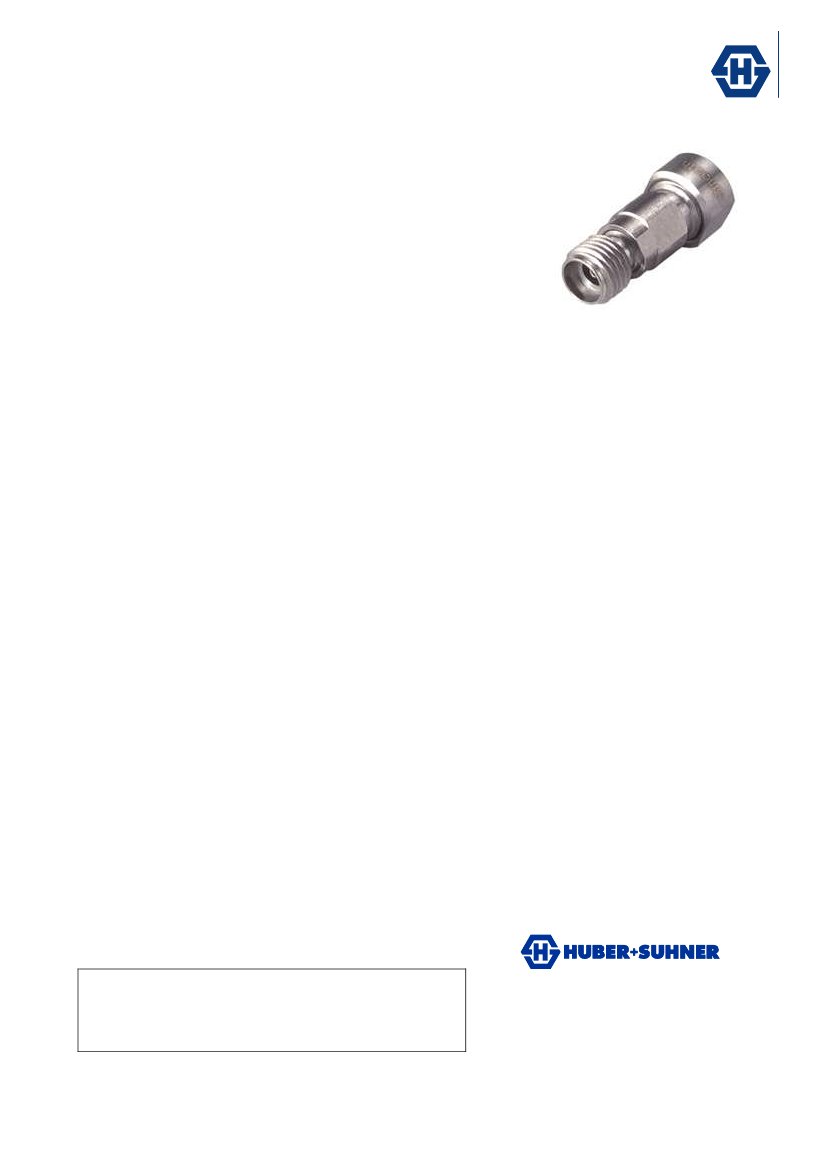

DATA SHEET

Between Series Adapter: 31_SK-SMPX-50-3/199_N

Description

Rev.: D

Adaptor jack/jack

SK jack (female) / SMPX jack (female)

Interface standards

MIL-STD-348A/323

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Electrical Length

50

Ω

40 GHz

DC to 15 GHz

≥ 26 dB

16.48 mm +/- 0.1

1000

0.0005 kg

°C to °C

compliant

Material

Copper Beryllium Alloy

Stainless Steel

PPO_PPE

Material

Copper Beryllium Alloy

Stainless Steel

PPO_PPE

Stainless Steel

DOU-00013995

31_SK-SMPX-50-3/199_NE

Surface Plating

SUCOPRO Plating

15 to 30 GHz

≥ 23 dB

30 to 40 GHz

≥ 20 dB

Mechanical Data

Number of matings

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

(SK)

Centre contact

Outer contact

Body

Insulator

Piece Parts

(SMPX)

Centre contact

Outer contact

Body

Insulator

Coupling nut

Outline drawing

Single package

Material Data

Surface Plating

SUCOPRO Plating

31_SK-SMPX-50-3/199_NE Related Products

	31_SK-SMPX-50-3/199_NE	31SK-SMPX-50-3/199NE
Description	RF Connector Adapter, SK-SMPX, Female-Female, Jack-jack, ROHS COMPLIANT	FEMALE-FEMALE, RF STRAIGHT ADAPTER, JACK-JACK-JACK
Maker	HUBER+SUHNER	HUBER+SUHNER
Reach Compliance Code	compliant	unknown
Adapter type	SK-SMPX	SK-SMPX
Other features	STANDARD: MIL-STD-348A/323	VSWR MAX AT 40 GHZ
Body/casing type	JACK-JACK	JACK-JACK-JACK
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	YES	NO
Manufacturer's serial number	BETWEEN	31SK-SMPX-50-3
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
voltage standing wave ratio	1.11	1.22
Base Number Matches	1	1
