ABC2-FREQ-10-R080-B-W-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABC2-FREQ-10-R080-B-W-T

ABC2-FREQ-10-R080-B-W-T: DescriptionParallel - Fundamental Quartz Crystal, 10MHz Min, 13.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size154KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABC2-FREQ-10-R080-B-W-T Overview

Parallel - Fundamental Quartz Crystal, 10MHz Min, 13.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ABC2-FREQ-10-R080-B-W-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0025%
frequency tolerance	30 ppm
load capacitance	10 pF
Manufacturer's serial number	ABC2
Installation features	SURFACE MOUNT
Maximum operating frequency	13.999 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.6XB3.8XH2.0 (mm)/L0.457XB0.15XH0.079 (inch)
Series resistance	80 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

LOW FREQUENCY CERAMIC SURFACE MOUNT

MICROPROCESSOR CRYSTAL

ABC2

RoHS

Compliant

APPLICATIONS:

• Wide range in communication & measuring equipment

• Commercial & Industrial applications

• Automotive electronics applications

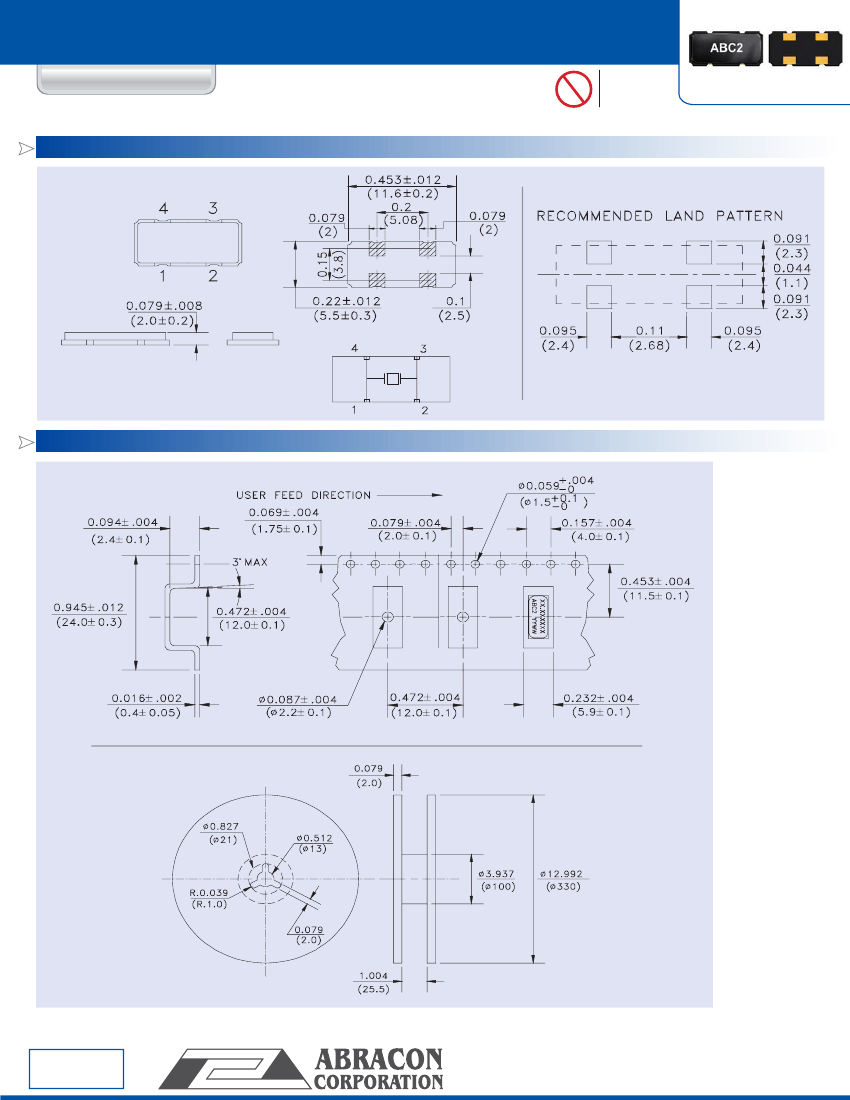

11.5 x 5.5 x 2.0 mm

| | | | | | | | | | | | | | |

FEATURES:

• Low frequency in small size SMD

• 2.0mm height ideal for high density circuit boards

• Ceramic package offers excellent environmental & heat resistance

• Extended temperature -40°C to +85°C for industrial applications

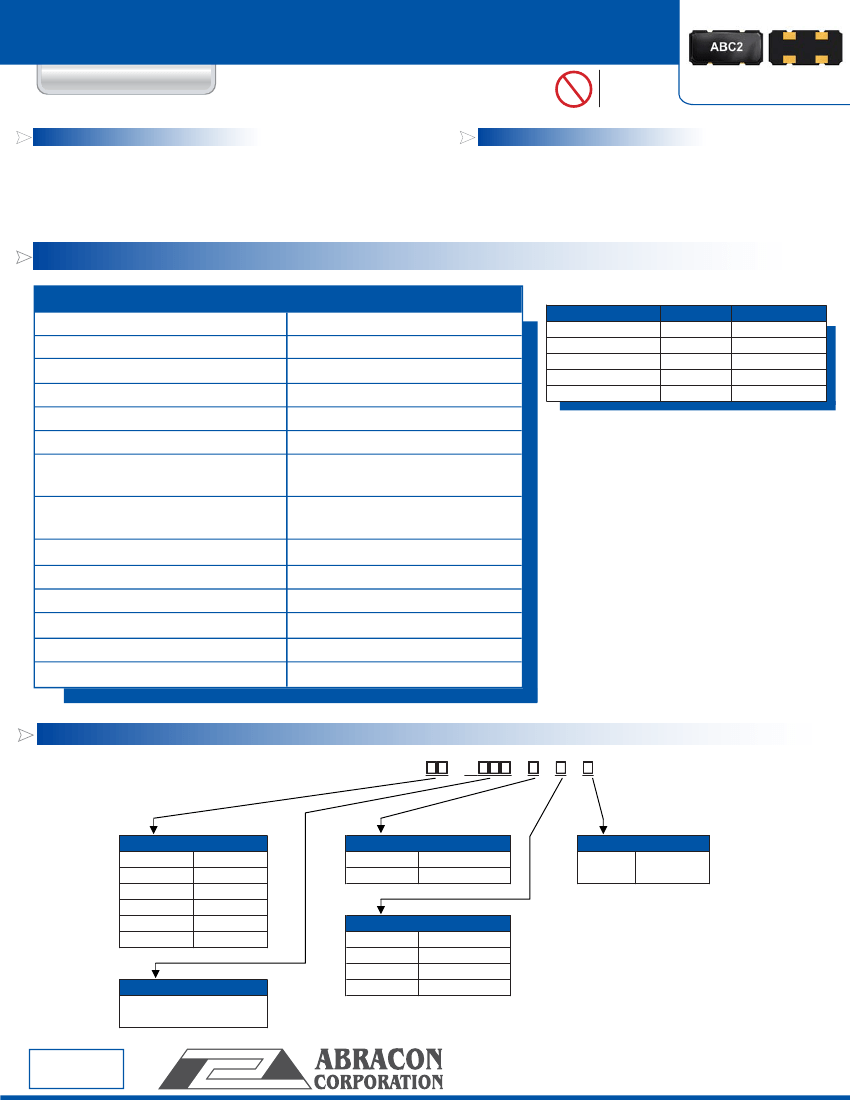

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Tolerance over the

Operating Temp. (-10°C to + 60°C)

Frequency Stability over the

Operating Temp. (Ref to +25° C)

Equivalent Series Resistance

Shunt Capacitance C0

Load Capacitance CL

Drive Level

Aging (first year) 25°C ± 3°C

Insulation Resistance

ABC2

3.500 MHz to 30.000 MHz

Fundamental, AT

-10°C to + 60°C (see options)

-55°C to +125°C

±30ppm

below 6.0MHz: ±50ppm

above 6.0MHz: ±30ppm

± 50ppm max. (see options)

See Table 1

7pF max

18pF (see options)

100 W max.

± 5 ppm max.

500 M

min. at 100 Vdc

±15V

TABLE 1

Frequency (MHz)

Temp-D

ESR

3.500 - 3.999

200 max ±150ppm max

4.000 - 5.999

150 max ±100ppm max

6.000 - 9.999

100 max ±80ppm max

10.00 - 13.99

80 max ±60ppm max

14.00 -30.00

50 max ±60ppm max

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ABC2 - Frequency -

-R

Load Capacitance

10pF

12pF

16pF

18pF

20pF

22pF

Operating Temp.

-20°C to +70°C

-40°C to +85°C

Packaging

Tape and

Reel

ESR

Please specify ESR in

ohms. (RXXX)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Freq. Stability

± 25 ppm

± 30 ppm (*)

± 50 ppm (**)

± 100 ppm

(*) Standard for above 6.0MHz

(**) Standard for below 6.0MHz

REVISED: 4.05.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
