WIMA DC-LINK MKP 4
Metallized Polypropylene (PP)
Capacitors for DC-Link Applications
D
Special Features
˜
Very high volume/capacitance ratio
˜
Self-healing
˜
Particularly reliable contact-
configurations: 4-lead versions
and screwable plate connections
˜
Very low dissipation factor
˜
Negative capacitance change
versus temperature
˜
Very low dielectric absorption
˜
According to RoHS 2002/95/EC
Electrical Data
Capacitance range:
5
mF
to 75
mF
Rated voltages:
450 VDC, 700 VDC, 900 VDC, 1100 VDC
Capacitance tolerances:
±20%, ±10%, ±5%
Operating temperature range:
–55+ C to +85+ C
Climatic test category:
55/085/56 in accordance with IEC
Insulation resistance
at +20+ C:
30 000 sec (M¸ x
mF)
(mean value: 100 000 sec)
Measuring voltage: 100 V/1 min.
Dissipation factors
at +20° C:
tan
d
10 x 10
-4
at 1 kHz
Test voltage:
1.2 U
r
, 2sec
Dielectric absorption:
0.05 %
Maximum pulse rise time:
Capacitance
mF
5
20
35
50
75
...
...
...
...
16
30
45
60
Voltage and current derating:
A derating factor of 1.35 % per K must be
applied from 75° C for AC voltages and
AC currents (I
rms
according to graphs).
Reliability:
Operational life
200 000 hours
Failure rate
2 fit (0.5 x U
r
and 40) C)
Specific dissipation:
Box size
Specific dissipation in Watts per K
W x H x L in mm above the ambient temperature
20 x 39.5 x 41.5
24 x 45.5 x 41.5
31 x 46 x 41.5
33 x 48 x 56
37 x 54 x 56
0.065
0.080
0.092
0.122
0.142
Typical Applications
As intermediate circuit capacitor e. g.
in high power converter technology
Construction
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
Plastic film
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Termination
max. pulse rise time V/msec at T
A
< 40) C
450 VDC
700 VDC
900 VDC
1100 VDC
-
13
13
11
11
14
14
12
12
11
16
16
12
12
-
21
16
16
-
-
for pulses equal to the rated voltage
Mounting Recommendation
Encapsulation:
Solvent-resistant, flame-retardant plastic
case with epoxy resin seal, UL 94 V-0
Terminations:
Tinned wire or plates.
Marking:
Colour: Red. Marking: Black.
Epoxy resin seal: Red
Excessive mechanical strain, e.g. pressure
or shock onto the capacitor body, is to be
avoided during mounting and usage of
the capacitors. When fixing the plates the
screw torque is to be limited to max. 5 Nm.
Packing
Transportation-safe packing in
cardboard boxes.
Packing units:
L
18
26.5
31.5
41.5
56
pcs. per packing unit
100
100
100
100
50
For further details and graphs please
refer to Technical Information.
11.10
101
WIMA DC-LINK MKP 4
Continuation
D
General Data
Capacitance
15
16
20
22
25
30
35
40
45
50
55
60
75
m
F
W
H
450 VDC/200 VAC*
L PCM**
Part number
W
20
20
20
20
24
24
31
31
33
33
33
37
37
H
39.5
39.5
39.5
39.5
45.5
45.5
46
46
48
48
48
54
54
700 VDC/220 VAC*
L PCM**
Part number
41.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
56
56
56
56
56
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
48.5
48.5
48.5
48.5
48.5
DCP4K05150SL_ _ _ _ _ _
DCP4K05160SL_ _ _ _ _ _
DCP4K05200SL_ _ _ _ _ _
DCP4K05220SL_ _ _ _ _ _
DCP4K05250SM_ _ _ _ _ _
DCP4K05300SM_ _ _ _ _ _
DCP4K05350SN_ _ _ _ _ _
DCP4K05400SN_ _ _ _ _ _
DCP4K05450SR_ _ _ _ _ _
DCP4K05500SR_ _ _ _ _ _
DCP4K05550SR_ _ _ _ _ _
DCP4K05600SS_ _ _ _ _ _
DCP4K05750SS_ _ _ _ _ _
„
„
„
„
„
„
„
„
„
„
„
„
20
20
20
24
24
31
31
33
33
33
37
39.5
39.5
39.5
45.5
45.5
46
46
48
48
48
54
41.5
41.5
41.5
41.5
41.5
41.5
41.5
56
56
56
56
37.5
37.5
37.5
37.5
37.5
37.5
37.5
48.5
48.5
48.5
48.5
DCP4H05200SL_ _ _ _ _ _
DCP4H05220SL_ _ _ _ _ _
DCP4H05250SL_ _ _ _ _ _
DCP4H05300SM_ _ _ _ _ _
DCP4H05350SM_ _ _ _ _ _
DCP4H05400SN_ _ _ _ _ _
DCP4H05450SN_ _ _ _ _ _
DCP4H05500SR_ _ _ _ _ _
DCP4H05550SR_ _ _ _ _ _
DCP4H05600SR_ _ _ _ _ _
DCP4H05750SS_ _ _ _ _ _
* AC voltages: 1.4 x U
rms
+
UDC
U
r
; at f > 100 Hz the permissible AC current (I
rms
see graphs) has to be considered.
** PCM = Printed circuit module = lead spacing of the 4-lead version
4-lead version
Part number completion:
W
20
24
31
33
37
H
39.5
45.5
46
48
54
L
41.5
41.5
41.5
56
56
PCM
37.5
37.5
37.5
48.5
48.5
b
12.5
12.5
20
20
20
d
1
1
1
1
1
Version codes see page 94.
Tolerance: 20 % = M
10 % = K
5%=J
Packing:
bulk = S
Lead length: none = 00

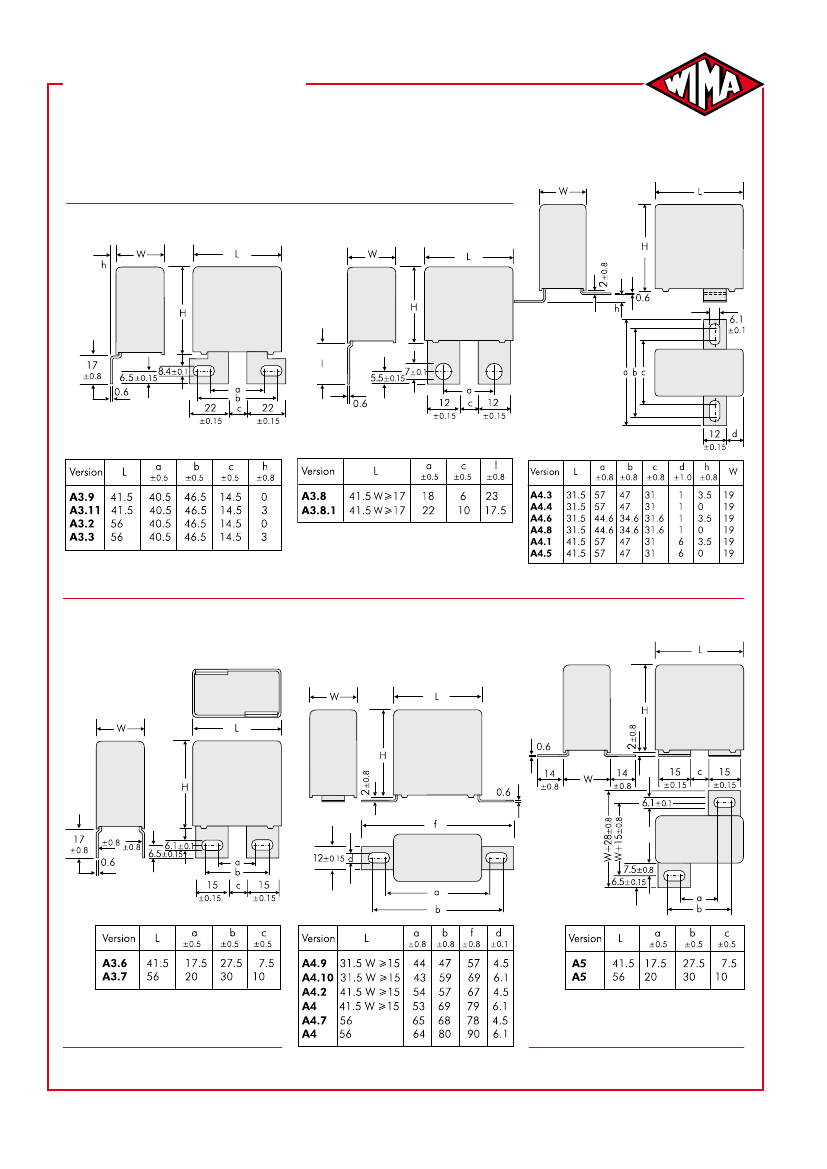

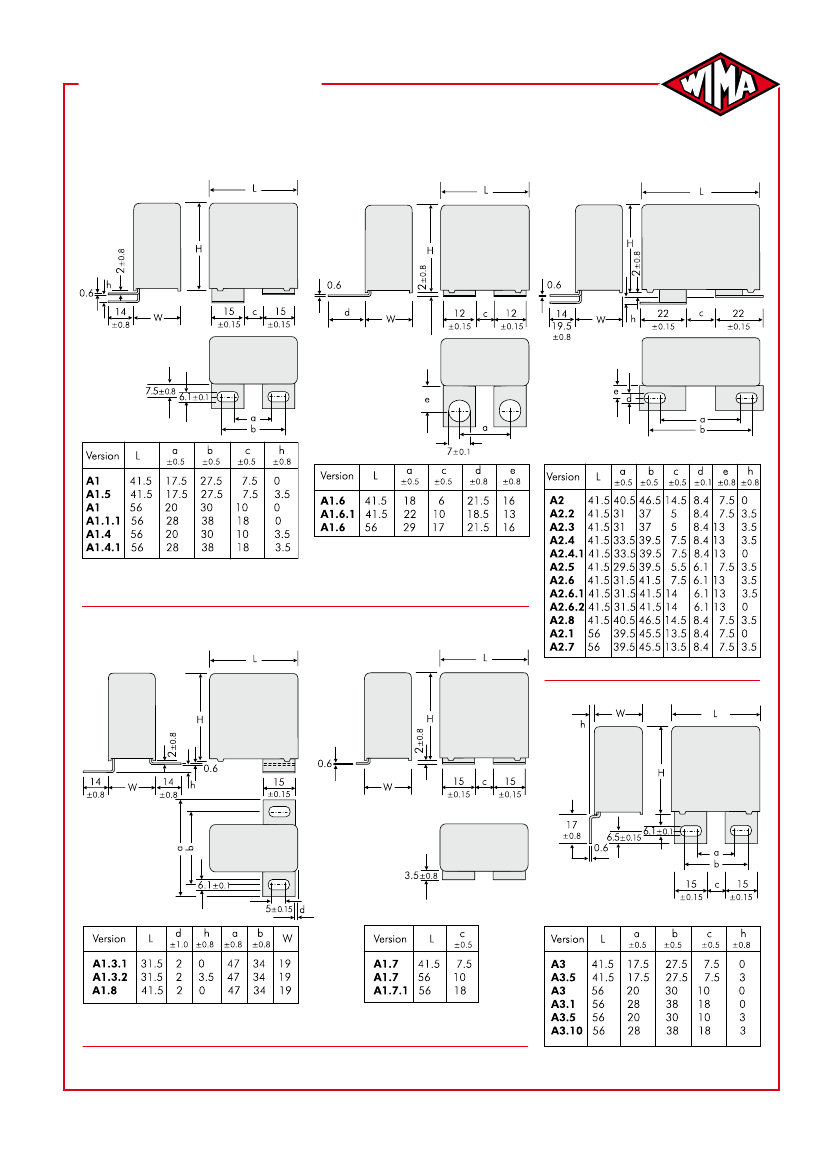

Plate versions (example)
Additional plate versions are possible,
please refer to the construction principles
of WIMA Snubber capacitors page 91.
Dims. in mm.
Rights reserved to amend design data without prior notification.
Continuation page 103
11.10
102
WIMA DC-LINK MKP 4
Continuation
D
General Data
Capacitance
5
m
F
8„
10
12
14
15
16
20
22
25
30
35
40
45
50
m
F
W
H
900 VDC/240 VAC*
L PCM**
Part number
W
20
20
H
39.5
39.5
39.5
45.5
45.5
46
46
48
48
48
54
54
1100 VDC/260 VAC*
L PCM**
Part number
41.5
41.5
41.5
41.5
41.5
41.5
41.5
56
56
56
56
56
37.5
37.5
37.5
37.5
37.5
37.5
37.5
48.5
48.5
48.5
48.5
48.5
DCP4P04500SL_ _ _ _ _ _
DCP4P04800SL_ _ _ _ _ _
DCP4P05100SL_ _ _ _ _ _
DCP4P05120SM_ _ _ _ _ _
DCP4P05140SM_ _ _ _ _ _
DCP4P05150SN_ _ _ _ _ _
DCP4P05160SN_ _ _ _ _ _
DCP4P05200SR_ _ _ _ _ _
DCP4P05220SR_ _ _ _ _ _
DCP4P05250SR_ _ _ _ _ _
DCP4P05300SS_ _ _ _ _ _
DCP4P05350SS_ _ _ _ _ _
„
„
„
„
„
„
„
„
„
„
„
„
20
20
20
20
20
24
24
31
31
33
33
33
37
39.5
39.5
39.5
39.5
39.5
45.5
45.5
46
46
48
48
48
54
41.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
56
56
56
56
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
48.5
48.5
48.5
48.5
DCP4N05100SL_ _ _ _ _ _
DCP4N05120SL_ _ _ _ _ _
DCP4N05140SL_ _ _ _ _ _
DCP4N05150SL_ _ _ _ _ _
DCP4N05160SL_ _ _ _ _ _
DCP4N05200SM_ _ _ _ _ _
DCP4N05220SM_ _ _ _ _ _
DCP4N05250SN_ _ _ _ _ _
DCP4N05300SN_ _ _ _ _ _
DCP4N05350SR_ _ _ _ _ _
DCP4N05400SR_ _ _ _ _ _
DCP4N05450SR_ _ _ _ _ _
DCP4N05500SS_ _ _ _ _ _
20
24
24
31
31
33
33
33
37
37
* AC voltages: 1.4 x U
rms
+
UDC
U
r
; at f > 100 Hz the permissible AC current (I
rms
see graphs) has to be considered.
** PCM = Printed circuit module = lead spacing of the 4-lead version.
Dims. in mm.
Versions and dimensional drawings see page 91.
Part number completion:
Version codes see page 94.
Tolerance: 20 % = M
10 % = K
5%=J
Packing:
bulk = S
Lead length: none = 00
Rights reserved to amend design data without prior notification.

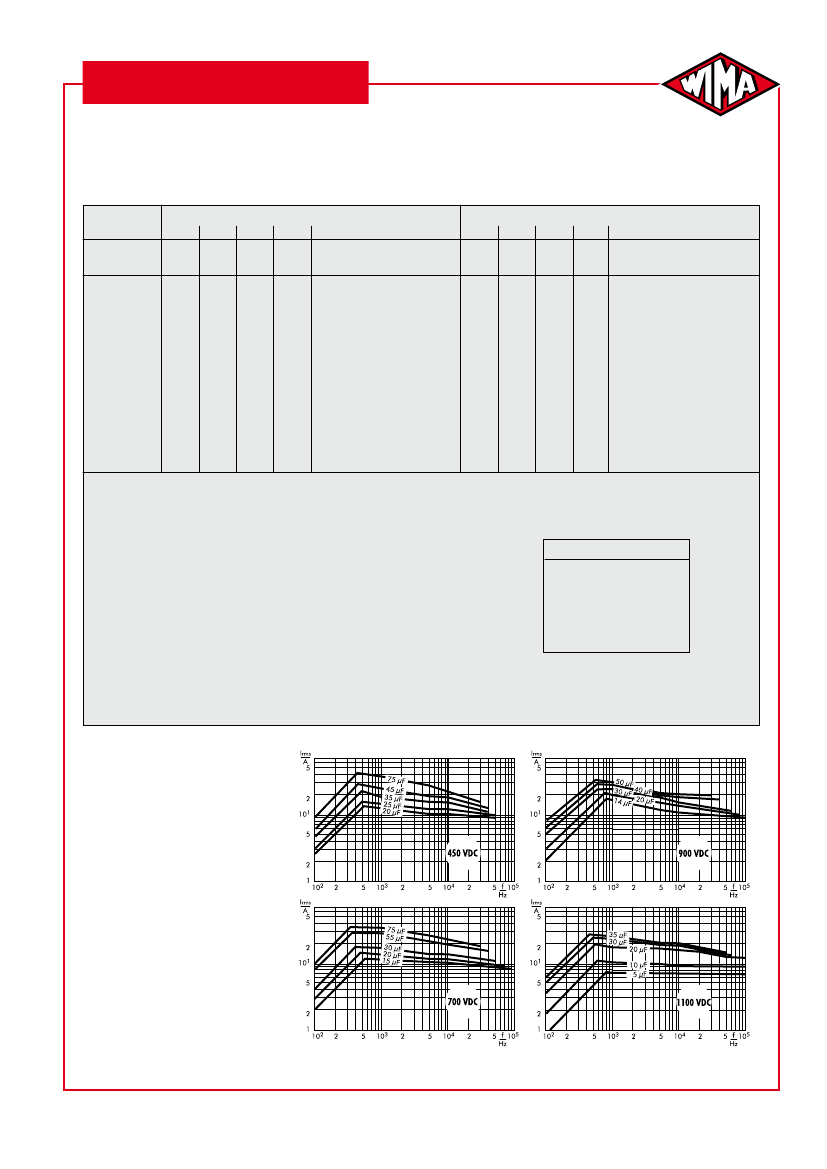

Permissible AC current in
relation to frequency at 10) C
internal temperature rise
(general guide):
11.10
103
