30CTQ035-006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 30CTQ035-006

30CTQ035-006: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size123KB，4 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

30CTQ035-006 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon

30CTQ035-006 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.76 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum non-repetitive peak forward current	1060 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
Base Number Matches	1

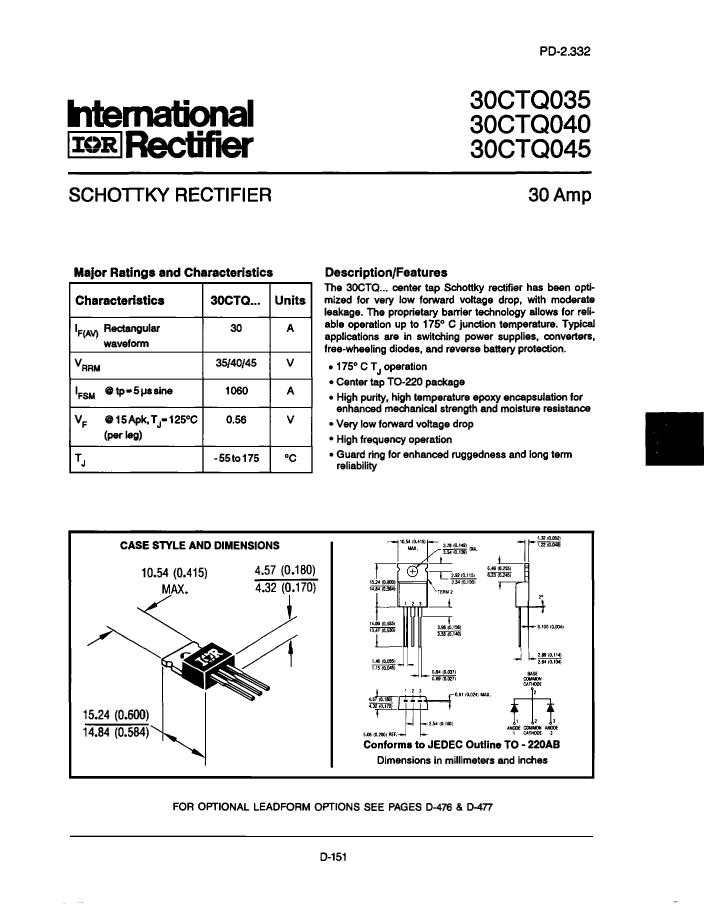

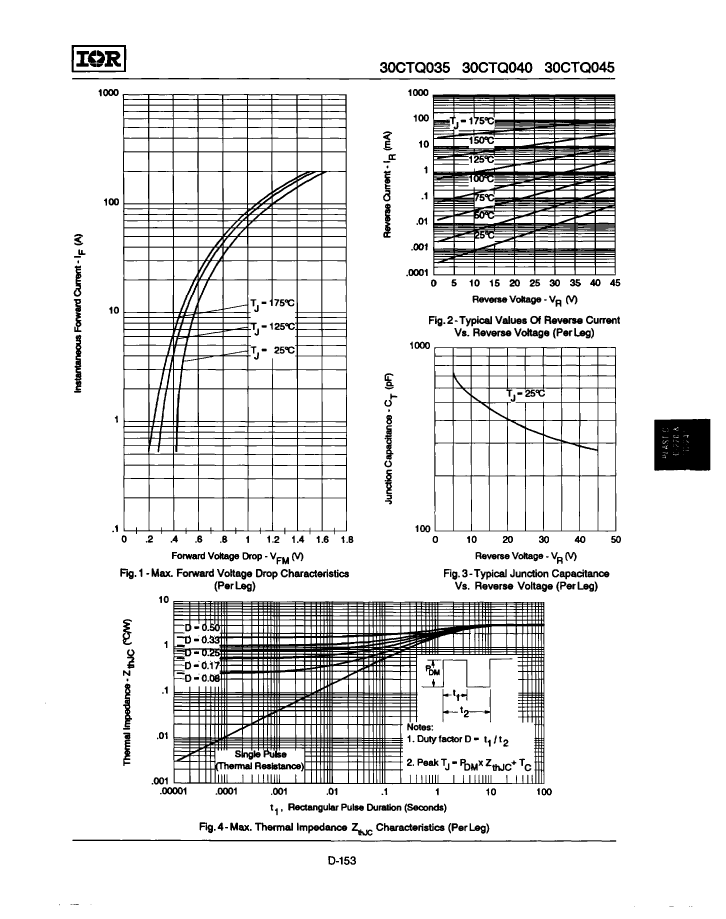

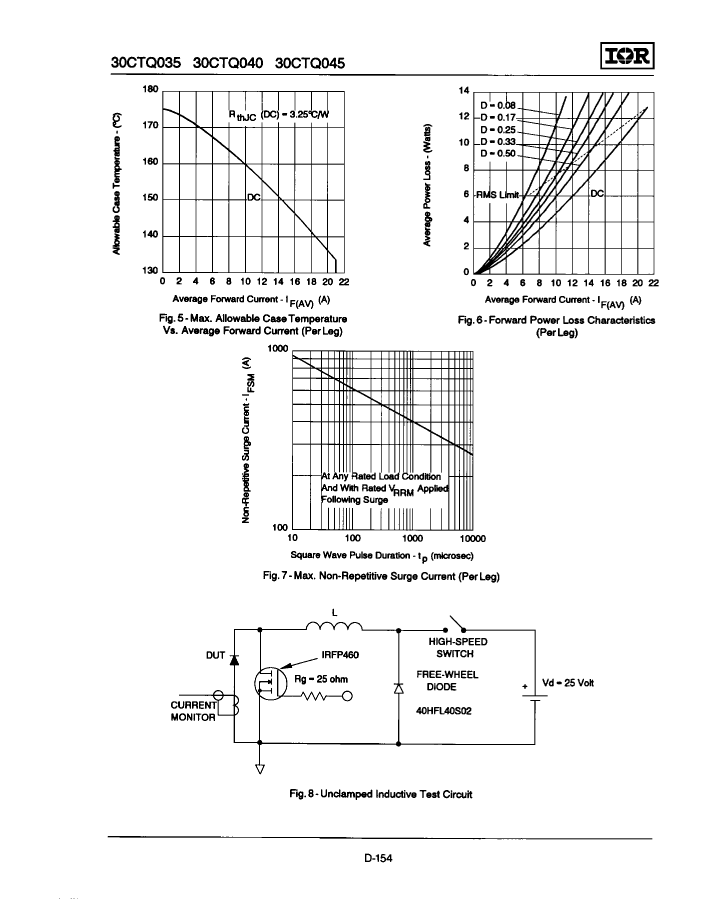

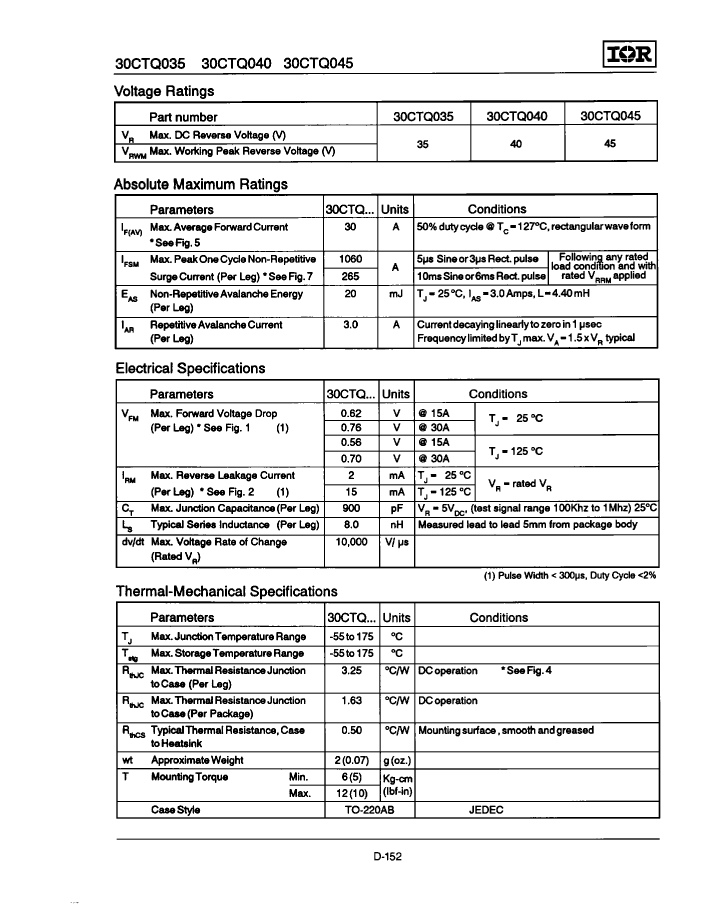

Preview

Download Datasheet

View All

30CTQ035-006 Related Products

	30CTQ035-006	30CTQ045-006	30CTQ040-006	30CTQ040-006PBF	30CTQ045-006PBF	30CTQ035-006PBF
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.76 V	0.76 V	0.76 V	0.76 V	0.76 V	0.76 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e0	e0	e3	e3	e3
Maximum non-repetitive peak forward current	1060 A	1060 A	1060 A	1060 A	1060 A	1060 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225	225	225	260	260	250
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	45 V	40 V	40 V	45 V	35 V
Maximum reverse current	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA	2000 µA
surface mount	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	30	30	40	40	30
Base Number Matches	1	1	1	1	1	1
Is it lead-free?	-	Contains lead	Contains lead	Lead free	Lead free	Lead free
