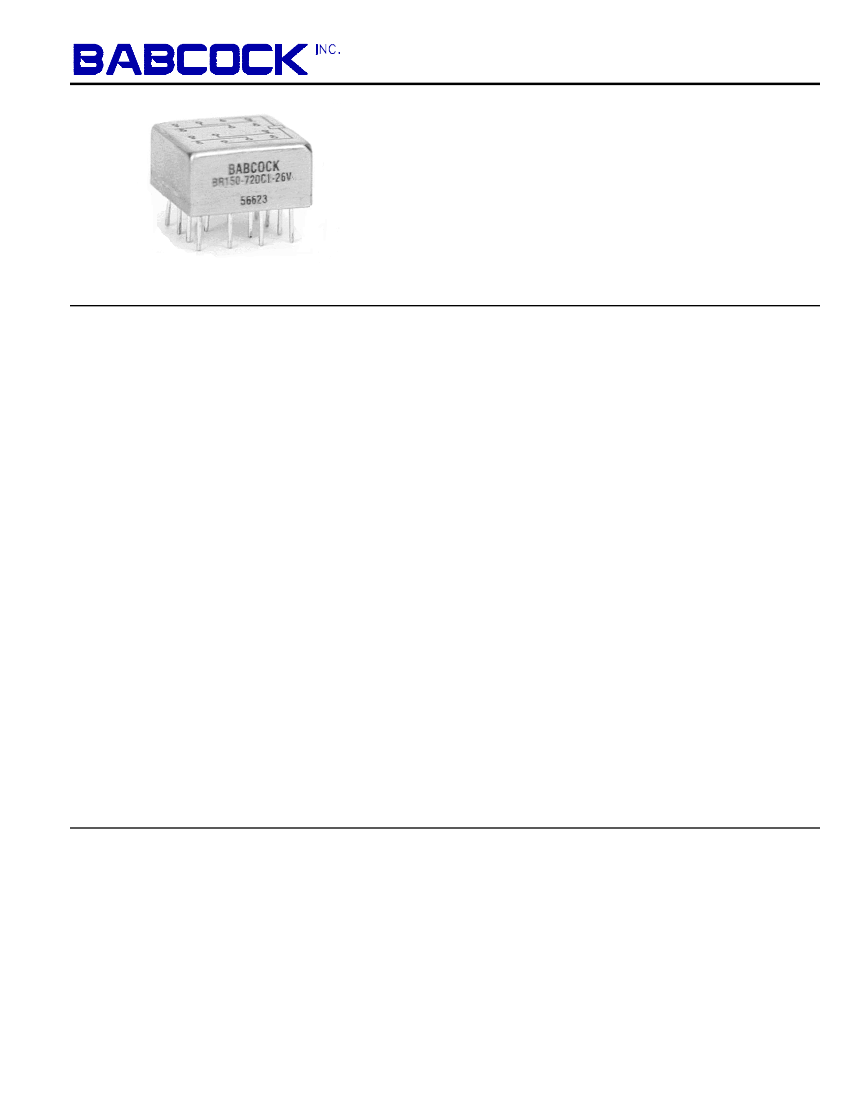

BR150
Miniature
4PDT
Dry Circuit to 2 Amp
To MIL-PRF-39016
SPECIFICATIONS
GENERAL
Contact Arrangement
.......................... 4PDT (4 Form C)
Weight.............................................................
0.3 oz max.
Designed to meet the requirements of MIL-PRF-39016/14
PERFORMANCE
Contact Rating
(Note 1)
Resistive .......................................... 2 Amp @ 28 VDC
0.5 Amp @ 115V 60 + 400 Hz
(Case Ungrounded)
Inductive ........................................ 0.5 Amp @ 28 VDC
Lamp ............................................. 0.1 Amp @ 28 VDC
Low Level ............................. 10-50µA @ 10-50 mv DC
or peak AC (Note 4)
Life
...................................100,000 operations minimum
o
@ 1 amp load, 125 C
Pull In Power
............................................250 mw approx.
Operate/Release Time
.................... 4 ms max, excluding
bounce time at nominal coil voltage
Contact Bounce Time......................
2 ms max @ 1 Amp
28 VDC contact load
Contact Resistance
Before Life......................... 0.050 Ohms max @ 1 Amp
and 6 VDC
After Life ............................ 0.150 Ohms max @ 1 Amp
and 6 VDC
ENVIRONMENTAL
Temperature Range
............................... -65 C to +125 C
Vibration
(Note 2)............................... 0.4" DA 10 - 38 Hz,
30 G's 38 - 2,000 Hz
Shock (Operating)
(Note 2) ........................ 75 G's 11 ms
o
o
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance
o
10,000 megohms @ 500V 25 C
o
1,000 megohms @ 500V 125 C
Dielectric Strength:
Sea Level:
Contact to Case ...................................... 750 VRMS
Contact to Coil ........................................ 750 VRMS
Coil to Case ............................................ 500 VRMS
Across Open Contacts ........................... 500 VRMS
70,000 Feet
All points.................................................. 350 VRMS
M39016/14 QUALIFIED to ER level M
Notes:
1.
For case grounded loads and other ratings, consult the
factory.
For applications requiring other shock and vibration
levels, consult the factory.
3.
4.
2.
For other ratings consult the factory.
Relay contacts which have switched high level currents
are no longer suitable for switching low level loads.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W: 2000 Rev. 2
BR150
COIL DATA:
MODEL BR150 PART NUMBER
BR150-50()()-6V
BR150-73()()-9V
BR150-115()()-12V
BR150-280()()-18V
BR150-720()()-26V
BR150-1040()()-36V
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @+125 C)
PULL IN VOLTAGE (MAX)
DROP OUT VOLTAGE (MIN)
COIL RESISTANCE ± 10% @ 25 C
o
o
6 VDC
7 VDC
3.8 VDC
2.7 VDC
0.3 VDC
28 OHMS
9 VDC
11 VDC
5.6 VDC
4.2 VDC
0.4 VDC
73 OHMS
12 VDC
14 VDC
7.6 VDC
5.4 VDC
0.6 VDC
115 OHMS
18 VDC
22 VDC
11.2 VDC
8.4 VDC
0.8 VDC
280 OHMS
26 VDC
35 VDC
18.0 VDC
13.5 VDC
1.5 VDC
720 OHMS
Relay Type
Nominal coil resistance
Terminal style
Mounting Type
Nominal coil voltage
36 VDC
42 VDC
22.8 VDC
17.1 VDC
1.9 VDC
1040 OHMS

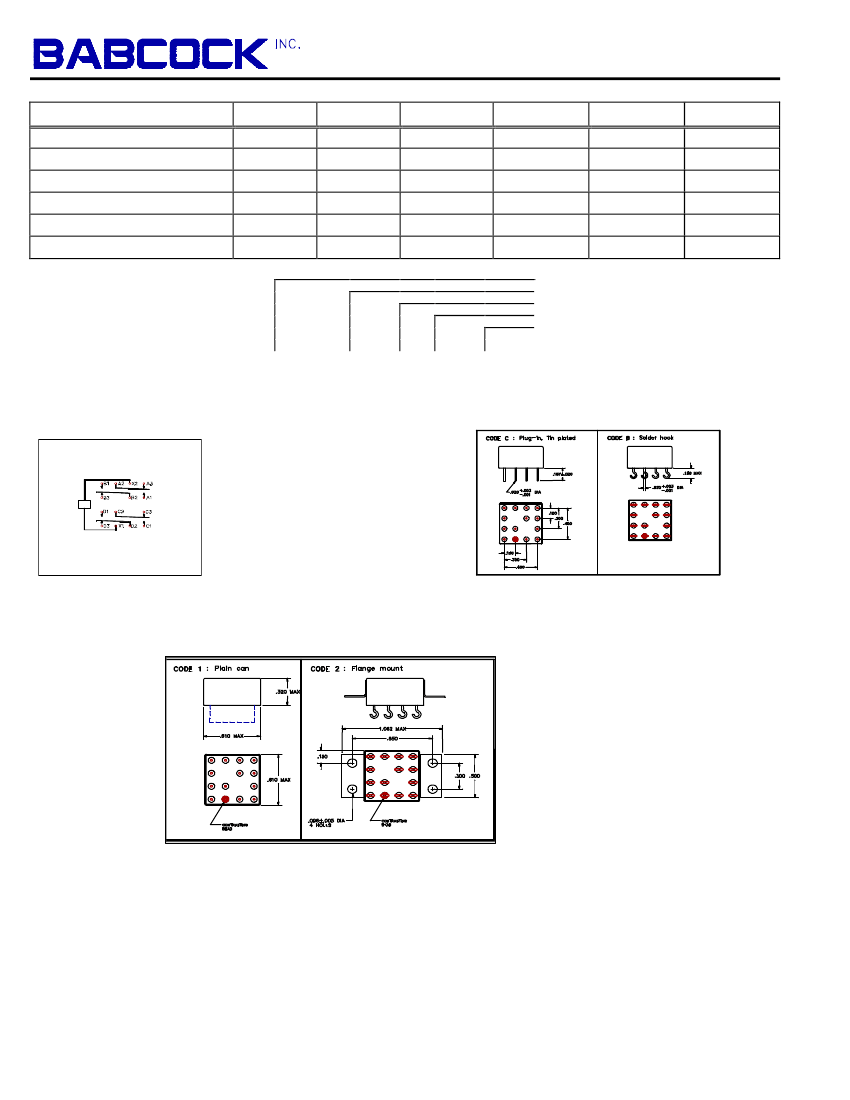

BR150
SCHEMATIC
TERMINAL VIEW
NUMBERS FOR REFERENCE ONLY
-
720
C
2
-
26V
TERMINAL STYLES
SCHEMATIC
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal
o
coil voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W: 2000 Rev. 2
