53409350

Description
Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size297KB,2 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

53409350 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

53409350 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
body width0.335 inch
subject depth0.37 inch
body length1.403 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number534
Plug contact pitch0.156 inch
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.146 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts9
Base Number Matches1

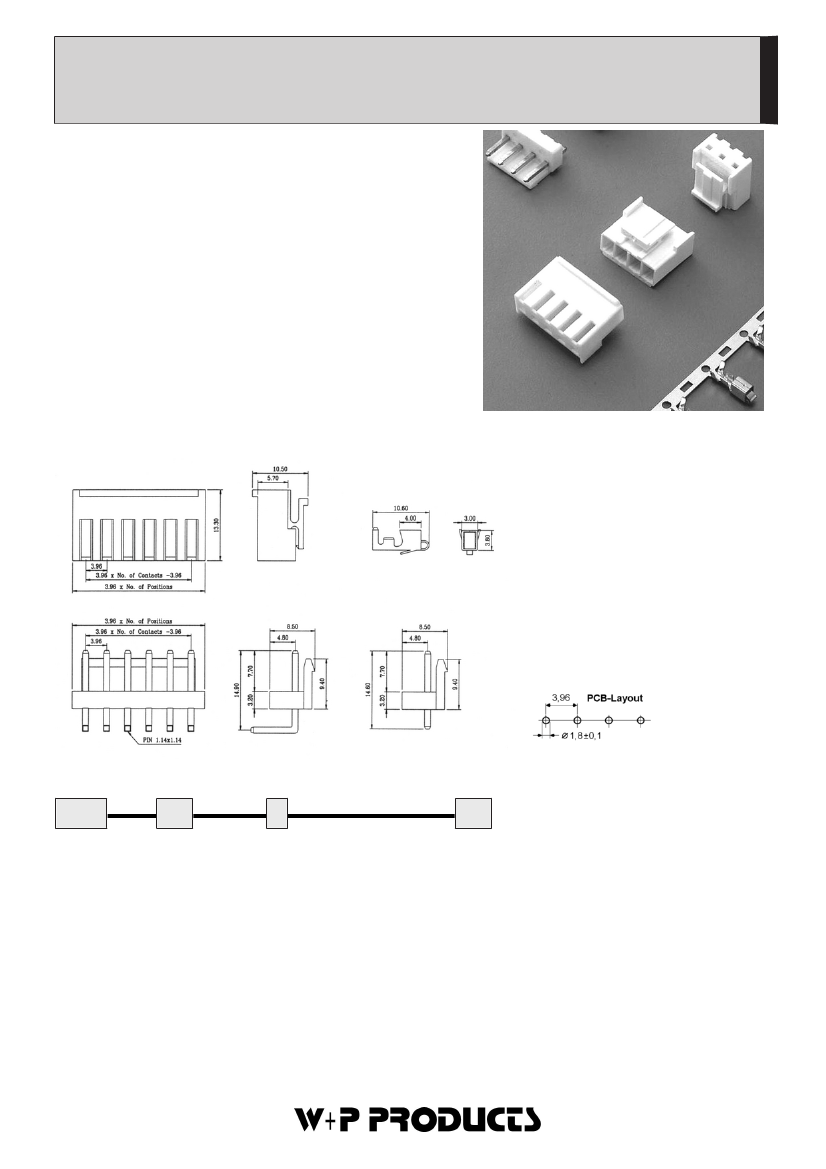

534
Stift-/Buchsenleisten - Crimp-Rast-System - RM 3,96mm
Friction Lock Header / Crimp Housing and Contacts - Pitch 3,96mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing
Contact Material
Brass
Aderquerschnitt
AWG 18 ... 24
Applicable wire Gauge
AWG 18 ... 24
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
1500V
AC
Test Voltage
1500V
AC
Nennspannung
250V
AC/DC
max.
Voltage Rating
250V
AC/DC
max.
Nennstrom
5A
Current Rating
5A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Verarbeitung
Wellenlötverfahren; weitere Informationen in Kapitel T
Processing
Wave soldering, detailed information in ch. T
Series
Contacts
*
Type
*
Plating
*
534
10
02-10
3
1
Buchsengehäuse
Housing
2
Buchsenkontakte
Crimp contacts
3
Stiftleiste gerade
Straight pin header
4
Stiftleiste gewinkelt
Right angled pin header
50
50
Verzinnt (Standard) (für Gehäuse nicht erforderlich)
Tin plated (Standard) (not used for housings)
00
Vergoldet (auf Anfrage)
Gold plated (by request)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
