5KP190A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KP190A

5KP190A: DescriptionTrans Voltage Suppressor Diode, 5000W, 190V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, P-600, 2 PIN; CategoryDiscrete semiconductor diode; File Size165KB，4 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

5KP190A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5KP190A	-	-	View	Buy Now

5KP190A Overview

Trans Voltage Suppressor Diode, 5000W, 190V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, P-600, 2 PIN

5KP190A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	243.2 V
Minimum breakdown voltage	209 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	190 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

5000W

TRANSIENT VOLTAGE SUPPRESSORS

—

Data

Sheet

1257,

Rev.

Features

5KP120-5KP220CA

Glass Passivated Die Construction

5000W

Peak

Pulse

Power Dissipation

120V

–

220V

Standoff Voltage

Uni-

and

Bi-Directional

Versions Available

Excellent

Clamping

Capability

Fast

Response

Time

Plastic

Case

Material

has

Flammability

Classification Rating 94V-O

$ %&'224235

Case:

Molded Plastic

JEDEC P-600

Terminals: Axial Leads, Solderable per

MIL-STD-750, Method 2026

Cathode

Band

Polarity:

Marking:

Unidirectional

–

Type Number and Cathode Band

Bidirectional

–

Device Number

Only

Weight:

2.10

grams (approx.)

P-600

Max

Min

—

9.10

1.30

9.10

1.000

0.339

0.047

0.339

Data

Mechanical

Dim

Min

25.4

8.60

1.20

8.60

Max

—

0.358

0.051

0.358

In ,mm

In inch

Maximum

“C” Suffix Designates Bi-directional Devices

“A” Suffix Designates 5% Tolerance Devices

No Suffix Designates 10% Tolerance Devices

Ratings and Electrical Characteristics

Characteristic

=25°C unless otherwise specified

Symbol

PPM

FSM

PPM

M(AV)

, T

STG

Value

5000 Minimum

400

See Table 1

8.0

-55 to +175

Unit

°C

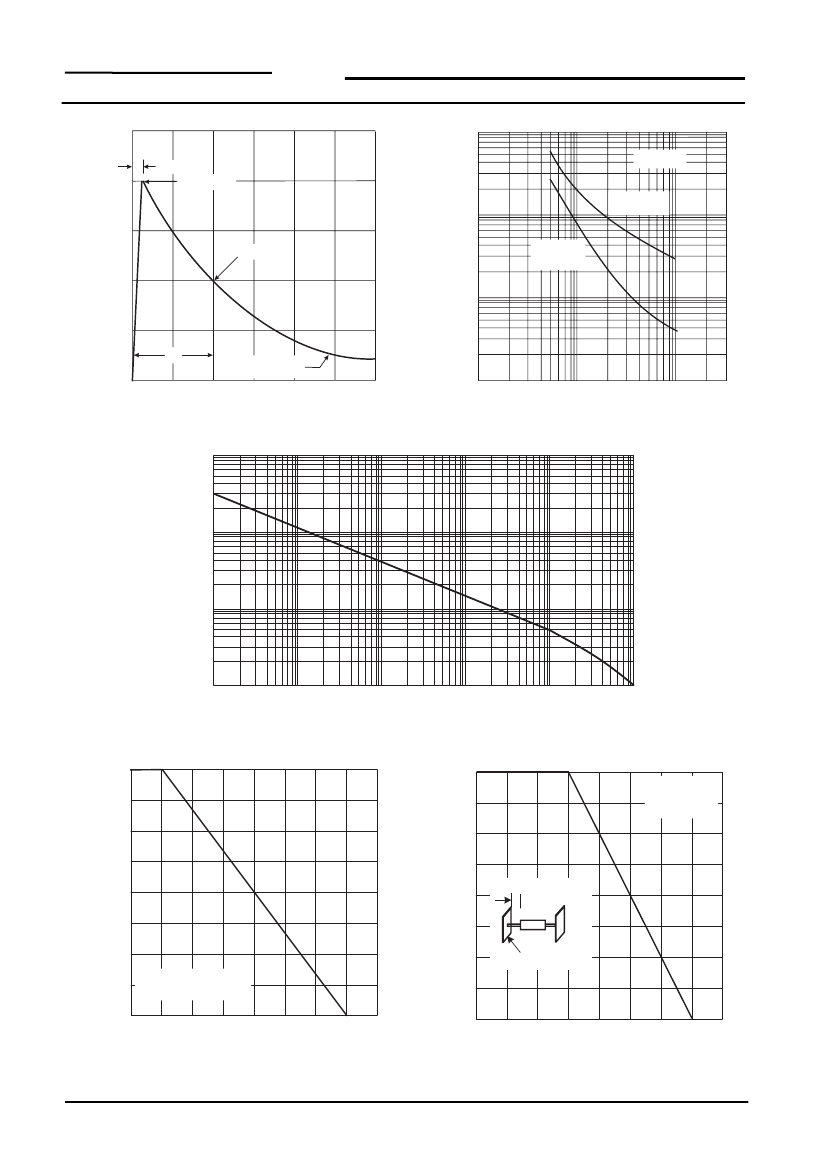

Peak Pulse Power Dissipation at T

= 25°C (Note 1, 2, 5) Figure 3

Peak Forward Surge Current (Note 3)

Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1

Steady State Power Dissipation (Note 2, 4)

Operating and Storage Temperature Range

Note: 1. Non-repetitive current pulse, per Figure 1 and derated above T

= 25°C per Figure 4.

2. Mounted on 20mm copper pad.

3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.

4. Lead temperature at 75°C = T

5. Peak pulse power waveform is 10/1000µS.

•

!!"#$•

•

% & '(&)*+,,---. &

./0•12&%#

%3 &

./0•

SENSITRON

SEMICONDUCTOR

Data

Sheet 1257, Rev. —

5KP120-5KP220CA

5000W TRANSIENT VOLTAGE SUPPRESSORS

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to improve

product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest

version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed writ ten permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•
