DN74LS148 datasheet, PDF - EEWORLD Datasheet

DN74LS148: DescriptionEncoder, TTL, PDIP16; Categorylogic logic; File Size106KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

DN74LS148 Overview

Encoder, TTL, PDIP16

Parameter Name	Attribute value
Maker	Panasonic
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T16
Logic integrated circuit type	ENCODER
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

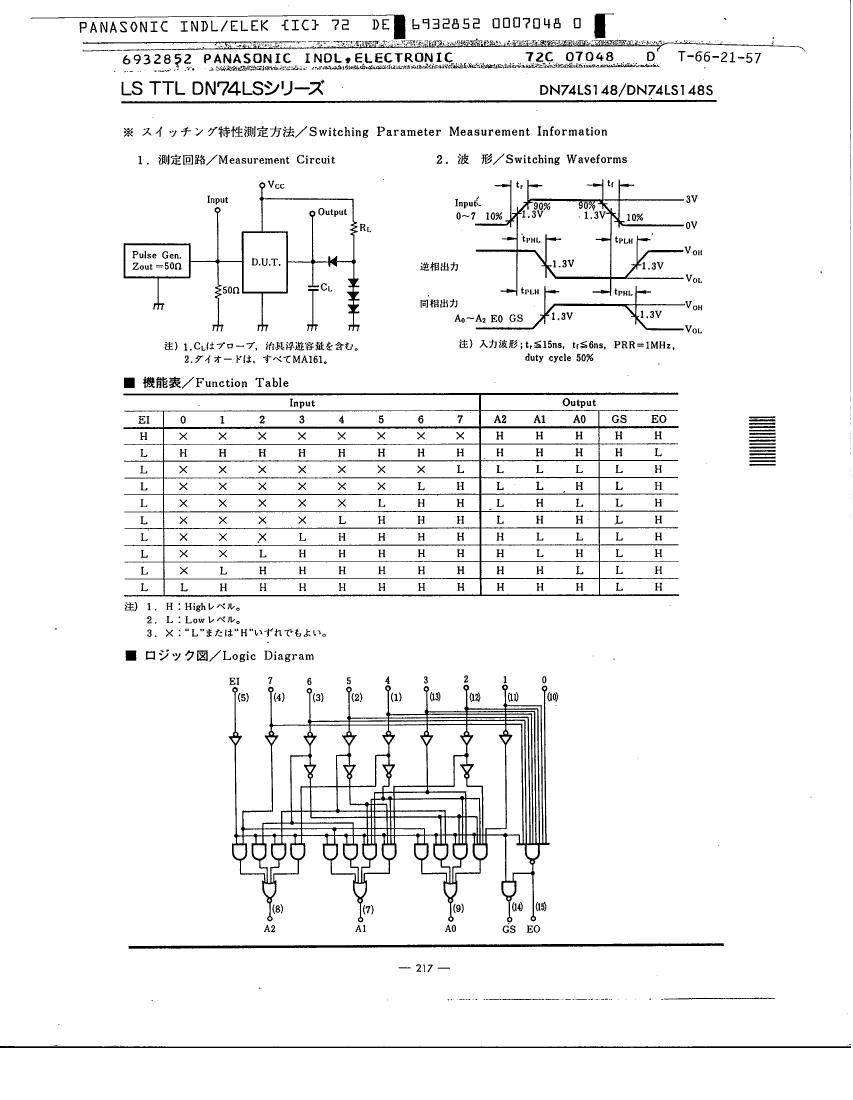

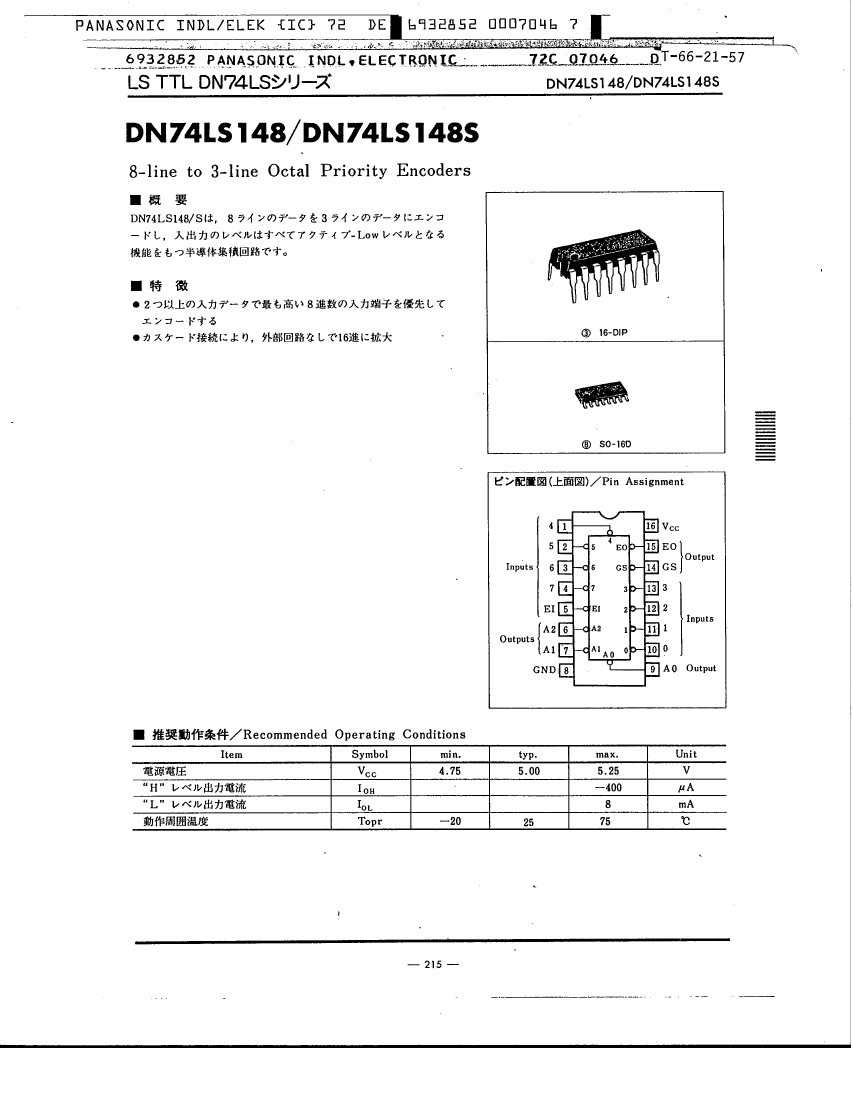

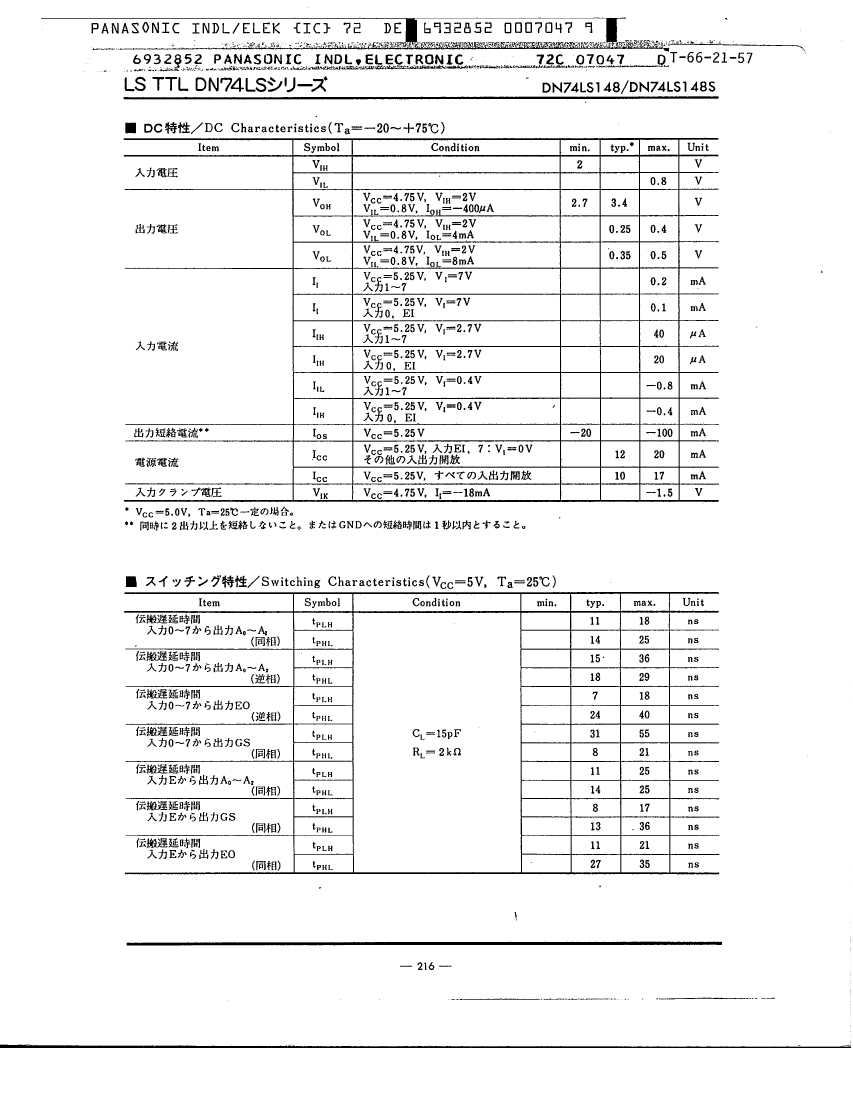

This Material Copyrighted By Its Respective Manufacturer

	DN74LS148	DN74LS148S
Description	Encoder, TTL, PDIP16	Encoder, TTL, PDSO16
Maker	Panasonic	Panasonic
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T16	R-PDSO-G16
Logic integrated circuit type	ENCODER	ENCODER
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
