27082012010 datasheet, PDF - EEWORLD Datasheet

27082012010: DescriptionBoard Euro Connector, 10 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle,; CategoryThe connector The connector; File Size234KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

27082012010 Overview

Board Euro Connector, 10 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle,

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.433 inch
body length	1.501 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S8P2
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
maximum insertion force	3.4194 N
Insulation resistance	1000000000000 Ω
insulator material	POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	YES
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	3
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.1946 N
Base Number Matches	1

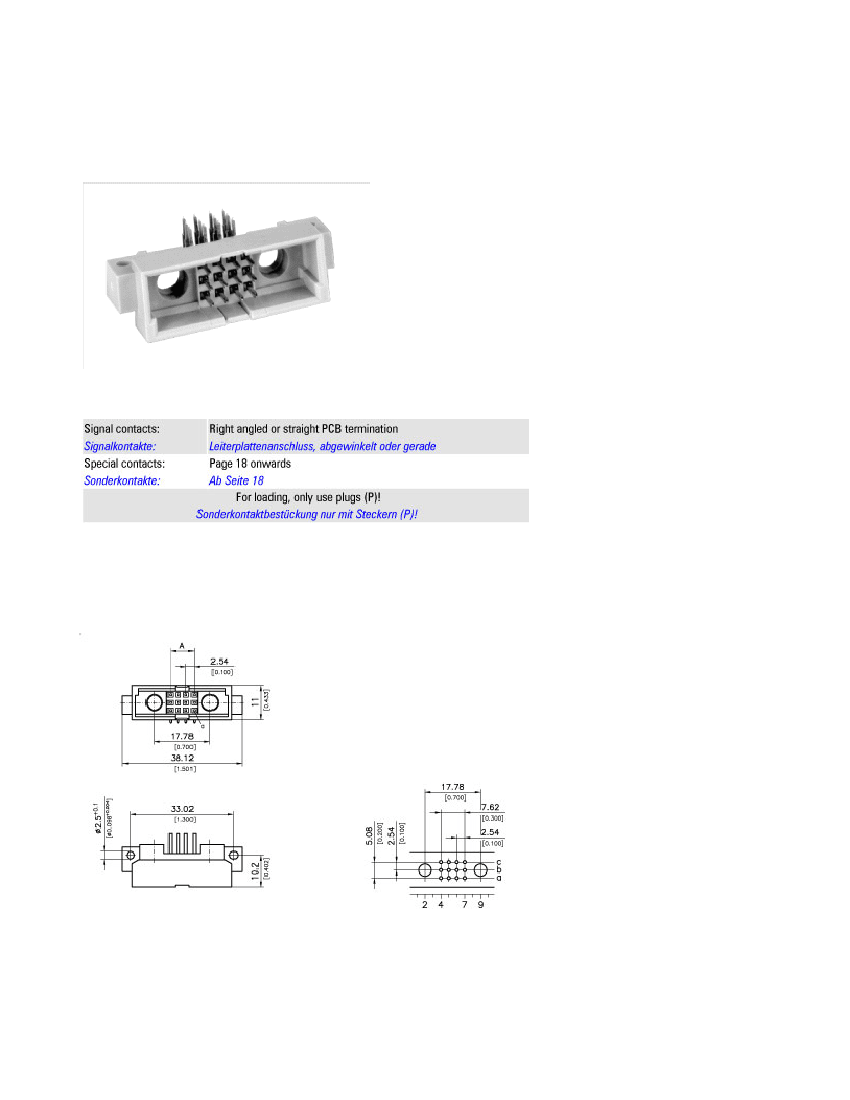

Type M/3: Male Connector

Dimensioning

View: Rear View of the

Male Connector

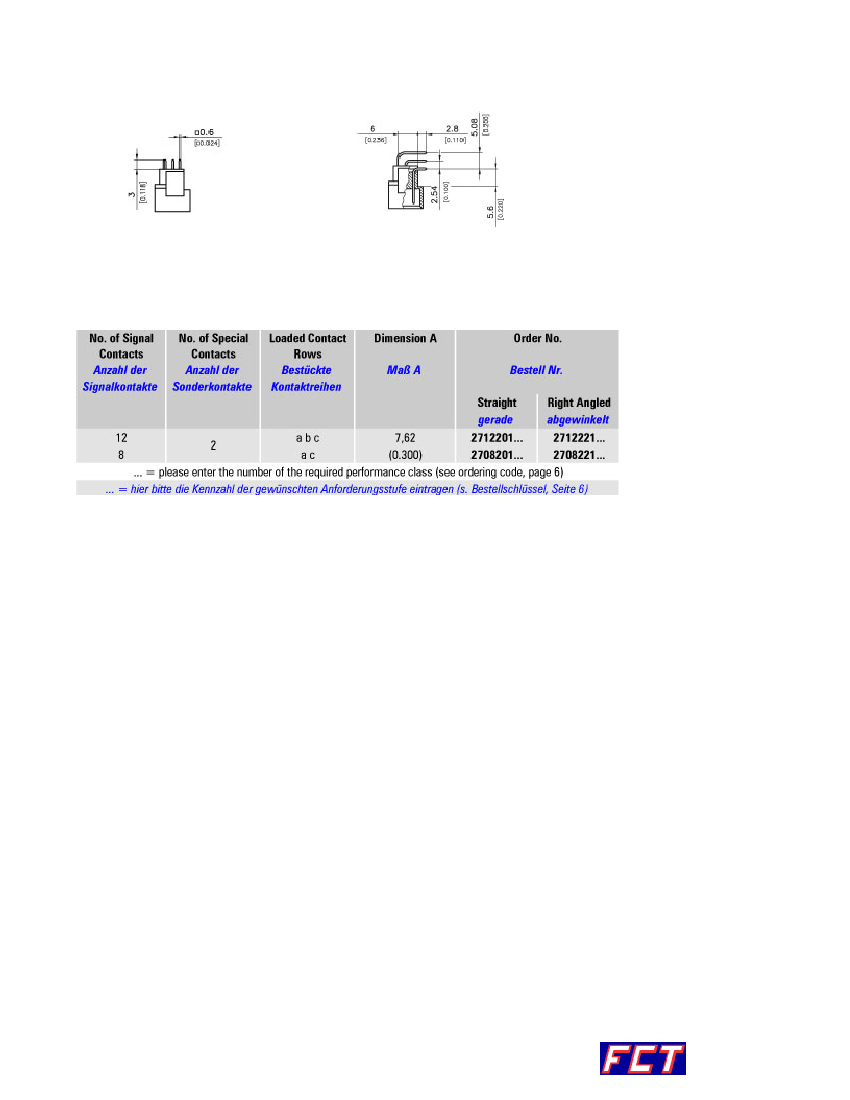

Straight PCB

Right Angled PCB
