5962-9222301M3X datasheet, PDF

5962-9222301M3X: DescriptionRegistered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28; Categorylogic logic; File Size164KB，7 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

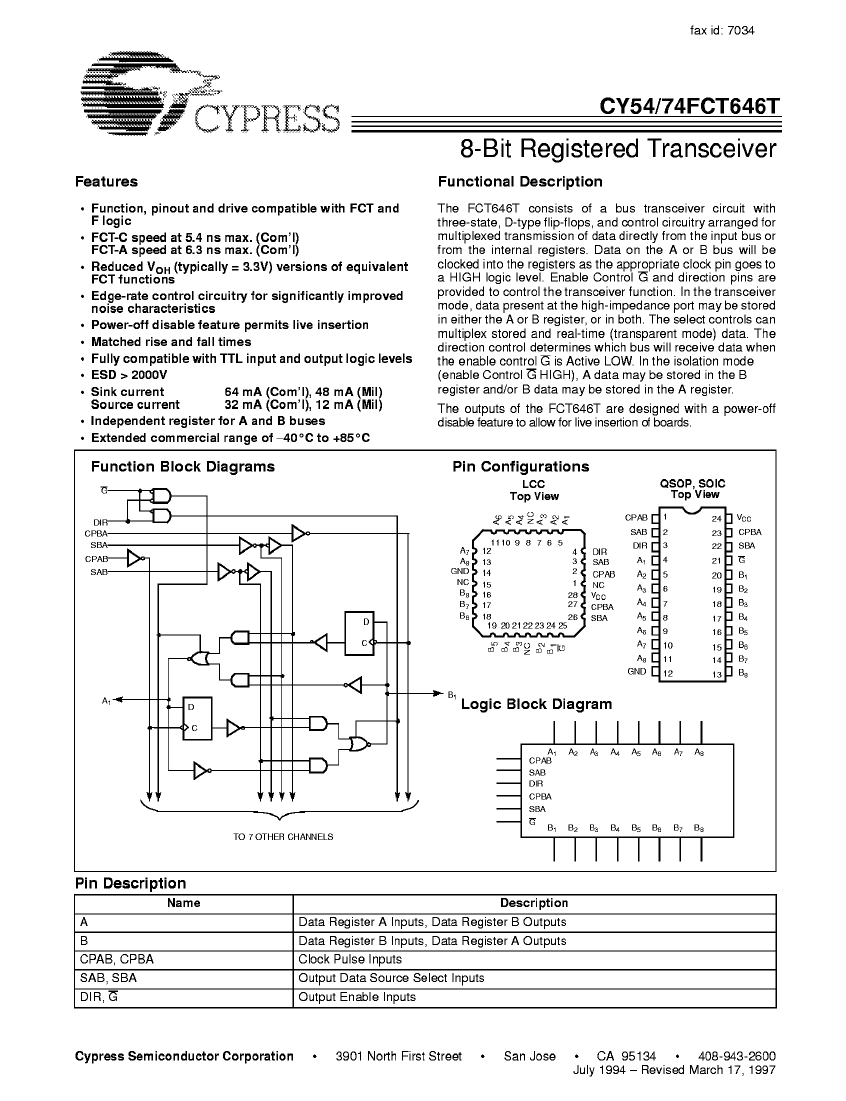

5962-9222301M3X Overview

Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
series	FCT
JESD-30 code	S-CQCC-N28
length	11.43 mm

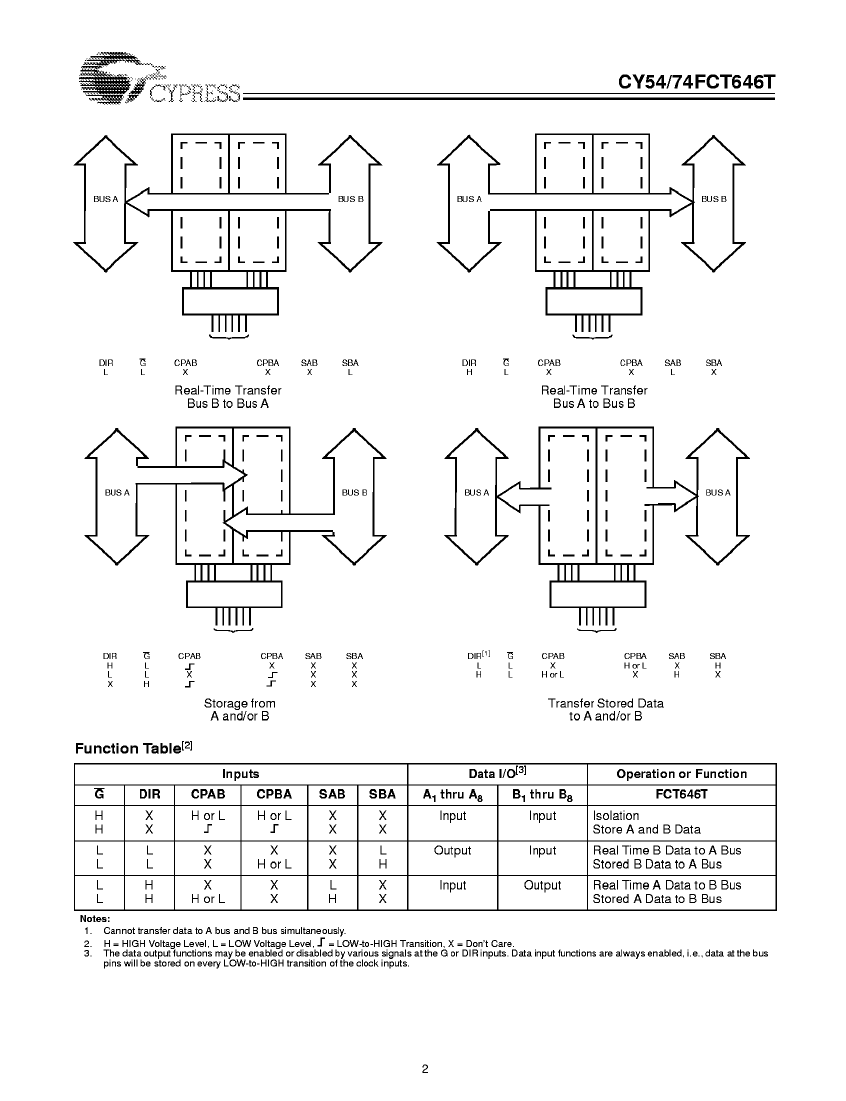

Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28

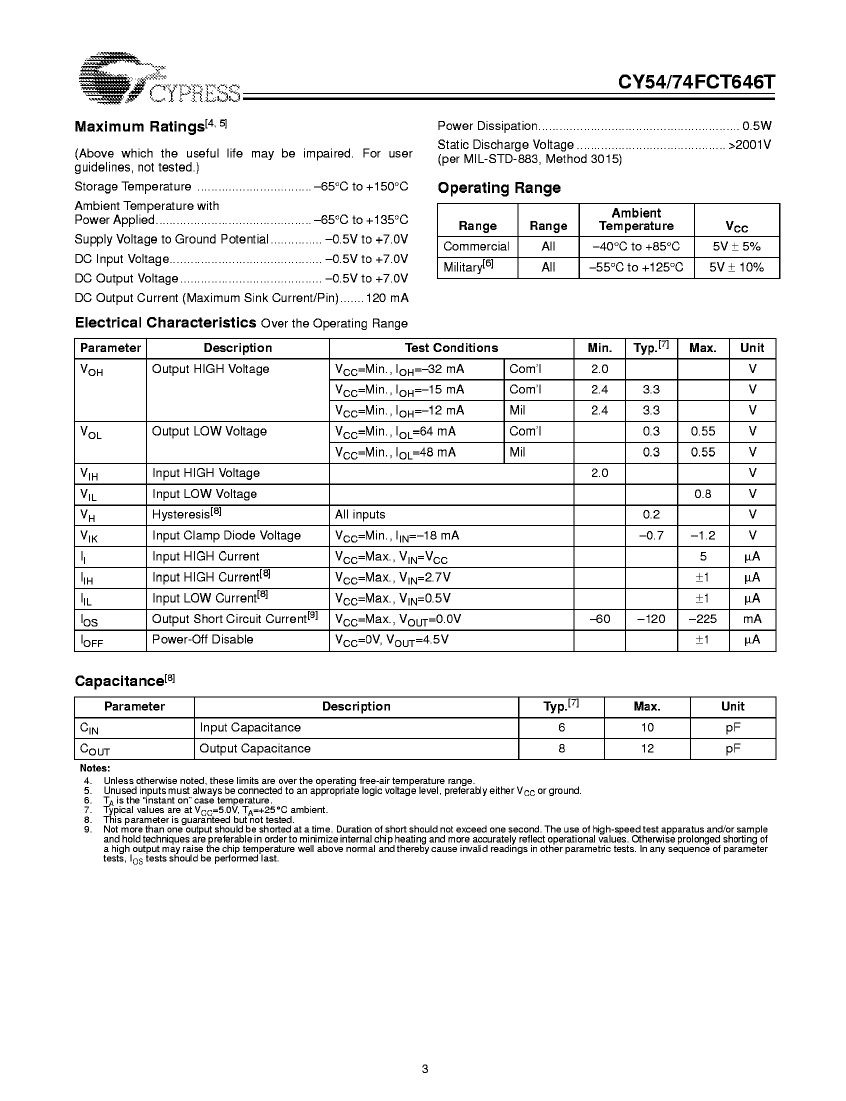

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	1.9812 mm

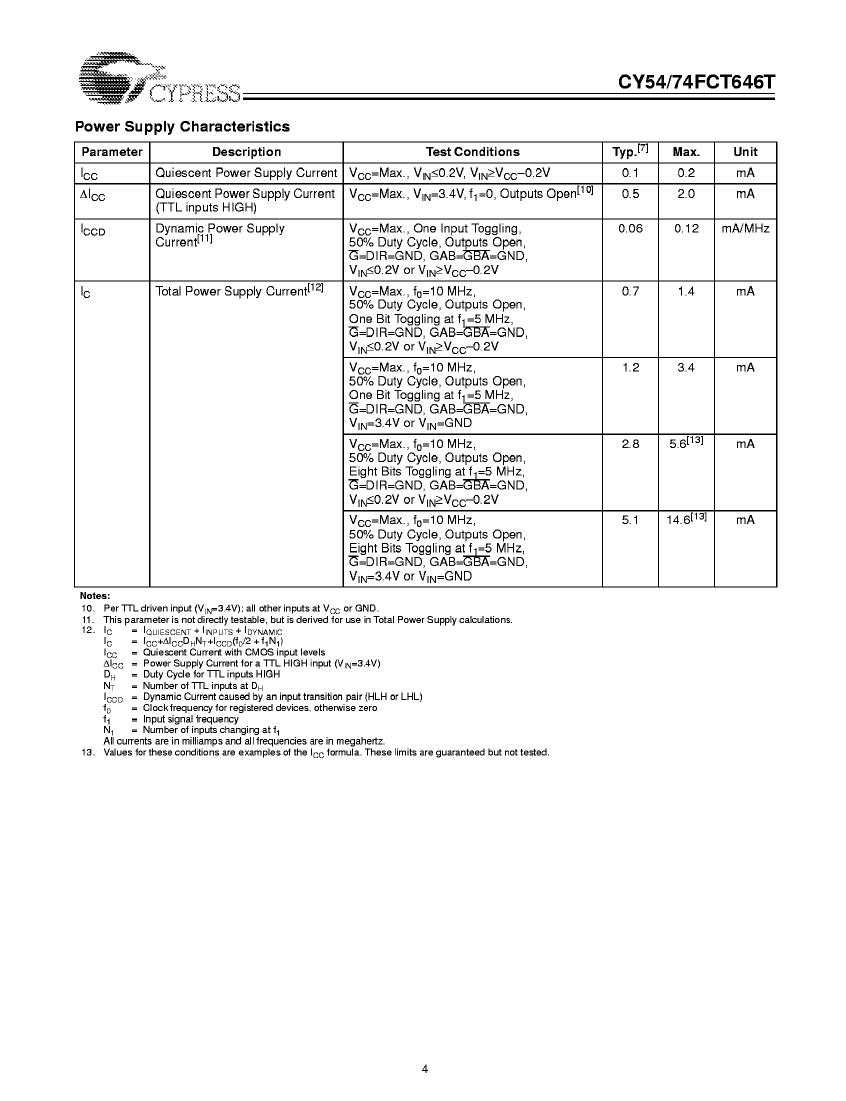

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

	5962-9222301M3X	5962-9222305M3X
Description	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28
Parts packaging code	QLCC	QLCC
package instruction	QCCN,	QCCN,
Contacts	28	28
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
series	FCT	FCT
JESD-30 code	S-CQCC-N28	S-CQCC-N28
length	11.43 mm	11.43 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	28	28
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum seat height	1.9812 mm	1.9812 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
width	11.43 mm	11.43 mm
Base Number Matches	1	1
