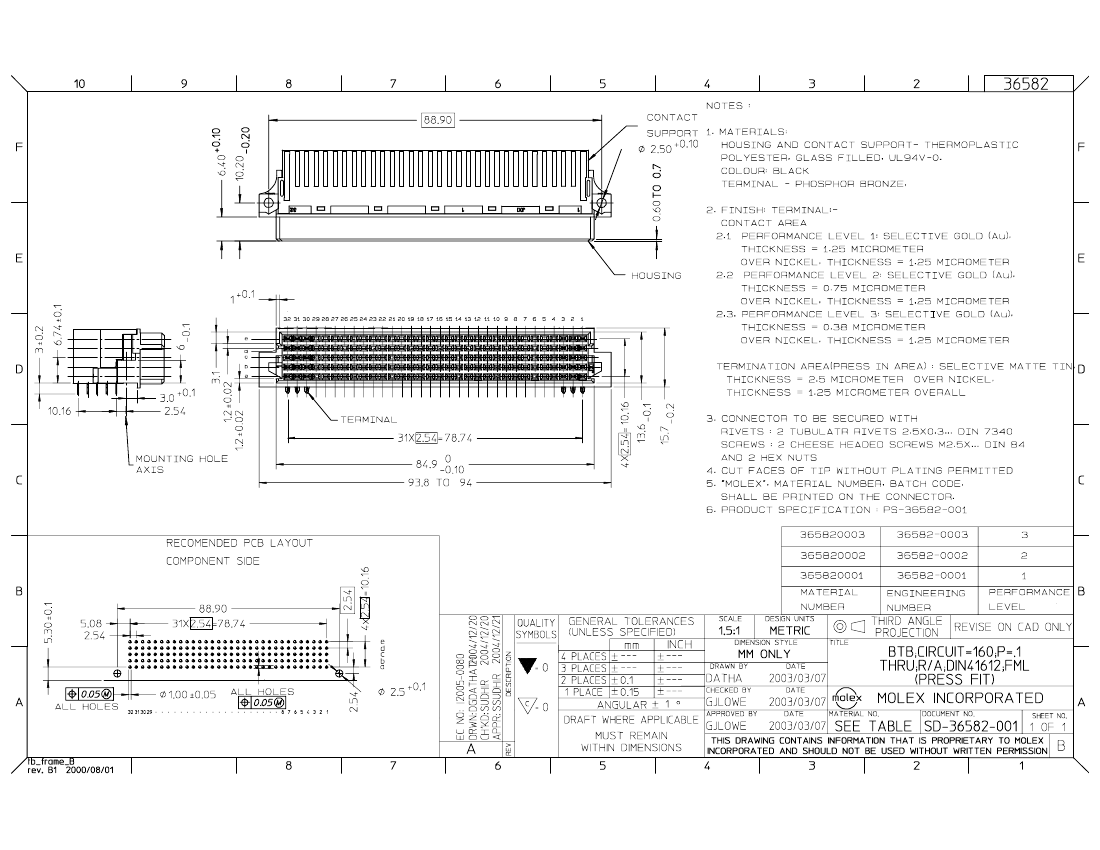

Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Plug
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| body width | 0.618 inch |
| body length | 3.692 inch |
| Body/casing type | PLUG |
| Connector type | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Durability | 50 Cycles |
| Insulation resistance | 1000000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| Manufacturer's serial number | 36582 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Loaded row name | A,B,C,D,E |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 15u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 2.54 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 160 |
| Base Number Matches | 1 |
| 36582-0003 | 0365820002 | 36582-0001 | |
|---|---|---|---|
| Description | Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Plug | conn rcpt 160pos RT ang T/H | Board Euro Connector, 160 Contact(s), 5 Row(s), Female, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Plug |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown |
| Body/casing type | PLUG | RECEPTACLE | PLUG |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU ON NI | NOT SPECIFIED | AU ON NI |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE |
| DIN compliance | YES | YES | YES |
| Manufacturer's serial number | 36582 | 36582 | 36582 |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Number of rows loaded | 5 | 5 | 5 |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 160 | 160 | 160 |
| Base Number Matches | 1 | 1 | 1 |
| body width | 0.618 inch | - | 0.618 inch |
| body length | 3.692 inch | - | 3.692 inch |
| Contact completed and terminated | TIN OVER NICKEL | - | TIN OVER NICKEL |
| Contact resistance | 20 mΩ | - | 20 mΩ |
| Contact style | SQ PIN-SKT | - | SQ PIN-SKT |
| Durability | 50 Cycles | - | 500 Cycles |
| Insulation resistance | 1000000000000 Ω | - | 1000000000000 Ω |
| Insulator color | BLACK | - | BLACK |
| insulator material | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER |
| Plug contact pitch | 0.1 inch | - | 0.1 inch |
| Match contact row spacing | 0.1 inch | - | 0.1 inch |
| Installation option 1 | LOCKING | - | LOCKING |
| Loaded row name | A,B,C,D,E | - | A,B,C,D,E |
| PCB row number | 5 | - | 5 |
| Maximum operating temperature | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | - | -55 °C |
| PCB contact pattern | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | - | 2.54 mm |
| Plating thickness | 15u inch | - | 50u inch |
| polarization key | POLARIZED HOUSING | - | POLARIZED HOUSING |
| Rated current (signal) | 1 A | - | 1 A |
| Guideline | UL | - | UL |
| reliability | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.118 inch | - | 0.118 inch |
