ø22mm - HW Series
Oiltight Switches & Pilot Devices
HW Series — 22mm IEC Style Global Pushbuttons
A3
Switches & Pilot Devices

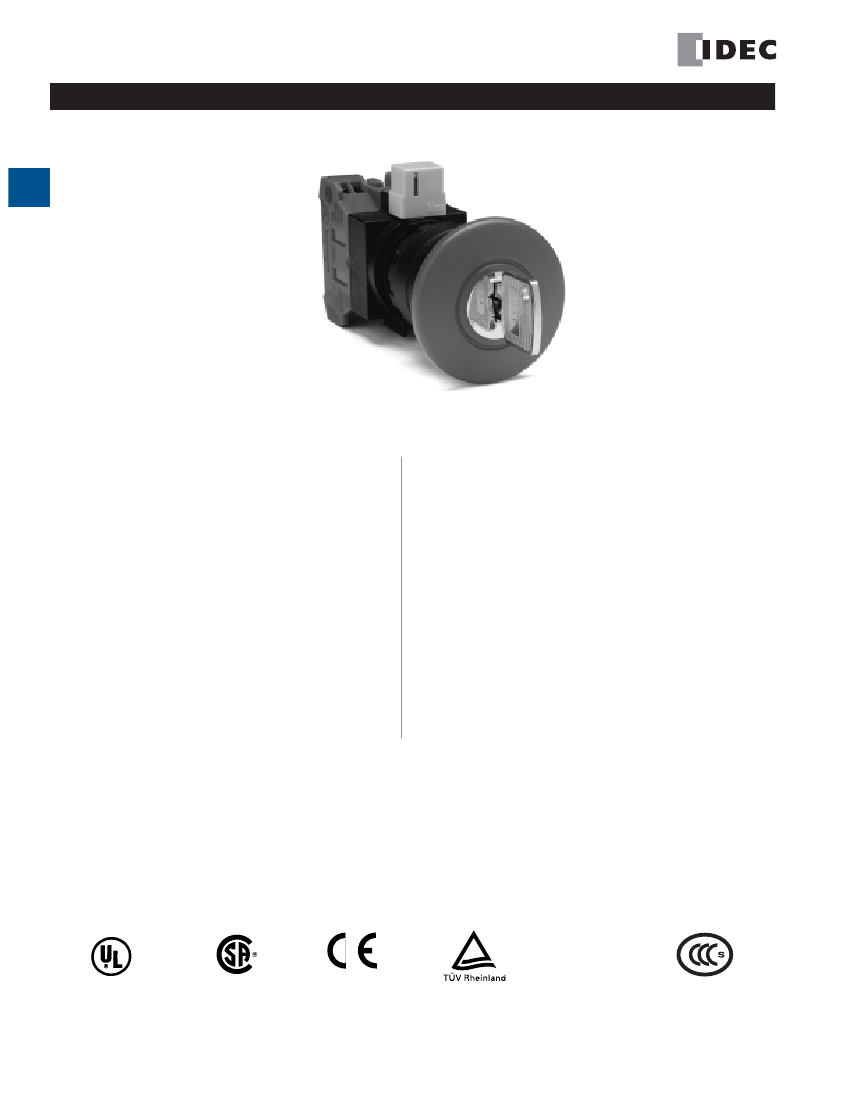

HW: The Best Engineered Switch in the World
Key features include:
• Locking lever removable contact blocks
• Finger-safe IP20 contacts as standard, other terminal
styles available
• Tamperproof construction
• All E-stops meet EN418 and are compliant with SEMI
S2 standards
• Worldwide approvals
• Easy to assemble
• Available assembled or as sub-components
• Choice of black plastic or metallic front bezels
• Incandescent or LED illumination
• Transformer or full voltage
• Slow make double break self cleaning contacts
IDEC’s HW switches are “The best engineered switch in the world” for a
reason. Carrying the CE mark, UL, CSA, CCC (Chinese), and TUV approv-
als, these switches are designed for use in almost any part of the world.
Complete with finger-safe contact blocks offering IP20 protection, these
7/8" (22mm) switches include illuminated and non-illuminated
pushbuttons, pilot lights, selector switches, and emergency stop
switches.
All switches also incorporate mechanically keyed safety locking levers,
ensuring correct installation and maintaining safety in high-vibration
applications.
File No. E68961
File No. LR92374
Registration No. R9551089 (E-stops)
Registration No. R50054316 (Dual Pushbuttons)
Registration No. J9650511 (Pilot Lights)
Registration No. J9551458 (all other switches)
Certificate No.
2005010305145656
A3-52
www.idec.com
USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
Oiltight Switches & Pilot Devices
Conforming to Standards
Approvals
EN60947-1, EN60947-5-1, VDE0660-200, UL508, CSA C22-2 No.14
ø22mm - HW Series
File No. E68961
File No. LR92374 Certificate No.
2005010305145656
Registration No. R9551089 (E-stops)
Registration No. J9551458 (all other switches)
Registration No. J9650511 (Pilot Lights)
CSA:
pushbuttons and selector switches: A600
pilot lights and illuminated pushbuttons, direct supply
pilot lights and illuminated pushbuttons with integral transformer
(100/110, 115, 120, 200/220, 230, 240, 380, 400/440, 480V)
UL:
pushbuttons and selector switches: A600
pilot lights and illuminated pushbuttons, direct supply
pilot lights and illuminated pushbuttons with integral transformer
(100/110, 115, 120, 200/220, 230, 240, 380, 400/440, 480V)
TÜV:
pushbuttons and selector switches: A600=P600 (NO, NC)/Q600 (NO-EM, NC-LB)
pilot lights and illuminated pushbuttons, direct supply
pilot lights and illuminated pushbuttons with integral transformer
(100/110, 115, 120, 200/220, 230, 240, 380, 400/440, 480V)
Operation: –25 to +50°C (without freezing), Storage: –40 to +70°C (without freezing)
10 to 55Hz, 98m/sec
2
(10G) conforming to IEC6068-2-6
980m/sec
2
(100G) conforming to IEC6068-2-7
Class 0 conforming to IEC60536
IP65 (from front of the panel)
IP20 (Type HW-F contact block)
NEMA 1, 2, 3, 3R, 3S, 4, 4X, 5, 12, 13 (from front of panel)
Momentary pushbuttons: 5,000,000 (900 operations per hour), All other switches: 500,000
3 for switches not using a transformer, 2 for switches using a transformer
AC-15: A600 or Ue = 250V, le = 3A (NO, NC, NO-EM, NC-LB)
DC-13: P600 or Ue = 125V, le = 1.1A (NO, NC)
DC-13: Q600 or Ue = 125V, le = 0.9A (NO-EM, NC-LB)
600V
Less than 4kV, conforming to IEC60947-1
4kV for contact circuit, 2.5kV for lamp circuit
10 Amp
5 mA at 3V AC/DC
Slow break NC or NO, self-cleaning
5.5mm to 10mm travel to latch
45N minimum force to latch
10mm maximum travel
1,800 operations per hour maximum for a Pushlock Turn Reset
900 operations per hour maximum for a Push-Pull
Flush and extended pushbuttons—with 1NO or 1NC contact: 6.2±2N (momentary), 7.0±2N (main-
tained)
Additional contacts—1NO or 1NC: +3.2N (momentary), + 3.3N (maintained)
Conforming to CENELEC EN50005
0.8 N m (7.1 in lb.)
10A 250V fuse conforming to IEC60269-1
Minimum 1 x 22 AWG, max. 2 x 14 AWG or 1 x 12 AWG
Initial contact resistance of 50mΩ or less
4mm (NO and NC), 2mm (NO-EM and NC-LB)
Reference Value: 1/4 HP @ 120V (1ø non-reversing), 1HP @ 240V (3ø non-reversing)
MTBF < 1 fault for 10 million operation cycles (3V DC, 5mA)
Incandescent: 1 W
LEDs: 6V/17mA max, 12V & 24V/11mA max, 120 & 240V/10mA max
40 A (40 ms)
Silver (gold plated contacts available - contact IDEC)
Type HW-C/HW-F /HW-G
600V
10A
AC-15 (A600)
DC-13 (P600)
24V
48V
—
—
A3
Switches & Pilot Devices
Operating Temperature
Vibration Resistance
Shock Resistance
Electric Shock Protection
Degree of Protection
(conforming to IEC60529)
(conforming to NEMA ICS6-110)
Mechanical Life
Pollution Degree (conforming to IEC60947-1)
Specifications
Rated Operational Characteristics
Rated Insulation Voltage
Rated Switching Over-Voltage
Rated Impulse Withstanding Voltage
Rated Thermal Current
Minimum Switching Capacity
Contact Operation
Positive Action Operation
(Emergency Stops with NC contacts)
Operating Force
Terminal Referencing
Recommended Terminal Torque
External Short-Circuit Protection
Applicable Wire Size
Contact Resistance
Contact Gap
Horsepower Rating
Electrical Reliability
Lamp Ratings
Maximum Inrush Current
Contact Material
Contact Ratings
Contact Block
Pushbuttons
Illuminated Pushbuttons
Selector Switches
Illuminated Selector Switches
Pushbutton Selectors
Operational Voltage
AC
50/60
Hz
DC
Rated Insulation Voltage
Rated Continuous Current
Contact Ratings by Utilization Category
IEC 60947-5-1
Characteristics
50V
10A
7A
—
—
110V
10A
5A
2.2A
1.1A
220V
6A
3A
1.1A
0.6A
440V
2A
1A
—
—
AC-12 Control of resistive loads & solid state loads
AC-15 Control of electromagnetic loads (> 72VA)
DC-12 Control of resistive loads & solid state loads
DC-13 Control of electromagnets
10A
10A
8A
5A
Operational
Current
5A
2A
1. For dimensions, see page A3-100.
2. For life expectancy derating curves, see page A3-105.
www.idec.com
USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
A3-53
ø22mm - HW Series
Oiltight Switches & Pilot Devices

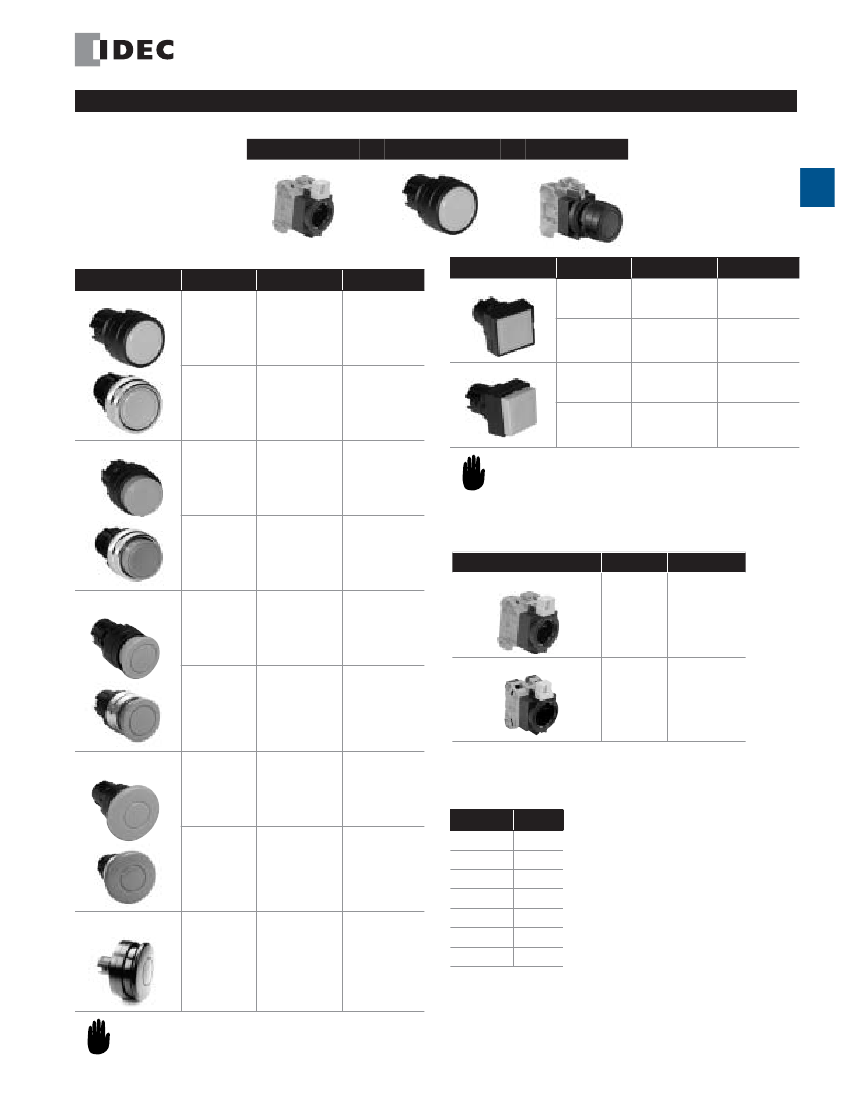

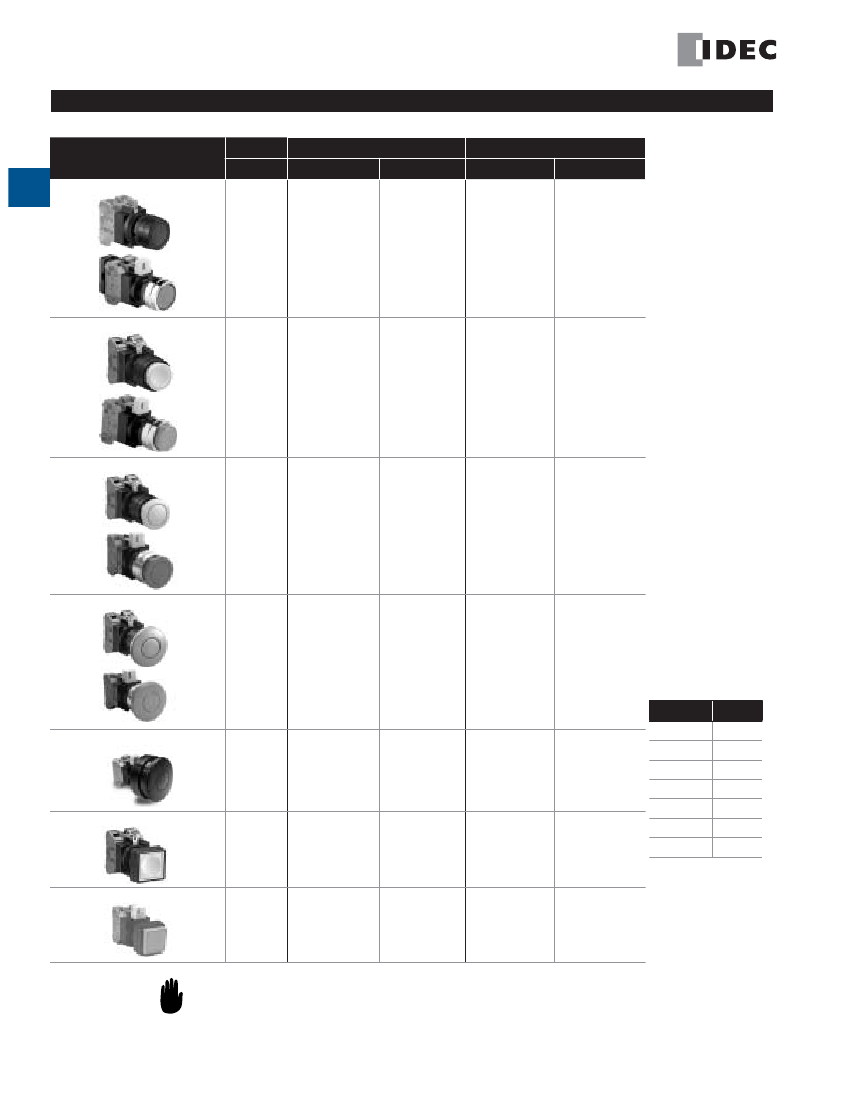

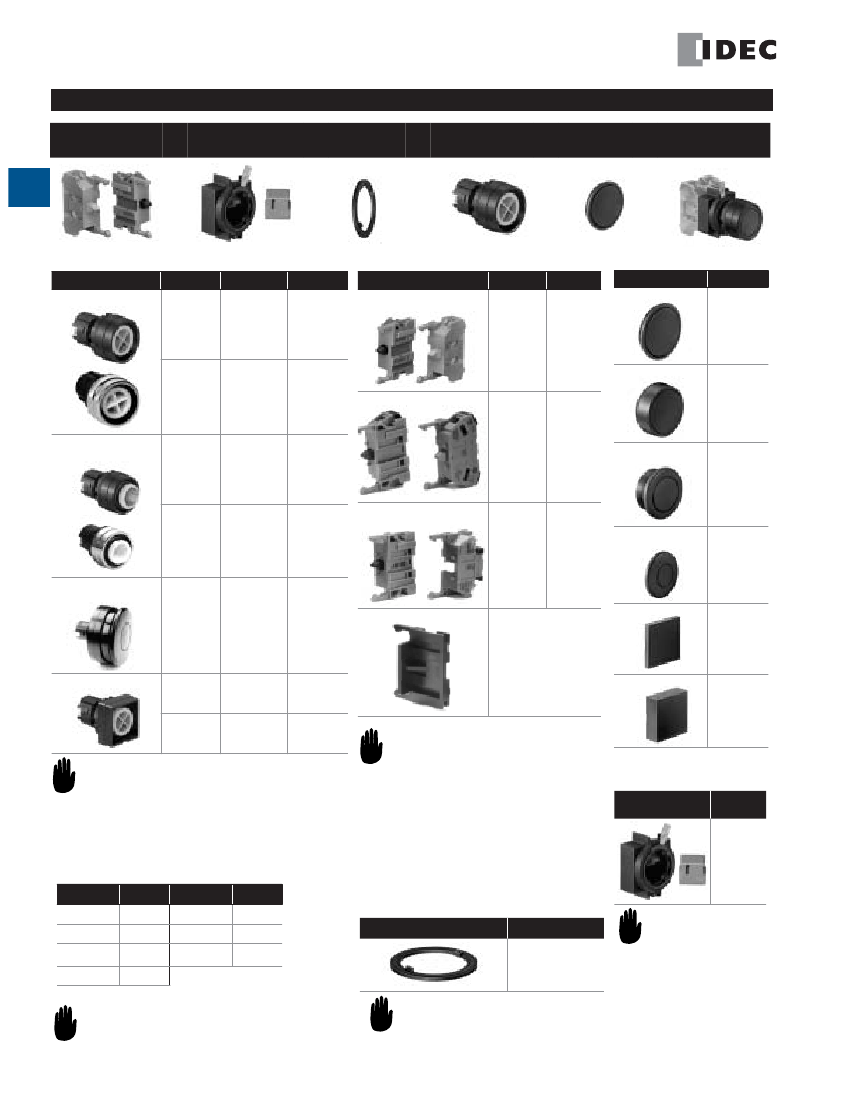

Non-Illuminated Pushbuttons (Sub-Assembled)
Contact Blocks
+
Adaptor & Safety
Lever Lock
+
Anti-Rotation
Ring
+
Operator
+
Button
=
Complete Part
A3
Switches & Pilot Devices
Part Numbers: Operators
Style
Round Flush/Extended
Part Numbers: Contact Blocks
Plastic Bezel Metal Bezel
Style
Standard Fingersafe Contacts
(IP20)
Part Numbers: Buttons
1NC
Style
Round Flush
1NO
Part Number
Momentary
HW1B-M0
HW4B-MO
HW-F10
HW-F10R
(early make)
HW-F01
HW-F01R
(late break)
Round Extended
HW1A-B1-➀
Maintained
HW1B-A0
HW4B-AO
Spring-Up Terminal Contacts
HW1A-B2-➀
HW-G10
HW-G01
HW-G01R
(late break)
Ø 29mm
Mushroom Cap
HW1A-B3-➀
Ø 29mm Mushroom
Ø 40mm Mushroom
Momentary
HW1B-M0L
HW4B-MOL
HW-G10R
(early make)
Exposed Screw Terminal
Contacts
Maintained
HW1B-A0L
HW4B-AOL
HW-C10
HW-C10R
(early make)
HW-C01
HW-C01R
(late break)
Ø40mm
Mushroom Cap
HW1A-B4-➀
Ø 60mm Jumbo Mush-
room
Dummy Block
Square Flush
HW2A-B1-➀
TW-DB
Square Flush Extended
Square Extended
Momentary
HW1B-M5-➀*
–
Momentary
HW2B-M0
Maintained
HW2B-A0
1. In place of
➀,
specify the Button Color
Code from table below.
2. *60mm mushroom operator includes
non-removable button (available in red,
black, green and yellow only).
3. For nameplates and accessories, see
page A3-96.
4. For dimensions, see page A3-100.
–
HW2A-B2-➀
–
①
Button Color Code
Color
Code
Color
Black
Green
Red
Blue
B
G
R
S
White
Yellow
Grey
1. All assembled part numbers in catalog include
standard (HW-F...) contacts.
Part Number: Contact
2. Assembled units with spring-up terminals
(HW-G...) can be ordered by removing an “F”
Block Mounting Adaptor
(safety lever lock included)
from the part number (Ex. HW1B-M1F11-R
Part
becomes HW1B-M111-R).
Style
Number
3. Units with exposed screw terminals (HW-C...)
must be ordered as sub-components.
4. All contacts (including non-fingersafe versions)
are UL, CSA, and IEC compliant and carry the
HW-CB2C
CE mark.
Code
W
Y
N
†
Part Numbers: Anti-Rotation Ring
Appearance
Part Number
HW9Z-RL
1. HW1B-M5 available only in black, red
green and yellow.
2.
†
Grey available for round flush only.
Use with notched panel cutout
to prevent unit rotation.
1. Used to mount con-
tact blocks to oper-
ator (first pair only).
2. IDEC strongly recommends
using the safety lever lock
(included) to prevent heavy
vibration or maintenance per-
sonnel from inadvertently
unlocking contacts.
A3-56
www.idec.com
USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
