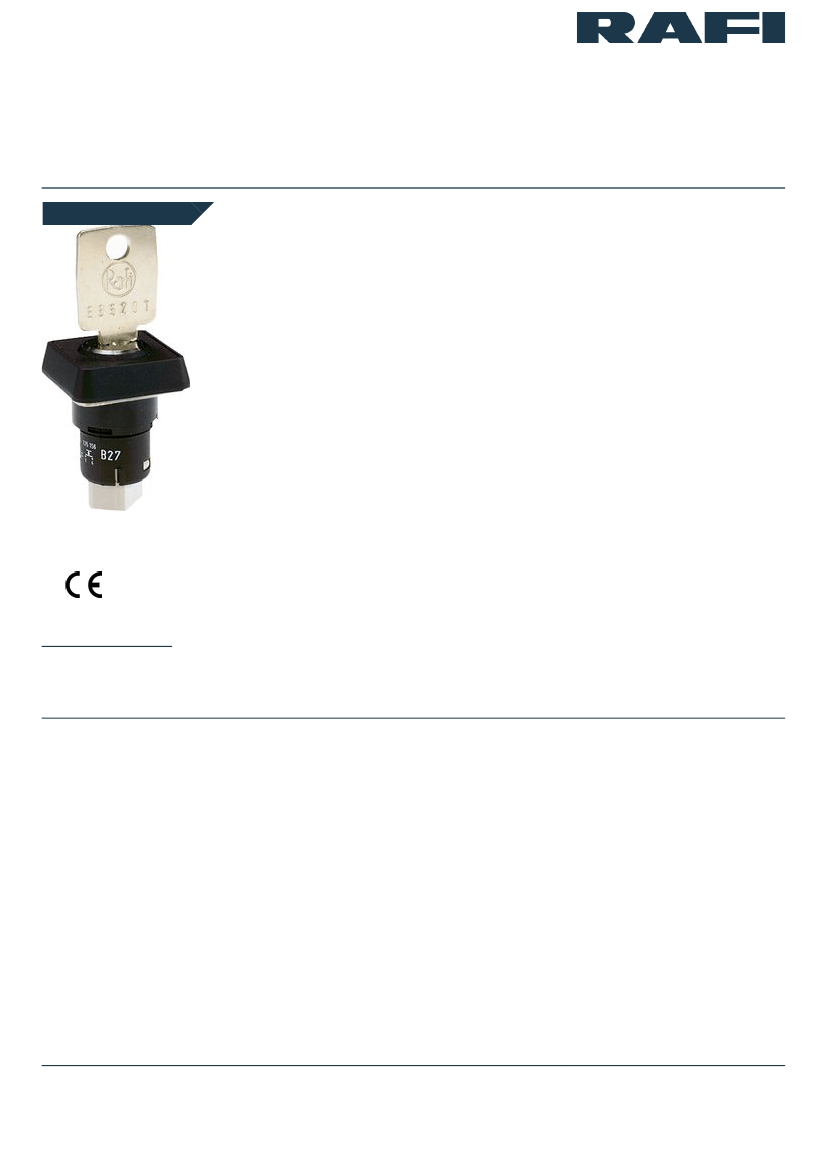

technical data sheet
1.15.156.301/0000
LUMOTAST 25, keylock switch, 1 removal position, 1 NO, Gold,
Male quick connector / plug-in socket, 90°, latching, key removal
position 0
DISCONTINUED
fields of application
special features
Measurement-control-regulation
Mechanical and system engineering
Signalling systems
Mounting hole diameter 16.2 mm
Switching position: 1 x 90° latching
Mounting depth behind the front panel
only 30.7 mm with female quick
connector
Gold contacts for safe switching
Reverse-polarity-secured terminal with 4-
pole male quick connector and crimped
ribbon cable
Alternative: terminal with plug-in socket in
PCB
Water jet protection class IP 65 on front
1 NO gold contact (max. 35 V/100 mA)
description
lock manufacturer Kaba
technical data
general
illuminated
Bezel color
Collar shape
Operating temperature, min.
Operating temperature, max.
Storage temperature, min.
Storage temperature, max.
Packaging
Packaging unit
Operating life
Degree of protection, front side,
according to DIN EN 60529
RoHS compliant
REACH compliant
No
black
square
-25 °C
70 °C
-40 °C
80 °C
Box
2 pcs.
50,000 Cycles
IP65
Yes
Yes
direct links
RAFI eCatalog
mounting diameters
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date: Dec
13, 2019 page: 1/3
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi.de,
info@rafi.de
technical data sheet
1.15.156.301/0000
Mounting hole
Mounting depth
Installation height
Outside dimension, length
Outside dimension, width
Actuation function
Operating torque
Contact function
Contact system
Contact material
Locking position
Number of locking positions
Key removal position
Rotating angle
Fixing
Terminal on the rear
Rated voltage, min.
Rated voltage, max.
Rated current, min.
Rated current, max.
16.2 mm
30.7 mm
32.3 mm
25 mm
25 mm
latching
1.5 Nm
1 NO
Snap-action contact
Gold
10000
10,000
0
90°
Threaded ring
Male quick connector / plug-in socket
0.02 V
35 V
0.0001 A
0.1 A
mechanical data
electrical data
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
date: Dec
13, 2019 page: 2/3
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi.de,
info@rafi.de
technical data sheet
1.15.156.301/0000
drawings
Dimensioned drawing
System drawing
System drawing
Mounting hole drawing
