Surface Mount Common Mode Choke
100
µH
Inductance Min.
0.8Amp DC
(Parallel Connection)
2500 V
RMS
Min.
In-Circuit Connections
Short 1-2, 3-4, 5-6 & 7-8
D.C.R 53 mΩ
S.R.F. 4.3 MHz
Schematic Diagram

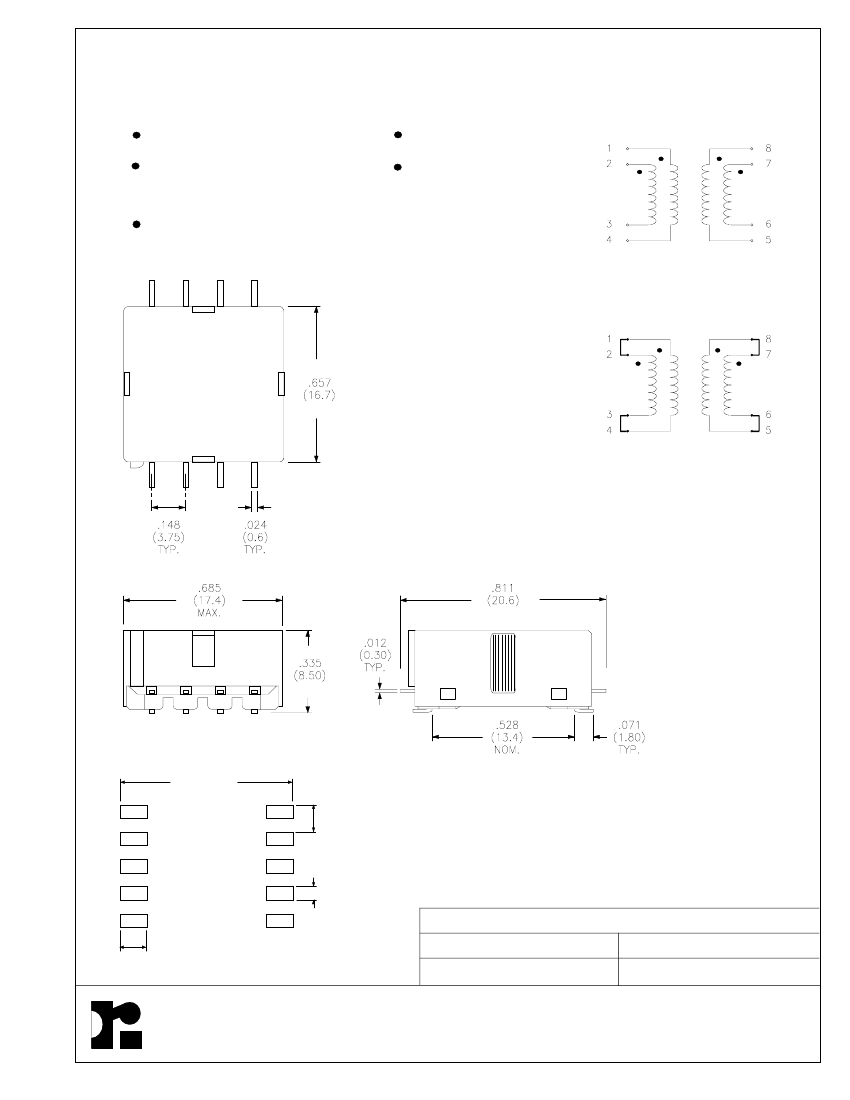

Physical Dimensions
inches (mm)
.700
(17.8)
1
2
3
4
5
10
Suggested
Pad Layout
9
8
7
.150
(3.75)
TYP.
.078
(2.0)
TYP.
.110
(2.80)
TYP.
6
RHOMBUS P/N: L-37203
CUST P/N:
DATE: 3/11/99
NAME:
SHEET:
1 OF 1
Rhombus
Industries Inc.
Transformers & Magnetic Products
15801 Chemical Lane, Huntington Beach, CA 92649
Phone: (714) 898-0960
FAX: (714) 896-0971
www.rhombus-ind.com
