286216012100808 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 286216012100808

286216012100808: DescriptionCard Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

286216012100808 Overview

Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal

286216012100808 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

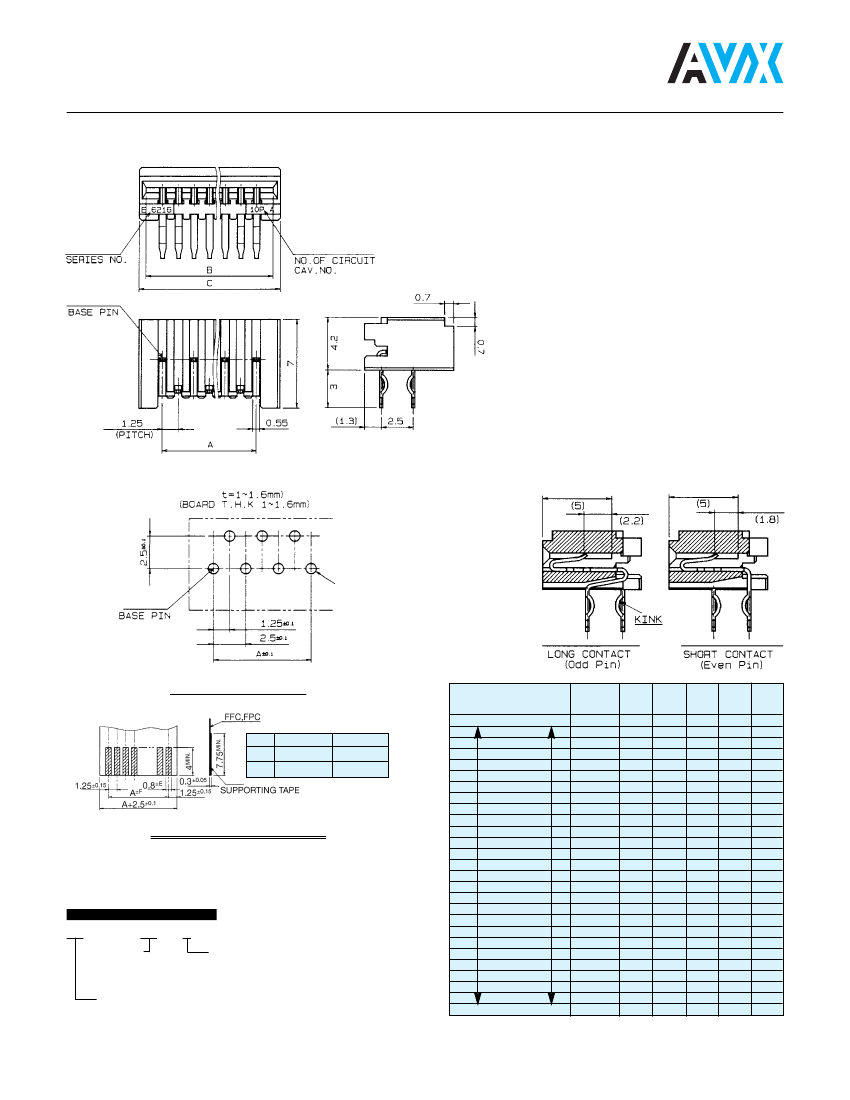

1.25mm Pitch

Series 6216

LIF Right Angle Through-Hole

(Bottom Contact)

Specifications

•

Number of Contacts – 4-40

•

Tube Packaged or Tray Packaged

•

Voltage – 200 V

•

Current Rating – 1.0 amp max.

•

Dielectric Withstanding Voltage –

500V RMS min.

•

Operating Temperature – (-20°C - +85°C)

•

Contact Material – phosphor bronze

(tin-lead plated)

•

Insulator Material – glass-filled PBT,

(UL 94 V-O) black color

•

FFC/FPC Thickness – 0.3 ±0.05 mm

(0.012 ±0.002")

•

PCB Thickness - 1.0-1.6mm (0.039-0.633")

•

Profile Height – Straight – 7.0mm (0.276")

Right Angle – 4.2mm (0.165")

•

Reverse footprint for straight type also

available – contact sales office for details

MOUNTING LAYOUT

PART NUMBER

NO. OF

CONTACTS

QTY.

PER

TUBE

QTY.

PER

TRAY

FFC

±0.03

±0.1

FPC

±0.1

±0.05

FFC, FPC SPECIFICATION

ORDERING CODE

XX 6216 0XX 10X 808

NUMBER OF

CONTACTS

(04-30)

00:TRAY PACKAGE

28:TUBE PACKAGE

VARIATION CODE

0:WITH KINKED LEGS

(EACH TWO PINS AT BOTH ENDS)

1:WITHOUT KINKED LEGS

XX 6216 004 10X 808

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

XX 6216 030 10X 808

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

15.00

16.25

17.50

18.75

20.00

21.25

22.50

23.75

25.00

26.25

27.50

28.75

30.00

31.25

32.50

33.75

35.00

36.25

6.41

7.66

8.91

10.16

11.41

12.66

13.91

15.16

16.41

17.66

18.91

20.16

21.41

22.66

23.91

25.16

26.41

27.66

28.91

30.16

31.41

32.66

33.91

35.16

36.41

37.66

38.91

7.50

8.75

10.00

11.25

12.50

13.75

15.00

16.25

17.50

18.75

20.00

21.25

22.50

23.75

25.00

26.25

27.50

28.75

30.00

31.25

32.50

33.75

35.00

36.25

37.50

38.75

40.00

480

410

360

320

280

260

240

220

200

190

180

160

150

140

130

120

110

100

(Dimensions: mm)
