361-994-0630H

Description
Blindmate Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Receptacle
CategoryThe connector    The connector
File Size107KB,1 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric View All

361-994-0630H Overview

Blindmate Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Receptacle

361-994-0630H Parametric

Parameter NameAttribute value
MakerWinchester Electronics
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLE: RG 316
Body/casing typeRECEPTACLE
Characteristic impedance50 Ω
Connector typeBLINDMATE CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL (50)
Contact completed and terminatedGOLD (30) OVER NICKEL (50)
Contact point genderMALE
Coupling typeSLIDE ON
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.13 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number361-994-0630H
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP
voltage standing wave ratio1.03
Base Number Matches1

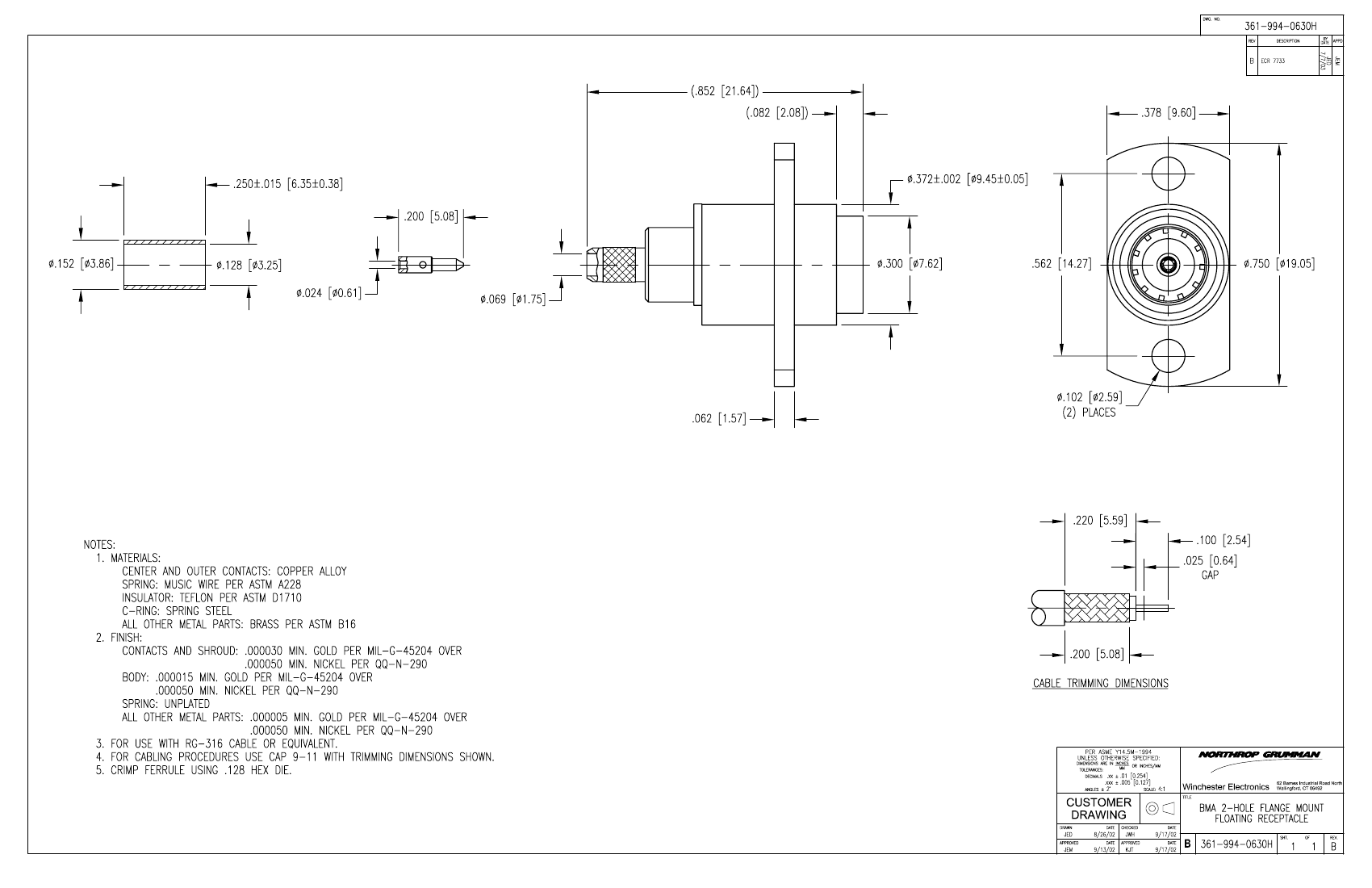

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.
