35.100MHZUM-5SMD/10/3/0+50/32 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 35.100MHZUM-5SMD/10/3/0+50/32

35.100MHZUM-5SMD/10/3/0+50/32: DescriptionParallel - 3Rd Overtone Quartz Crystal, 35.1MHz Nom, UM-5, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size145KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric Compare View All

35.100MHZUM-5SMD/10/3/0+50/32 Overview

Parallel - 3Rd Overtone Quartz Crystal, 35.1MHz Nom, UM-5, SMD, 2 PIN

35.100MHZUM-5SMD/10/3/0+50/32 Parametric

Parameter Name	Attribute value
Maker	Euroquartz
package instruction	UM-5, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	AT-CUT; BULK
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.0003%
frequency tolerance	10 ppm
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	35.1 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
physical size	L7.8XB6.0XH3.5 (mm)/L0.307XB0.236XH0.138 (inch)
Series resistance	60 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

UM-1SMD amd UM-5SMD Crystals

1.0MHz to 200.0MHz

SMD form of UM-1 & UM-5 Crystals

Tight tolerance and stability, ideal for comms. applications

AT-Cut round crystal blank, optimized for low harmonics

Available up to 200MHz using 5th overtone mode

Annealed and pre-aged for low frequency drift

Surface mount assembly

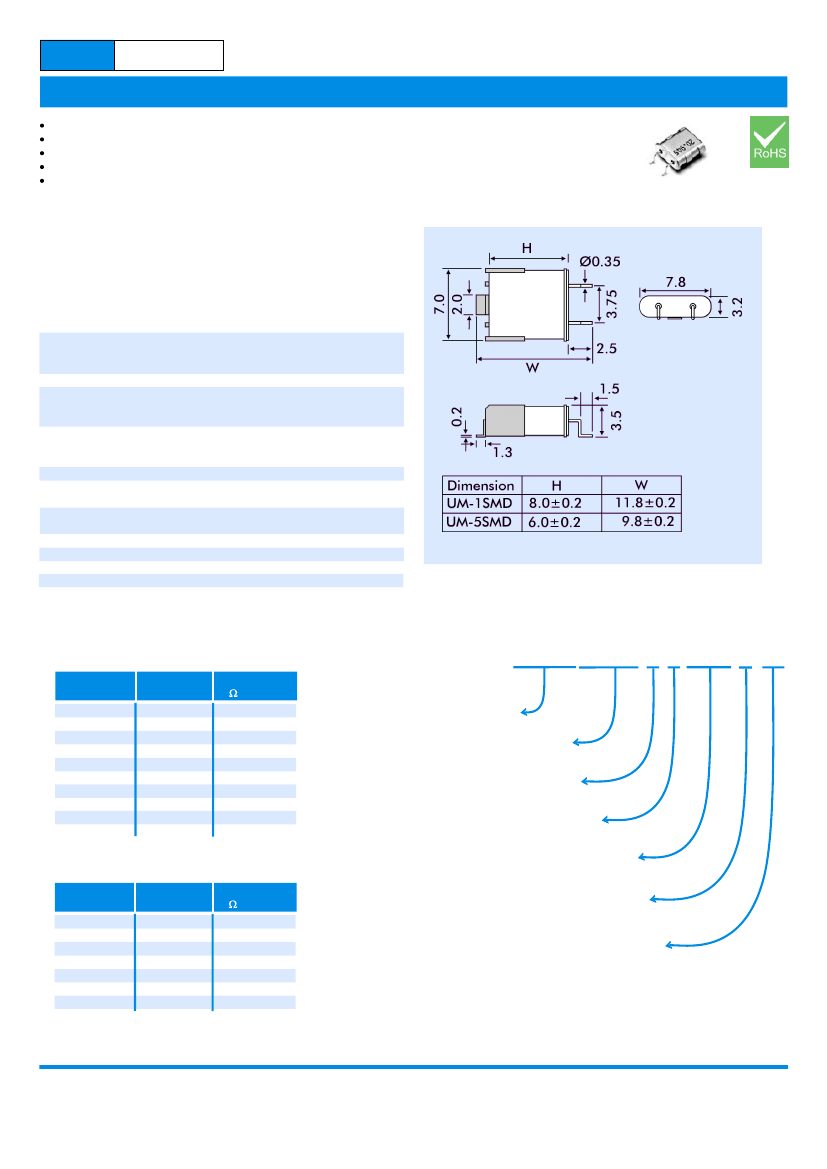

OUTLINE & DIMENSIONS

DESCRIPTION

UM-1SMD and UM-5SMD crystals are standard UM-1 and UM-5

crystals with ormed leads and fitted with a clip to enable surface

mounting. This offers the benefits of maintaining a highly specified

crystal while facilitating surface mount assembly.

SPECIFICATION

Frequency Range

UM-1SMD:

UM-5SMD:

Oscillation Mode:

Calibration Tolerance at 25ºC

SL-Cut (<1.3MHz):

AT-Cut (>4.0MHz):

Frequency Tolerance

SL-Cut:

AT-Cut:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive Level:

Crystal Holder:

Supply format:

RoHS Status:

1.0MHz to 200MHz

10MHz to 200MHz

See table

from ±50ppm

from ±3ppm

from ±100ppm -10° to +60°C

from ±3ppm 0° to +50°C

4pF typical, 7pF maximum

Series or from 8pF to 32pF

(Customer

specified CL)

±3ppm maximum, 1st year,

±1ppm per year thereafter.

100mWatts typ., 500mWatts max.

Resistance-weld hermetic seal

Bulk pack

RoHS Compliant and pB free

FREQUENCY, OSCILLATION MODE, ESR

UM-1SMD

Frequency

Range MHz

1.0 ~1.2

6.0 ~ 6.9

7.0 ~ 7.9

8.0 ~ 8.9

9.0 ~ 10.9

11.0 ~ 12.9

13.0 ~ 45.0

30.0 ~ 50.0

50.1 ~ 100.0

80.0 ~ 200.0

UM-5SMD

Frequency

Range MHz

10.0 ~ 11.9

12.0 ~ 14.9

15.0 ~ 35.0

35.1 ~ 90.0

90.0 ~ 135.0

90.0 ~ 159.0

160.0 ~ 200.0

Crystal Cut/

Oscill. Mode

AT Fund.

AT 3rd o.t.

AT 3rd o.t

AT 5th o.t.

ESR

Max.

100

Crystal Cut/

Oscill. Mode

SL Fund.

AT Fund.

AT 3rd o.t.

AT 5th o.t

ESR

Max.

100

PART NUMBER FORMAT

Example:

8.000MHz UM-1SMD/10/10/-20+70/32/ 80R

Frequency in MHz

Package

UM-1SMD or UM-5SMD

Calibration tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

(Lower and upper limits)

Load Capacitance

(Either SR for series or CL in pF)

Equivalent Series Resistance

(Optional - use when special

value is required)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
