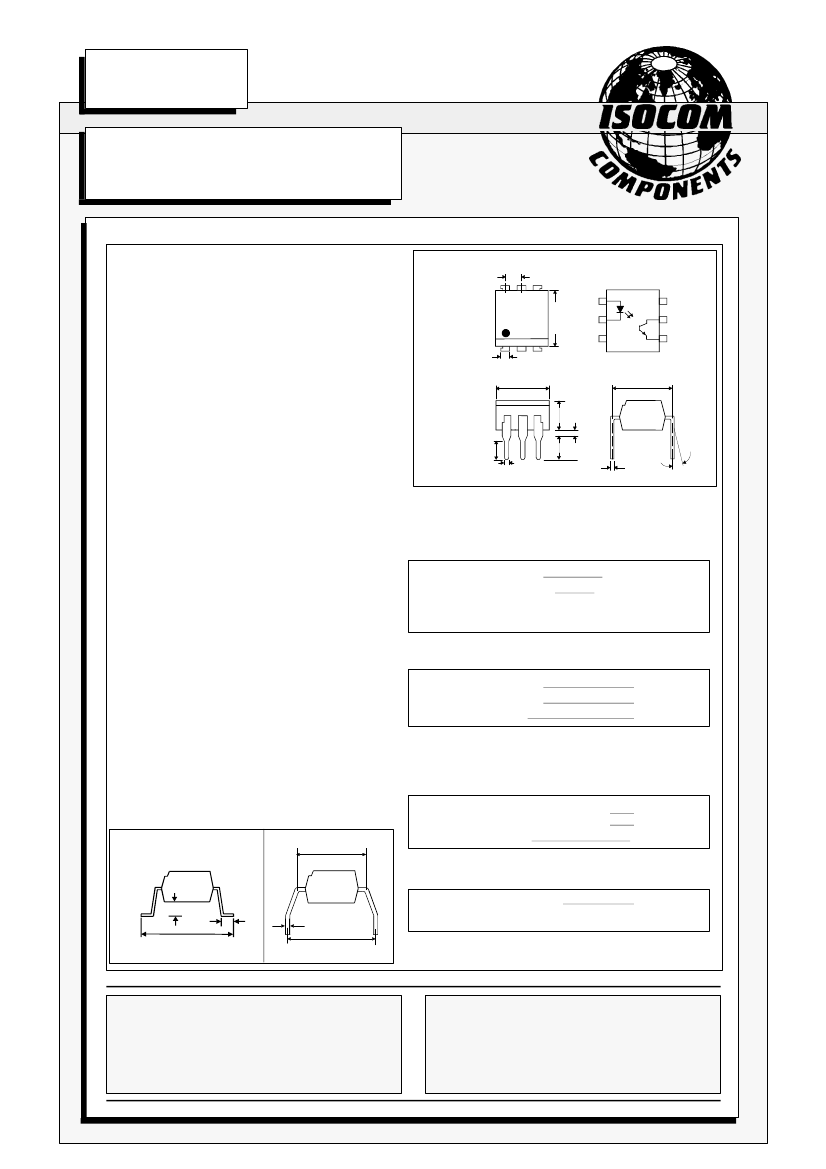

CNX62A
NON-BASE LEAD
OPTICALLY COUPLED ISOLATOR
PHOTOTRANSISTOR OUTPUT
APPROVALS
l
UL recognised, File No. E91231
2.54
7.0
6.0
1.2
1
2
3
Dimensions in mm
6
5
4
'X' SPECIFICATION APPROVALS
l
VDE 0884 approval pending
l
EN60950 approval pending
6.62
4.0
3.0
0.5
3.0
0.5
3.35
7.62
DESCRIPTION
The CNX62A optically coupled isolator
consists of an infrared light emitting diode and
a NPN silicon photo transistor in a standard 6
pin dual in line plastic package with the base
pin unconnected.
FEATURES
l
Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.
l
High Current Transfer Ratio (40% min)
l
Low Saturation Voltage suitable for TTL
integrated circuits
l
High BV
CEO
(50V min)
l
High Isolation Voltage (5.3kV
RMS
,7.5kV
PK
)
l
Base pin unconnected for improved noise
immunity in high EMI environment
APPLICATIONS
l
DC motor controllers
l
Industrial systems controllers
l
Signal transmission between systems of
different potentials and impedances
OPTION SM
SURFACE MOUNT
OPTION G
13°
Max
0.26
ABSOLUTE MAXIMUM RATINGS
(25°C unless otherwise specified)
Storage Temperature
-55°C to + 150°C
Operating Temperature
-55°C to + 100°C
Lead Soldering Temperature
(1/16 inch (1.6mm) from case for 10 secs) 260°C
INPUT DIODE
Forward Current
Reverse Voltage
Power Dissipation
60mA
6V
105mW
OUTPUT TRANSISTOR
Collector-emitter Voltage BV
CEO
Emitter-collector Voltage BV
ECO
Power Dissipation
POWER DISSIPATION
50V
6V
160mW
7.62
0.6
0.1
10.46
9.86
1.25
0.75
0.26
10.16
Total Power Dissipation
200mW
(derate linearly 2.67mW/°C above 25°C)
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, Cleveland, TS25 1YD
Tel: (01429) 863609 Fax :(01429) 863581
7/12/00
ISOCOM INC
1024 S. Greenville Ave, Suite 240,
Allen, TX 75002 USA
Tel: (214) 495-0755 Fax: (214) 495-0901
e-mail info@isocom.com
http://www.isocom.com
DB90037m-AAS/A1
ELECTRICAL CHARACTERISTICS ( T
A
= 25°C Unless otherwise noted )
PARAMETER
Input
Forward Voltage (V
F
)
Reverse Voltage (V
R
)
Reverse Current (I
R
)
Collector-emitter Breakdown (BV
CEO
)
( Note 2 )
Emitter-collector Breakdown (BV
ECO
)
Collector-emitter Dark Current (I
CEO
)
Current Transfer Ratio (I
C
/ I
F
)
(Note 2)
MIN TYP MAX UNITS
1.2
6
10
50
6
50
1.5
V
V
µ
A
V
V
nA
TEST CONDITION
I
F
= 10mA
I
R
= 10
µ
A
V
R
= 6V
I
C
= 1mA
I
E
= 100
µ
A
V
CE
= 10V
10mA I
F
, 0.4V V
CE
10mA I
F
, 5V V
CE
0.4
5300
7500
V
V
RMS
V
PK
Ω
Output
Coupled
0.4
1.5
Collector-emitter Saturation VoltageV
CE (SAT)
Input to Output Isolation Voltage V
ISO
10mA I
F
, 4mA I
C
See note 1
See note 1
V
IO
= 500V (note 1)
V
CC
= 5V , I
C
= 2mA ,
R
L
= 100
Ω
V
CC
= 5V , I
C
= 2mA ,
R
L
= 1k
Ω
Input-output Isolation Resistance R
ISO
5x10
10
Turn-on Time
Turn-off Time
Turn-on Time
Turn-off Time
t
on
t
off
t
on
t
off
3
3
12
12
µ
s
µ
s
µ
s
µ
s
Note 1
Note 2
Measured with input leads shorted together and output leads shorted together.
Special Selections are available on request. Please consult the factory.
7/12/00
DB90037m-AAS/A1
Collector Power Dissipation vs. Ambient Temperature
200
Collector power dissipation P
C
(mW)
Collector Current vs. Collector-emitter Voltage
50
T
A
= 25°C
50
30
20
15
20
10
0
10
I
F
= 5mA
150
Collector current I
C
(mA)
40
30
100
50
0
-30
0
25
50
75
100
125
Ambient temperature T
A
( °C )
(V)
Forward Current vs. Ambient Temperature
80
70
Forward current I
F
(mA)
60
50
40
30
20
10
0
-30
0
25
50
75
100
125
Ambient temperature T
A
( °C )
Relative Current Transfer Ratio
vs. Ambient Temperature
1.5
Relative current transfer ratio
0
2
4
6
8
10
Collector-emitter voltage V
CE
( V )
Collector-emitter Saturation
Voltage vs. Ambient Temperature
0.28
0.24
0.20
0.16
0.12
0.08
0.04
0
-30
0
25
50
75
100
Ambient temperature T
A
( °C )
Relative Current Transfer Ratio
vs. Forward Current
2.8
Relative current transfer ratio
I
F
= 10mA
I
C
= 4mA
I
F
= 10mA
V
CE
= 0.4V
Collector-emitter saturation voltage V
CE(SAT)
2.4
2.0
1.6
1.2
0.8
0.4
0
1
2
V
CE
= 0.4V
T
A
= 25°C
5
10
20
50
1.0
0.5
0
-30
0
25
50
75
Ambient temperature T
A
( °C )
100
Forward current I
F
(mA)
DB90037m-AAS/A1
7/12/00
