BI1.5-EG08-AP6X-0.2-RS4T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> BI1.5-EG08-AP6X-0.2-RS4T

Preview

BI1.5-EG08-AP6X-0.2-RS4T: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size376KB，3 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI1.5-EG08-AP6X-0.2-RS4T Overview

Inductive Sensor,

BI1.5-EG08-AP6X-0.2-RS4T Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Other features	IP67; SHORT CIRCUIT PROTECTION; REVERSE POLARITY PROTECTION
body height	42 mm
Body length or diameter	8 mm
shell	STAINLESS STEEL
Installation features	FLUSH MOUNT
Maximum working current	150 mA
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Output interface type	3-WIRE INTERFACE
Output type	PNP
Package Shape/Form	BARREL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive Sensor

BI1.5-EG08-AP6X-0.2-RS4T

■

M8 × 1 threaded barrel

■

Stainless steel, 1.4404

■

DC 3-wire, 10…30 VDC

■

NO contact, PNP output

■

M12 x 1 male connector

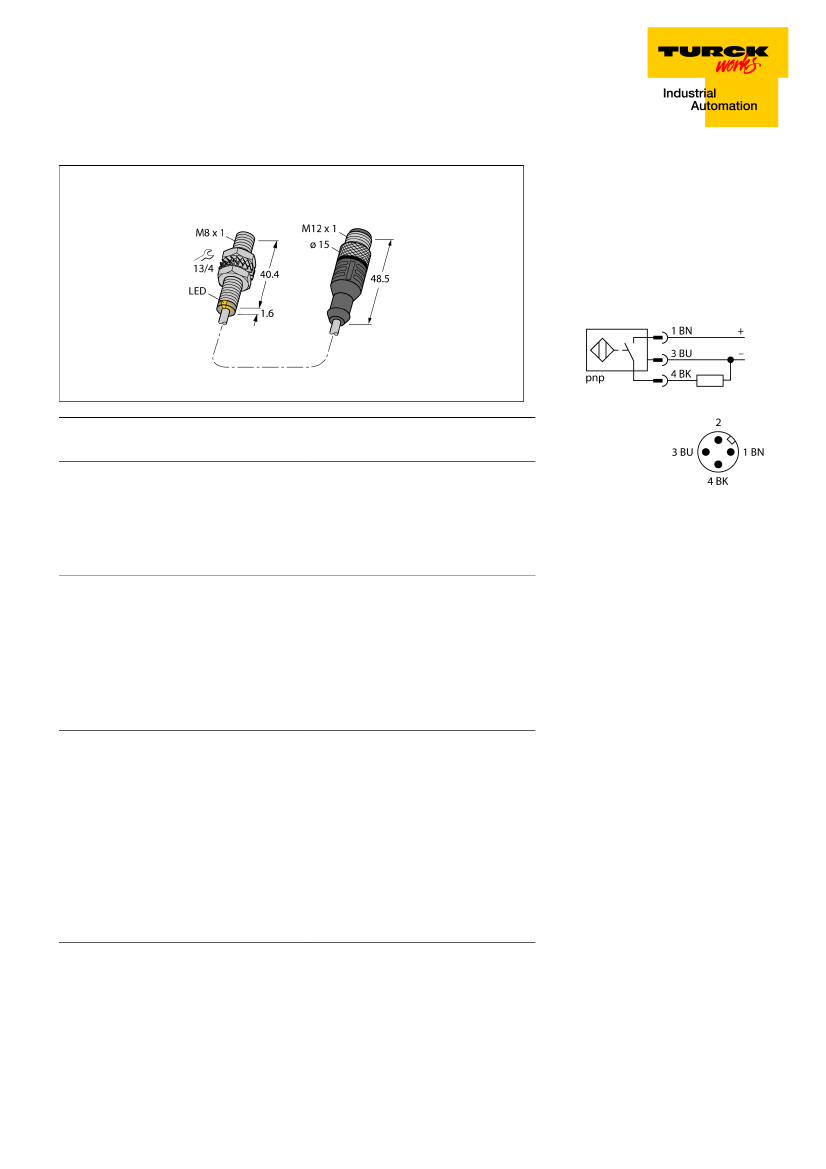

Wiring Diagram

Type designation

Ident-No.

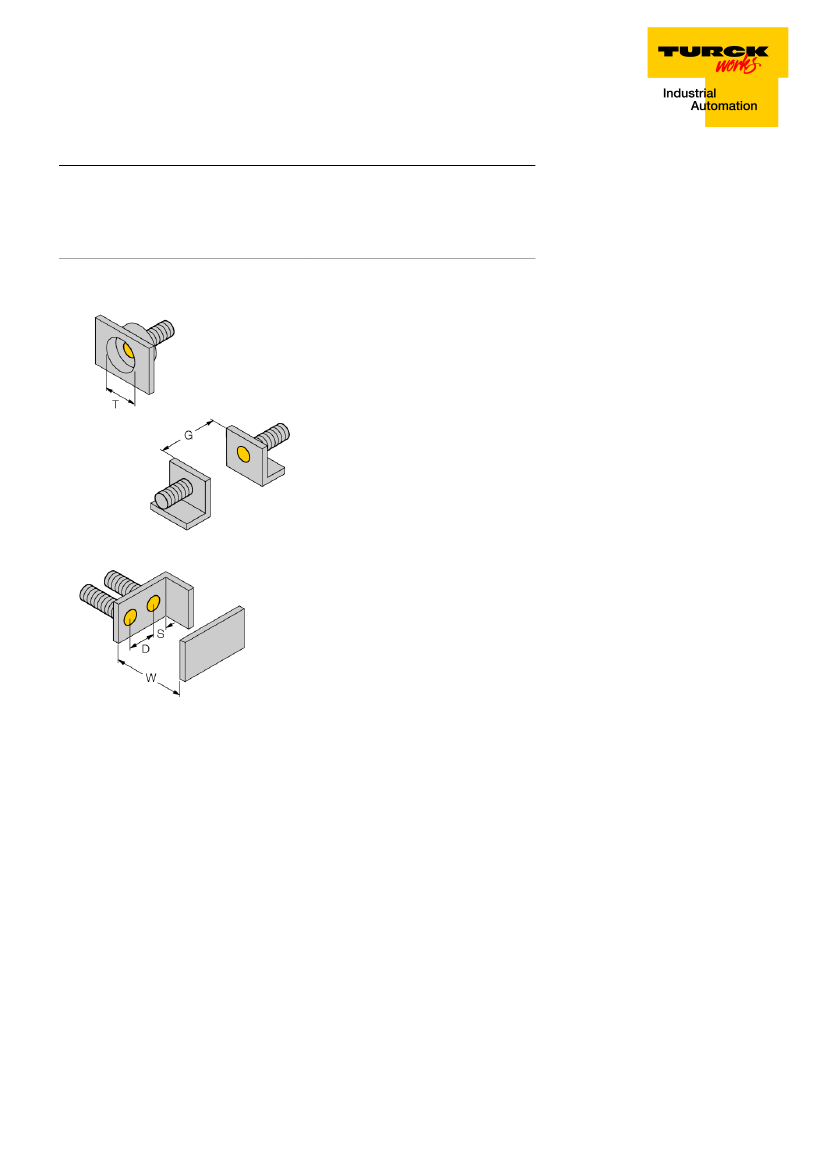

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

0

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

e

Wire breakage/Reverse polarity protection

Output function

Design

Dimensions

Housing material

Active area material

End cap

Material coupling nut

Max. tightening torque housing nut

Electrical connection

Cable quality

Cable cross section

Vibration resistance

Shock resistance

Protection class

MTTF

Switching state

BI1.5-EG08-AP6X-0.2-RS4T

4602292

Flush

ð

(0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

ð

2 % of full scale

ð

± 10 %

3…15 %

-25…+70 °C

10…30 VDC

ð

10 % U

ss

ð

150 mA

ð

15 mA

ð

0.1 mA

ð

0.5 kV

yes/ Cyclic

ð

1.8 V

yes/ Complete

3-wire, NO contact, PNP

Threaded barrel,M8 × 1

42 mm

Stainless steel, 1.4427 SO

Plastic, PA12-GF30

Plastic, Trogamid

metal, CuZn, nickel-plated

5 Nm

Connectors, M12 × 1

4mm, LifYY-11Y, PUR, 2

3 x 0.25 mm

55 Hz (1 mm)

30 g (11 ms)

IP67

2283 years acc. to SN 29500 (Ed. 99) 40 °C

2

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. For this, they use a

high-frequency electromagnetic AC field that

interacts with the target. Inductive sensors

generate this field via an RLC circuit with a

ferrite coil.

LED,Yellow

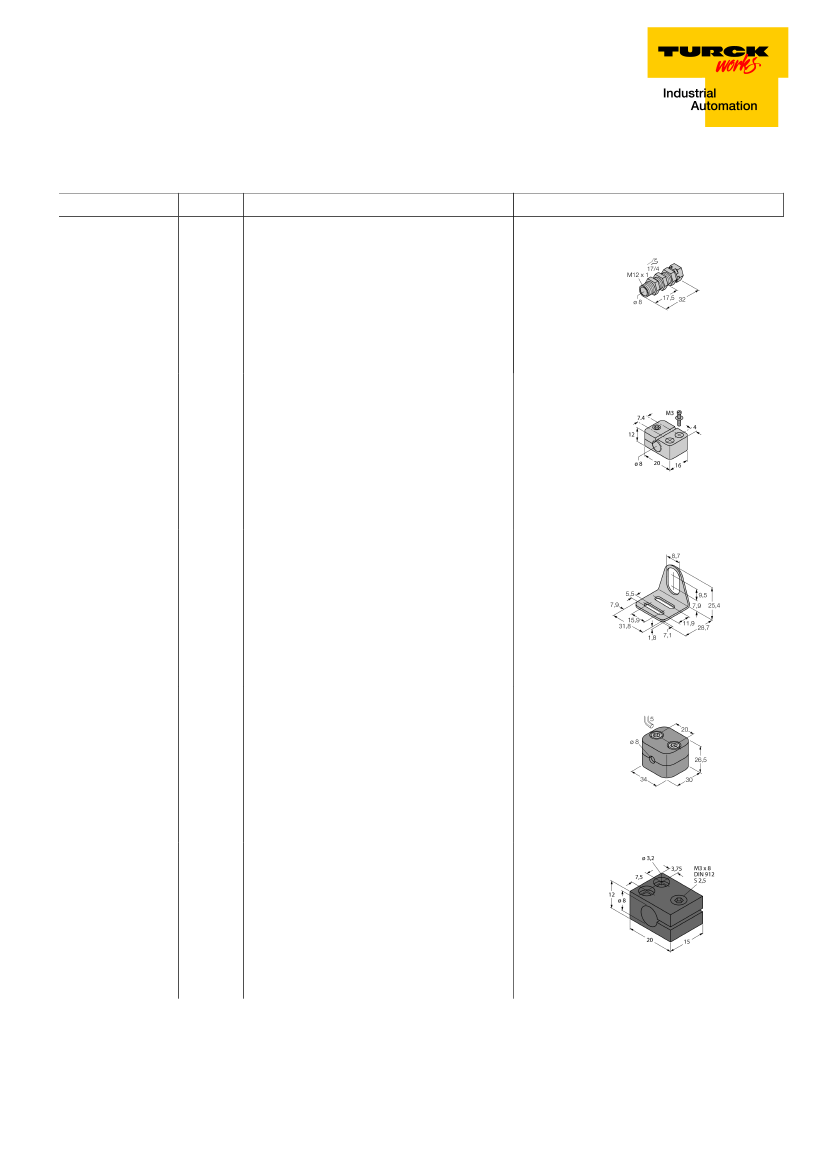

Edition • 2018-05-22T11:48:14+02:00

1/3

TURCK Inc.

ñ

3000 Campus Drive Minneapolis, MN 55441-2656

ñ

Phone: 763-553-7300

ñ

Application Support: 1-800-544-7769

ñ

Fax 763-553-0708

ñ

www.turck.com
