7446313047

Description
General Purpose Inductor, 70uH, 20%, 1 Element, Ferrite-Core, ROHS COMPLIANT
CategoryPassive components    inductor
File Size110KB,1 Pages
ManufacturerWurth Elektronik
Environmental Compliance
Download Datasheet Parametric View All

7446313047 Overview

General Purpose Inductor, 70uH, 20%, 1 Element, Ferrite-Core, ROHS COMPLIANT

7446313047 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerWurth Elektronik
Reach Compliance Codecompliant
ECCN codeEAR99
core materialFERRITE
DC Resistance0.04 Ω
Nominal inductance(L)70 µH
Inductor ApplicationsFILTER CHOKE
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial number7446313047
Number of functions1
Number of terminals4
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum rated current3 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountNO
Terminal locationDUAL IN-LINE
Terminal shapeWIRE
Test frequency0.01 MHz
Tolerance20%
Base Number Matches1

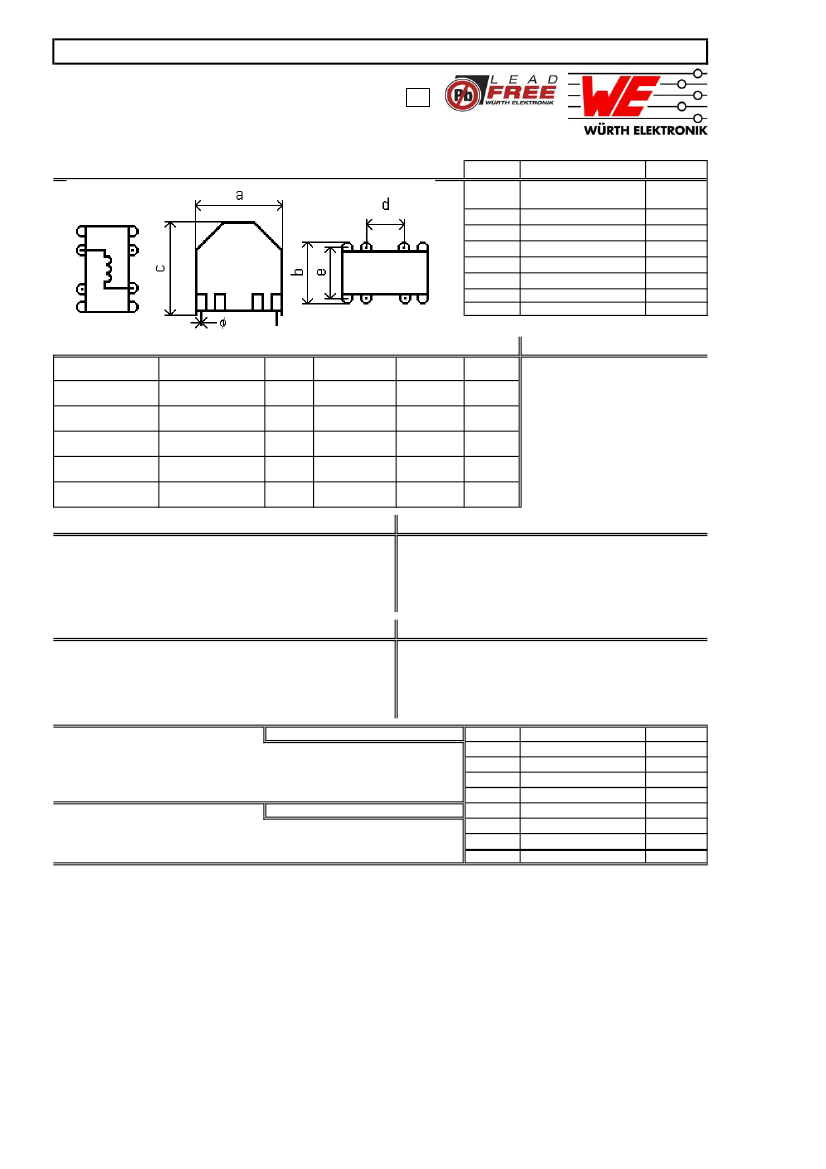

Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7446313047
LF
RoHS
compliant
DATUM / DATE : 2004-10-11
SPEICHER-/FUNKENTSTÖRDROSSEL WE-GI
STORAGE / FILTERCHOKE WE-GI
A
Mechanische Abmessungen / dimensions:
A
B
C
D
E
ø
Größe / Size: LV
26,5 max
18,5 max
30,5 max
12,5 ± 0,2
15,0 ± 0,2
0,6 x 0,6 typ
mm
mm
mm
mm
mm
mm
@@FRM 1@@
B
Elektrische Eigenschaften / electrical properties:
Eigenschaften /
properties
Leerlauf-Induktivität /
inductance
Nenn-Induktivität /
nominal inductance
DC-Widerstand /
DC-resistance
Nennstrom /
nominal current
Eigenres.-Frequenz /
self-res.-fequency
Testbedingungen /
test conditions
10 kHz,50 mV,25°C
Wert / value
Einheit / unit
tol.
±20%
C
Lötpad / soldering spec.:
µH
µH
mΩ
A
MHz
L
O
L
N
R
DC
I
N
SRF
70
47
40
3,0
min.
max.
D
Prüfgeräte / test equipment:
HP 4274 A & HP E3633 A
für/for L
0
/L
N
und/and Q
HP 34401 A
für/for I
DC
und/and R
DC
E
Testbedingungen / test conditions:
Luftfeuchtigkeit / humidity:
Umgebungstemperatur / temperature:
33%
+20°C
F
Werkstoffe & Zulassungen / material & approvals:
Basismaterial / base material:
Gehäuse / case:
Draht / wire:
Verguß / molding:
Ferrit/ferrite 3 W 7538
UL94V-0
P155 IEC317-20
UL94V-0
G
Eigenschaften / general specifications:
Lagertemperatur / storage temperature: -40°C - + 125°C
Betriebstemp. / operating temperature -25°C - + 85°C
Freigabe erteilt / general release:
Kunde / customer
.........................................................................
............................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
............................................................................
.........................................................................
MST
Name
Version 1
Änderung / modification
04-10-11
Geprüft / checked
Kontrolliert / approved
Datum / date
This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such
as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information
network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body. In addition, even electronic component in general
electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed
before use. It is essential to give consideration when to install a protective circuit at the design stage
Würth Elektronik GmbH & Co.KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 1 VON 1
