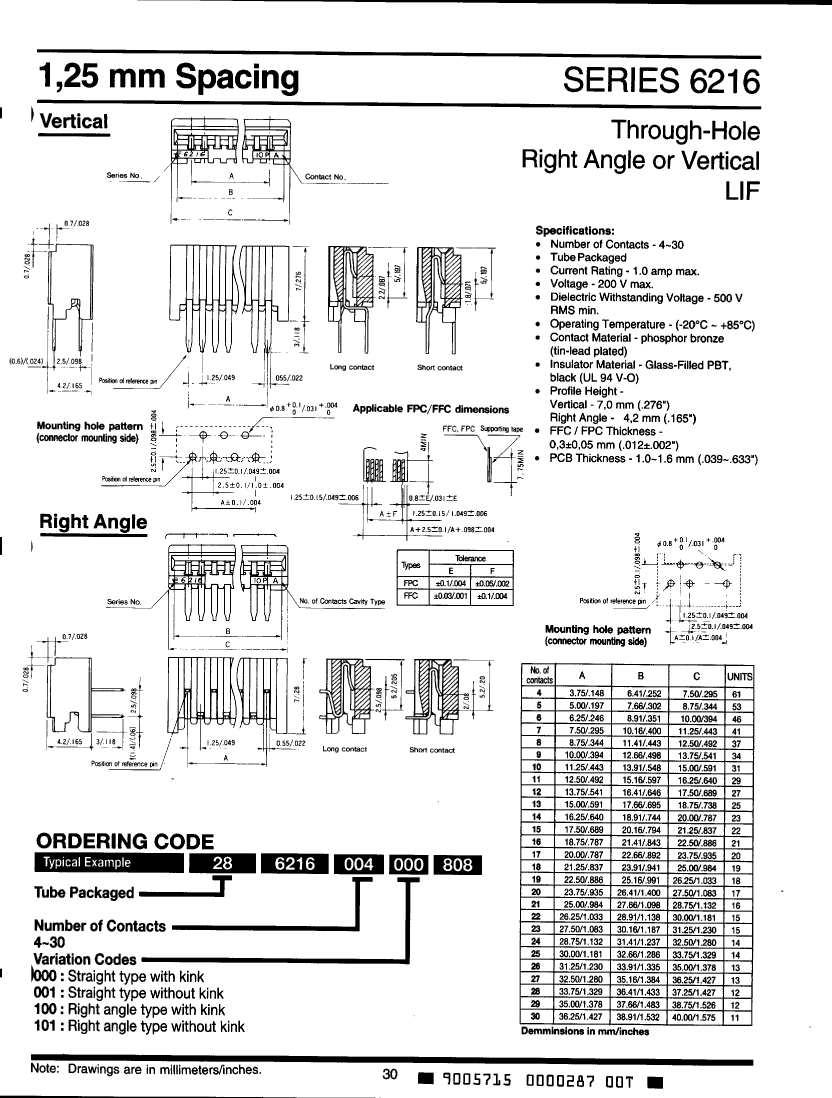

28-6216-021-000-808 datasheet, PDF

28-6216-021-000-808: DescriptionCard Edge Connector, 21 Contact(s), 1 Row(s), Straight, 0.049 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

28-6216-021-000-808 Overview

Card Edge Connector, 21 Contact(s), 1 Row(s), Straight, 0.049 inch Pitch, Solder Terminal, Black Insulator

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	NONE
body width	0.165 inch
subject depth	0.276 inch
body length	1.132 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.049 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	21
Base Number Matches	1
