SED1753TXX datasheet, PDF - EEWORLD Datasheet

SED1753TXX: DescriptionLIQUID CRYSTAL DISPLAY DRIVER, UUC140, SLIM, TCP-140; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size299KB，12 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric View All

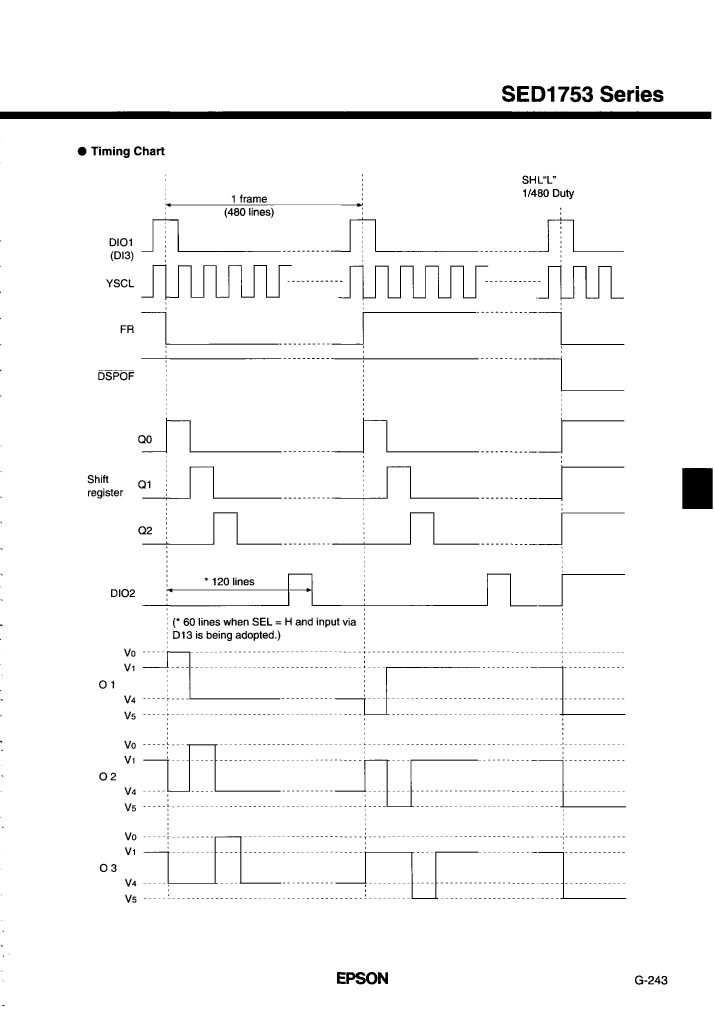

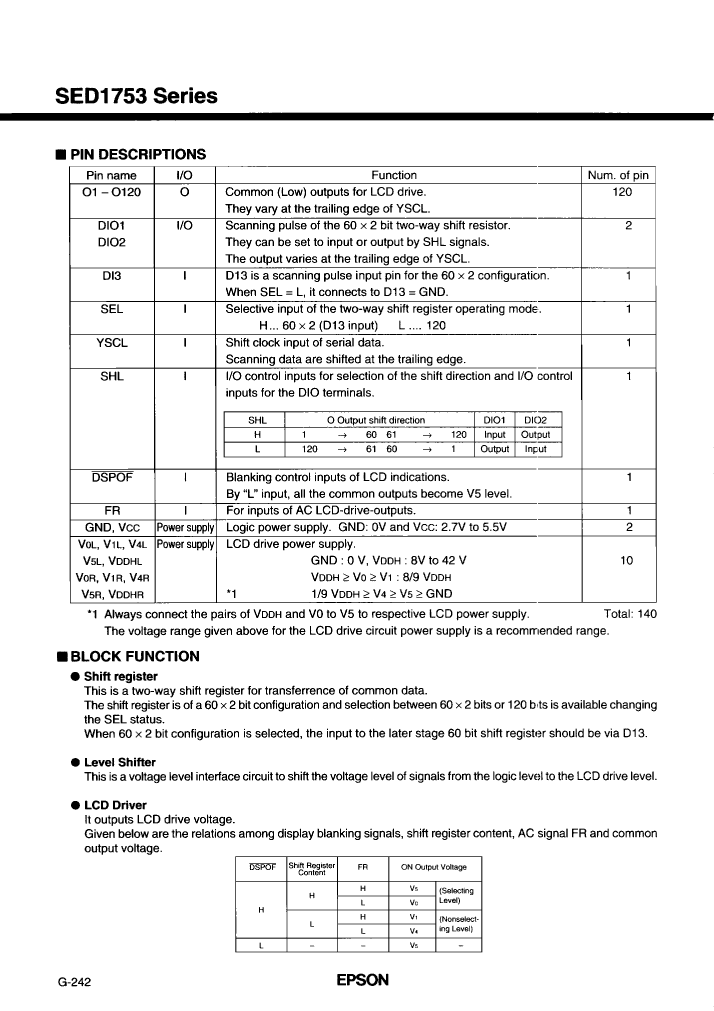

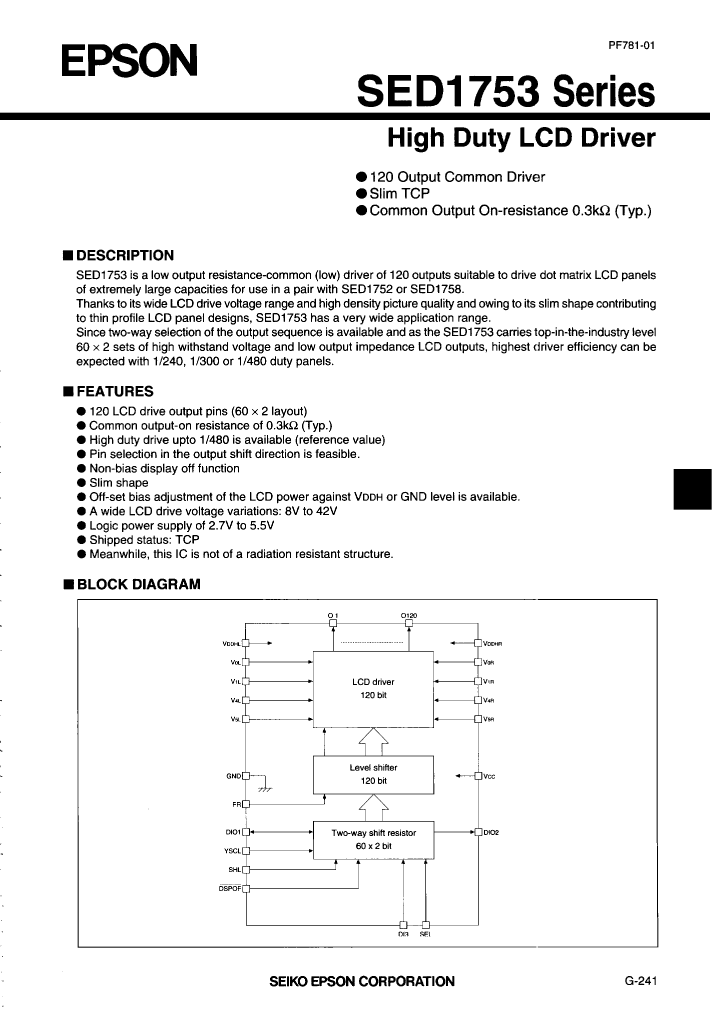

SED1753TXX Overview

LIQUID CRYSTAL DISPLAY DRIVER, UUC140, SLIM, TCP-140

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Parts packaging code	DIE
package instruction	DIE,
Contacts	140
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N140
Multiplex display function	NO
Number of functions	1
Number of segments	120
Number of terminals	140

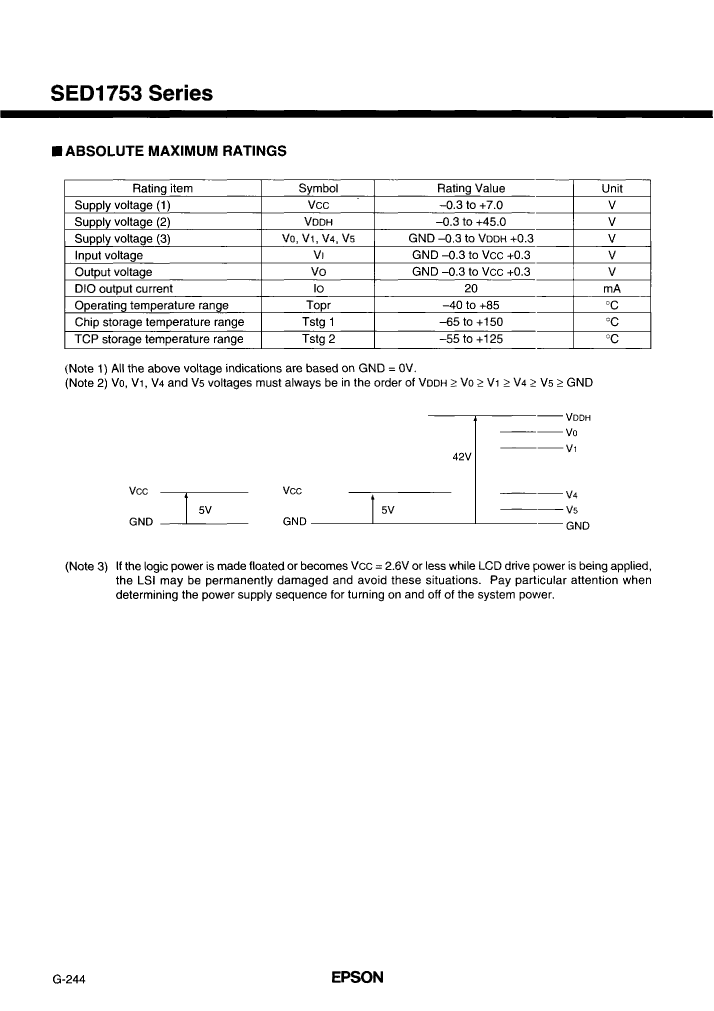

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified

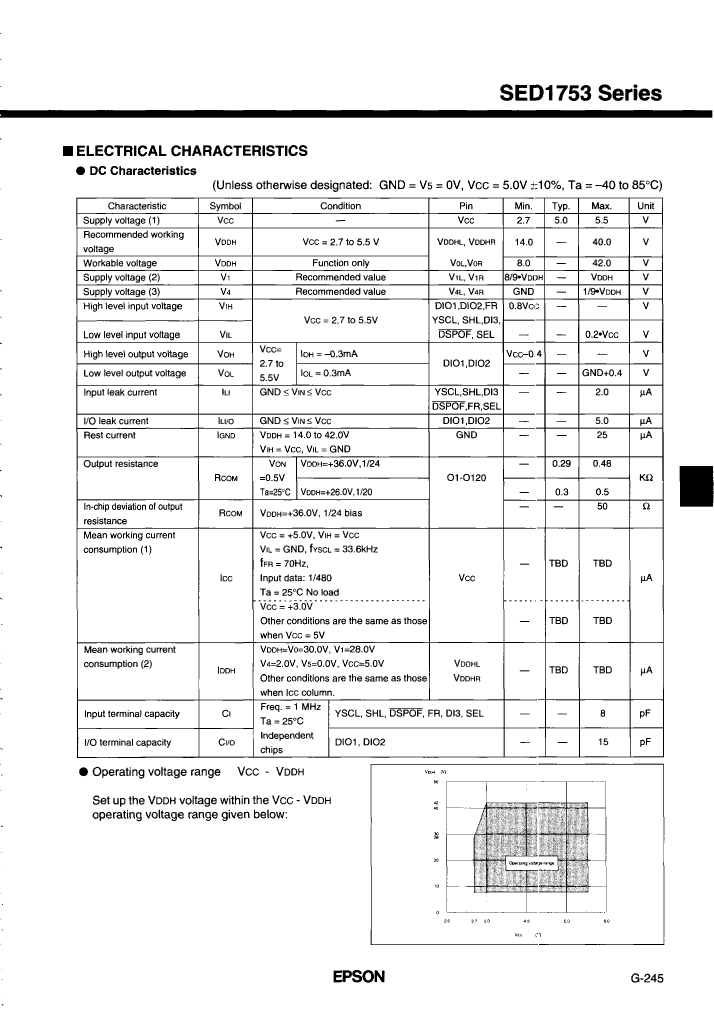

Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
Supply voltage 1-max	40 V
Mains voltage 1-minute	14 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1
