363-522-1410H datasheet, PDF - EEWORLD Datasheet

363-522-1410H: DescriptionBlindmate Connector, Female, Cable Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

363-522-1410H Overview

Blindmate Connector, Female, Cable Mount, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG-402, CAPTIVE CENTER CONTACT, VSWR MAX AT 22 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.13 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BMA
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.16
Base Number Matches	1

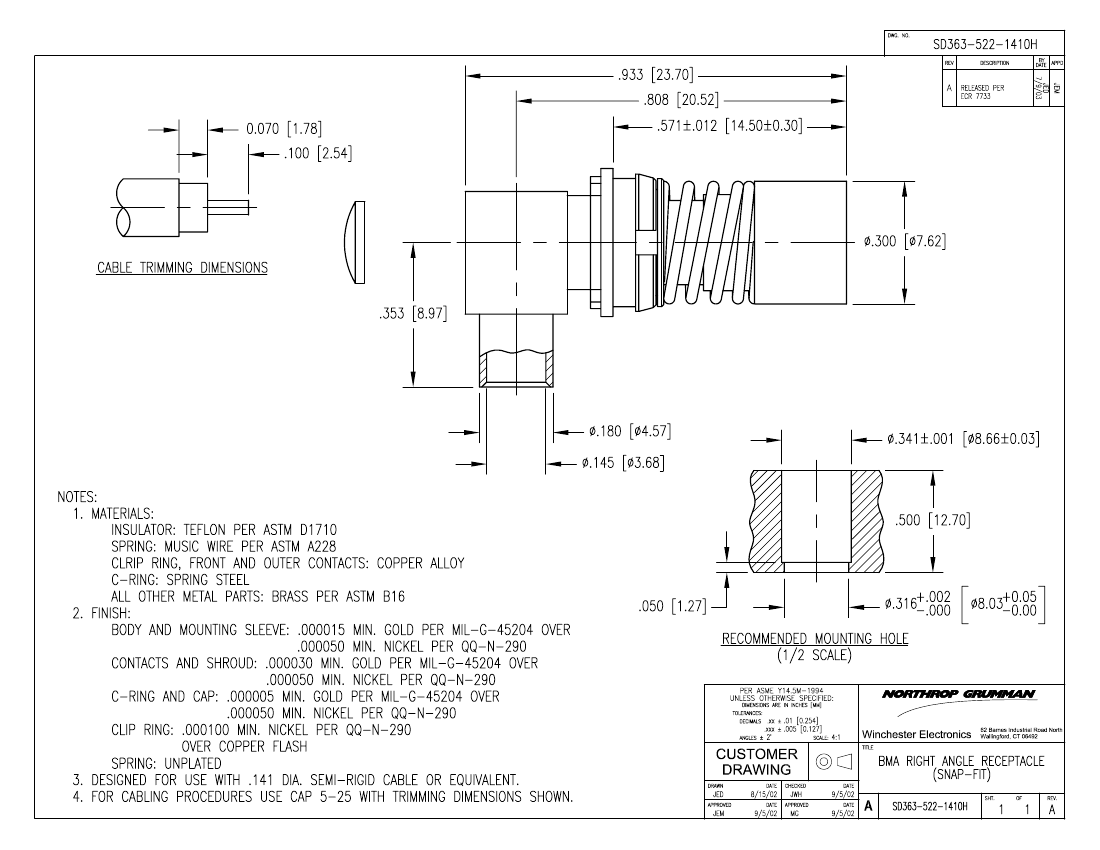

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.

	363-522-1410H
Description	Blindmate Connector, Female, Cable Mount, Solder Terminal, Receptacle
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG-402, CAPTIVE CENTER CONTACT, VSWR MAX AT 22 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.13 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BMA
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.16
Base Number Matches	1
