56F805
Technical Data
56F805 16-bit Hybrid Controller
•
•
Up to 40 MIPS at 80MHz core frequency
DSP and MCU functionality in a unified,
C-efficient architecture
Hardware DO and REP loops
MCU-friendly instruction set supports both
DSP and controller functions: MAC, bit
manipulation unit, 14 addressing modes
31.5K
×
16-bit words Program Flash
512
×
16-bit words Program RAM
4K
×
16-bit words Data Flash
2K
×
16-bit words Data RAM
2K
×
16-bit words Boot Flash
6
3
4
6
PWM Outputs
Current Sense Inputs
Fault Inputs
PWM Outputs
Current Sense Inputs
Fault Inputs
A/D1
A/D2
VREF
ADC
Interrupt
Controller
•
•
•
•
•
•
•
•
•
•
•
Up to 64K
×
16-bit words each of external
Program and Data memory
Two 6-channel PWM Modules
Two 4-channel, 12-bit ADCs
Two Quadrature Decoders
CAN 2.0 B Module
Two Serial Communication Interfaces (SCIs)
Serial Peripheral Interface (SPI)
Up to four General Purpose Quad Timers
JTAG/OnCE
TM
port for debugging
14 Dedicated and 18 Shared GPIO lines
144-pin LQFP Package
Freescale Semiconductor, Inc...
•
•
•
•
•
•
•
PWMA
RSTO
RESET
IRQA
EXTBOOT
IRQB
6
JTAG/
OnCE
Port
VPP
VCAPC V
DD
2
8
V
SS
8*
Digital Reg
Analog Reg
V
DDA
V
SSA
PWMB
Low Voltage
Supervisor
3
4
4
4
4
Quadrature
Decoder 0/
Quad Timer A
Quadrature
Decoder 1/
Quad B Timer
Quad Timer C
Program Controller
and
Hardware Looping Unit
Address
Generation
Unit
Data ALU
16 x 16 + 36
→
36-Bit MAC
Three 16-bit Input Registers
Two 36-bit Accumulators
Bit
Manipulation
Unit
4
2
4
2
2
Program Memory
32252 x 16 Flash
512 x 16 SRAM
Boot Flash
2048 x 16 Flash
Data Memory
4096 x 16 Flash
2048 x 16 SRAM
•
PAB
•
•
PDB
•
•
•
•
IPBB
CONTROLS
16
Quad Timer D
/ Alt Func
CAN 2.0A/B
SCI0
or
GPIO
SCI1
or
GPIO
SPI
or
GPIO
Dedicated
GPIO
XDB2
CGDB
XAB1
XAB2
16-Bit
56800
Core
PLL
CLKO
XTAL
EXTAL
Clock Gen
•
INTERRUPT
CONTROLS
16
COP/
Watchdog
COP RESET
MODULE CONTROLS
ADDRESS BUS [8:0]
DATA BUS [15:0]
2
4
14
Application-
Specific
Memory &
Peripherals
IPBus Bridge
(IPBB)
External
Bus
Interface
Unit
External
Address Bus
Switch
External
Data Bus
Switch
Bus
Control
A[00:05]
6
10
16
PS Select
DS Select
WR Enable
RD Enable
A[06:15] or
GPIO-E2:E3 &
GPIO-A0:A7
D[00:15]
*
includes TCS pin which is reserved for factory use and is tied to VSS

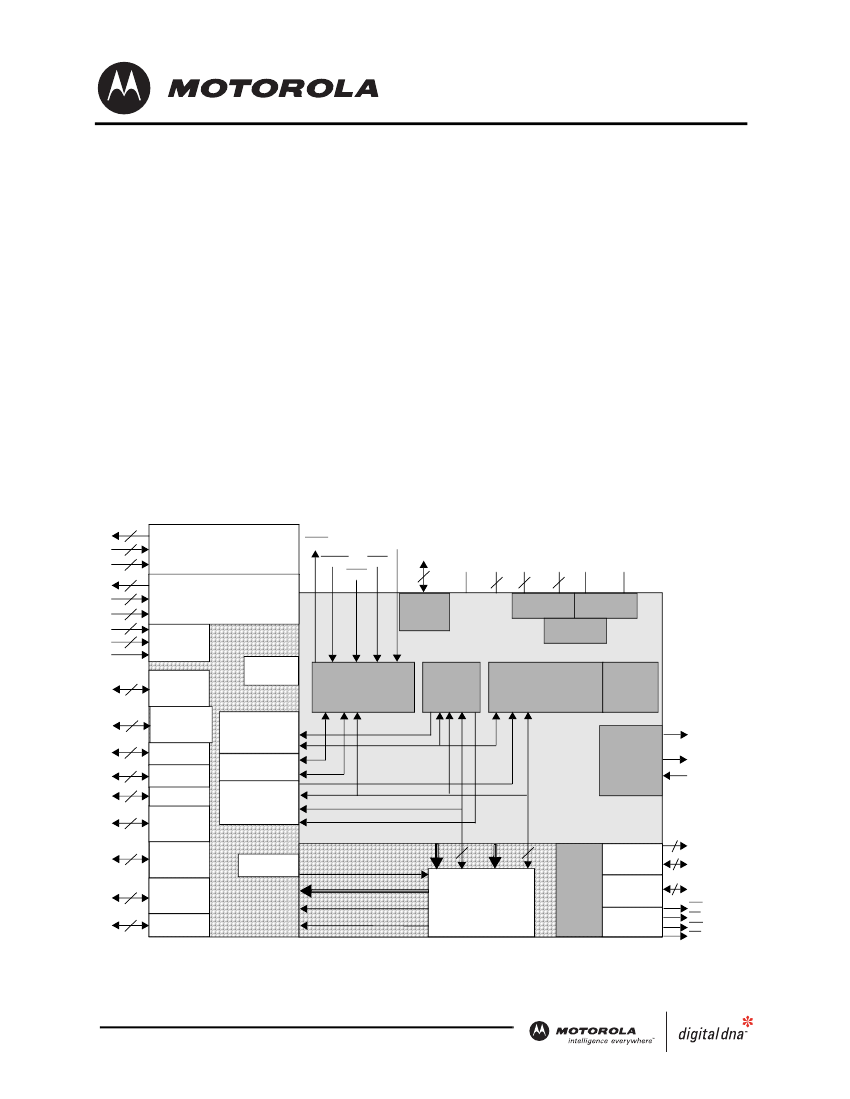

Figure 1. 56F805 Block Diagram
© Motorola, Inc., 2004. All rights reserved.
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
Part 1 Overview
1.1 56F805 Features
1.1.1
•
•
•
•
•
Digital Signal Processing Core
Efficient 16-bit 56800 family hybrid controller engine with dual Harvard architecture
As many as 40 Million Instructions Per Second (MIPS) at 80MHz core frequency
Single-cycle 16
×
16-bit parallel Multiplier-Accumulator (MAC)
Two 36-bit accumulators, including extension bits
16-bit bidirectional barrel shifter
Parallel instruction set with unique DSP addressing modes
Hardware DO and REP loops
Three internal address buses and one external address bus
Four internal data buses and one external data bus
Instruction set supports both DSP and controller functions
Controller style addressing modes and instructions for compact code
Efficient C compiler and local variable support
Software subroutine and interrupt stack with depth limited only by memory
JTAG/OnCE debug programming interface
Freescale Semiconductor, Inc...
•
•
•
•
•
•
•
•
•
1.1.2
•
•
Memory
Harvard architecture permits as many as three simultaneous accesses to Program and Data memory
On-chip memory including a low-cost, high-volume Flash solution
— 31.5K
×
16 bit words of Program Flash
— 512
×
16-bit words of Program RAM
— 4K
×
16-bit words of Data Flash
— 2K
×
16-bit words of Data RAM
— 2K
×
16-bit words of Boot Flash
•
Off-chip memory expansion capabilities programmable for 0, 4, 8, or 12 wait states
— As much as 64K
×
16 bits of Data memory
— As much as 64K
×
16 bits of Program memory
1.1.3
•
Peripheral Circuits for 56F805
Two Pulse Width Modulator modules each with six PWM outputs, three Current Sense inputs, and
four Fault inputs, fault tolerant design with dead time insertion; supports both center- and edge-
aligned modes
Two 12-bit Analog-to-Digital Converters (ADC) which support two simultaneous conversions;
ADC and PWM modules can be synchronized
Two Quadrature Decoders each with four inputs or two additional Quad Timers
•
•
2
For More Information On This Product,
Go to: www.freescale.com
56F805 Technical Data
Freescale Semiconductor, Inc.
56F805 Description
•
•
•
•
•
•
•
•
•
Two General Purpose Quad Timers totaling six pins: Timer C with two pins and Timer D with four
pins
CAN 2.0 B Module with 2-pin port for transmit and receive
Two Serial Communication Interfaces, each with two pins (or four additional GPIO lines)
Serial Peripheral Interface (SPI) with configurable four-pin port (or four additional GPIO lines)
14 dedicated General Purpose I/O (GPIO) pins, 18 multiplexed GPIO pins
Computer Operating Properly (COP) watchdog timer
Two dedicated external interrupt pins
External reset input pin for hardware reset
External reset output pin for system reset
JTAG/On-Chip Emulation (OnCE™) module for unobtrusive, processor speed-independent
debugging
Software-programmable, Phase Locked Loop-based frequency synthesizer for the hybrid controller
core clock
Freescale Semiconductor, Inc...
•
•
1.1.4
•
•
•
•
Energy Information
Fabricated in high-density CMOS with 5V-tolerant, TTL-compatible digital inputs
Uses a single 3.3V power supply
On-chip regulators for digital and analog circuitry to lower cost and reduce noise
Wait and Stop modes available
1.2 56F805 Description
The 56F805 is a member of the 56800 core-based family of hybrid controllers. It combines, on a single
chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of
peripherals to create an extremely cost-effective solution. Because of its low cost, configuration flexibility,
and compact program code, the 56F805 is well-suited for many applications. The 56F805 includes many
peripherals that are especially useful for applications such as motion control, smart appliances, steppers,
encoders, tachometers, limit switches, power supply and control, automotive control, engine management,
noise suppression, remote utility metering, and industrial control for power, lighting, and automation.
The 56800 core is based on a Harvard-style architecture consisting of three execution units operating in
parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming
model and optimized instruction set allow straightforward generation of efficient, compact code for both
MCU and DSP applications. The instruction set is also highly efficient for C compilers to enable rapid
development of optimized control applications.
The 56F805 supports program execution from either internal or external memories. Two data operands can
be accessed from the on-chip Data RAM per instruction cycle. The 56F805 also provides two external
dedicated interrupt lines, and up to 32 General Purpose Input/Output (GPIO) lines, depending on
peripheral configuration.
The 56F805 controller includes 31.5K words (16-bit) of Program Flash and 4K words of Data Flash (each
programmable through the JTAG port) with 512 words of Program RAM and 2K words of Data RAM. It
also supports program execution from external memory (64K).
56F805 Technical Data
For More Information On This Product,
Go to: www.freescale.com
3
Freescale Semiconductor, Inc.
The 56F805 incorporates a total of 2K words of Boot Flash for easy customer-inclusion of field-
programmable software routines that can be used to program the main Program and Data Flash memory
areas. Both Program and Data Flash memories can be independently bulk-erased or erased in page sizes of
256 words. The Boot Flash memory can also be either bulk- or page-erased.
Key application-specific features of the 56F805 include the two Pulse Width Modulator (PWM) modules.
These modules each incorporate three complementary, individually programmable PWM signal outputs
(each module is also capable of supporting six independent PWM functions for a total of 12 PWM outputs)
to enhance motor control functionality. Complementary operation permits programmable dead time
insertion, distortion correction via current sensing by software, and separate top and bottom output polarity
control. The up-counter value is programmable to support a continuously variable PWM frequency. Edge-
and center-aligned synchronous pulse width control (0% to 100% modulation) is supported. The device is
capable of controlling most motor types: ACIM (AC Induction Motors), both BDC and BLDC (Brush and
Brushless DC motors), SRM and VRM (Switched and Variable Reluctance Motors), and stepper motors.
The PWMs incorporate fault protection and cycle-by-cycle current limiting with sufficient output drive
capability to directly drive standard opto-isolators. A “smoke-inhibit”, write-once protection feature for
key parameters and a patented PWM waveform distortion correction circuit are also provided. Each PWM
is double-buffered and includes interrupt controls to permit integral reload rates to be programmable from
1 to 16. The PWM modules provide a reference output to synchronize the ADCs.
The 56F805 incorporates two separate Quadrature Decoders capable of capturing all four transitions on the
two-phase inputs, permitting generation of a number proportional to actual position. Speed computation
capabilities accommodate both fast and slow moving shafts. The integrated watchdog timer in the
Quadrature Decoder can be programmed with a time-out value to alarm when no shaft motion is detected.
Each input is filtered to ensure only true transitions are recorded.
This controller also provides a full set of standard programmable peripherals that include two Serial
Communications Interfaces (SCI), one Serial Peripheral Interface (SPI), and four Quad Timers. Any of
these interfaces can be used as General Purpose Input/Outputs (GPIOs) if that function is not required. A
Controller Area Network interface (CAN Version 2.0 A/B-compliant), an internal interrupt controller and
14 dedicated GPIO are also included on the 56F805.
Freescale Semiconductor, Inc...
1.3 State of the Art Development Environment
•
•
Processor Expert
TM
(PE) provides a Rapid Application Design (RAD) tool that combines easy-to-
use component-based software application creation with an expert knowledge system.
The Code Warrior Integrated Development Environment is a sophisticated tool for code navigation,
compiling, and debugging. A complete set of evaluation modules (EVMs) and development system
cards will support concurrent engineering. Together, PE, Code Warrior and EVMs create a
complete, scalable tools solution for easy, fast, and efficient development.
4
For More Information On This Product,
Go to: www.freescale.com
56F805 Technical Data
Freescale Semiconductor, Inc.
Product Documentation
1.4 Product Documentation
The four documents listed in
Table 2
are required for a complete description and proper design with the
56F805. Documentation is available from local Motorola distributors, Motorola semiconductor sales
offices, Motorola Literature Distribution Centers, or online at
www.motorola.com/semiconductors.
Table 1. 56F805 Chip Documentation
Topic
DSP56800
Family Manual
DSP56F801/803/805/
807 User’s Manual
56F805
Technical Data Sheet
56F805
Product Brief
56F805
Errata
Description
Detailed description of the 56800 family architecture, and
16-bit core processor and the instruction set
Detailed description of memory, peripherals, and interfaces
of the 56F801, 56F803, 56F805, and 56F807
Electrical and timing specifications, pin descriptions, and
package descriptions (this document)
Summary description and block diagram of the 56F805
core, memory, peripherals and interfaces
Details any chip issues that might be present
Order Number
DSP56800FM/D
DSP56F801-7UM/D
Freescale Semiconductor, Inc...
DSP56F805/D
DSP56F805PB/D
DSP56F805E/D
1.5 Data Sheet Conventions
This data sheet uses the following conventions:
OVERBAR
This is used to indicate a signal that is active when pulled low. For example, the RESET pin is
active when low.
A high true (active high) signal is high or a low true (active low) signal is low.
A high true (active high) signal is low or a low true (active low) signal is high.
Signal/Symbol
PIN
PIN
PIN
PIN
1.
Logic State
True
False
True
False
Signal State
Asserted
Deasserted
Asserted
Deasserted
Voltage
1
V
IL
/V
OL
V
IH
/V
OH
V
IH
/V
OH
V
IL
/V
OL
“asserted”
“deasserted”
Examples:
Values for V
IL
, V
OL
, V
IH
, and V
OH
are defined by individual product specifications.
56F805 Technical Data
For More Information On This Product,
Go to: www.freescale.com
5
京公网安备 11010802033920号
EEWORLD
