LTC1452: DescriptionSERIAL INPUT LOADING, 14 us SETTLING TIME, 12-BIT DAC, PDIP8; Categorysemiconductor logic; File Size177KB，12 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

LTC1452 Overview

SERIAL INPUT LOADING, 14 us SETTLING TIME, 12-BIT DAC, PDIP8

LTC1452 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Rated supply voltage	5 V
Maximum linear error	0.0977 %
Processing package description	0.300 inch, PLASTIC, DIP-8
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	IN-LINE
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
Input format	SERIAL
Type of converter	12-BIT DAC
Input bit encoding	BINARY
Rated settling time	14 us
Maximum analog output voltage	4.14 V
Minimum analog output voltage	0.0 V

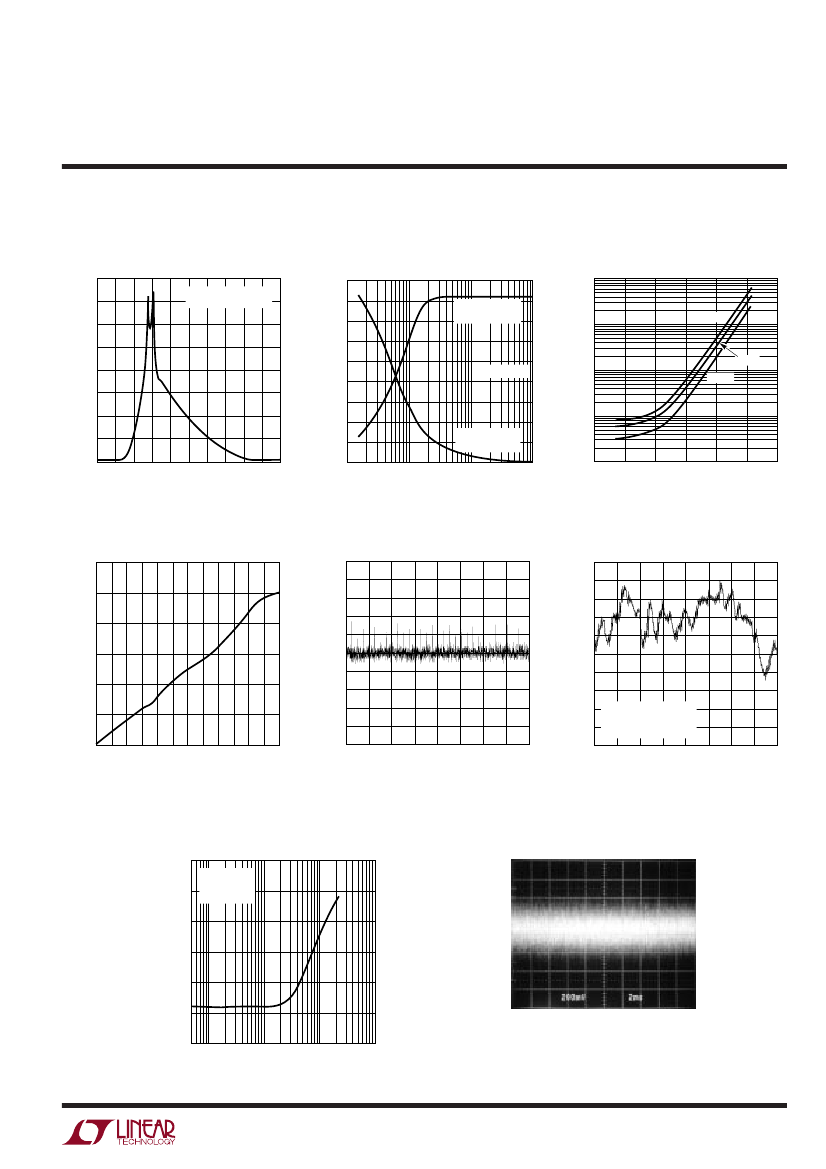

Preview

Download Datasheet

View All

LTC1451

LTC1452/LTC1453

12-Bit Rail-to-Rail

Micropower DACs in SO-8

FEATURES

DESCRIPTIO

12-Bit Resolution

Buffered True Rail-to-Rail Voltage Output

3V Operation (LTC1453), I

: 250µA Typ

5V Operation (LTC1451), I

: 400µA Typ

3V to 5V Operation (LTC1452), I

: 225µA Typ

Built-In Reference: 2.048V (LTC1451)

1.220V (LTC1453)

Multiplying Version (LTC1452)

Power-On Reset

SO-8 Package

3-Wire Cascadable Serial Interface

Maximum DNL Error: 0.5LSB

Schmitt Trigger on Clock Input Allows Direct

Optocoupler Interface

The LTC

1451/LTC1452/LTC1453 are complete single

supply, rail-to-rail voltage output 12-bit digital-to-analog

converters (DACs) in an SO-8 package. They include an

output buffer amplifier and an easy-to-use 3-wire

cascadable serial interface.

The LTC1451 has an onboard reference of 2.048V and a

full-scale output of 4.095V. It operates from a single 4.5V

to 5.5V supply.

The LTC1452 is a multiplying DAC with a full-scale output

of twice the reference input voltage. It operates from a

single supply of 2.7V to 5.5V.

The LTC1453 has an onboard 1.22V reference and a full-

scale output of 2.5V. It operates from a single supply of

2.7V to 5.5V.

The low power supply current makes the LTC1451 family

ideal for battery-powered applications. The space saving

8-pin SO package and operation with no external compo-

nents provide the smallest 12-bit DAC system available.

, LTC and LT are registered trademarks of Linear Technology Corporation.

APPLICATIO S

Digital Calibration

Industrial Process Control

Automatic Test Equipment

Cellular Telephones

TYPICAL APPLICATIO

Daisy-Chained Control Outputs

0.5

Differential Nonlinearity

vs Input Code

0.1µF

µP

CLK

LTC1451

OUT

CONTROL

OUTPUT 1

CS/LD

OUT

REF

GND

DNL ERROR (LSB)

0.0

0.1µF

CLK

CS/LD

LTC1451

GND

1451/2/3 TA01

OUT

CONTROL

OUTPUT 2

–0.5

512 1024 1536 2048 2560 3072 3584 4095

CODE

1451/2/3 TA02

OUT

REF

TO NEXT DAC
