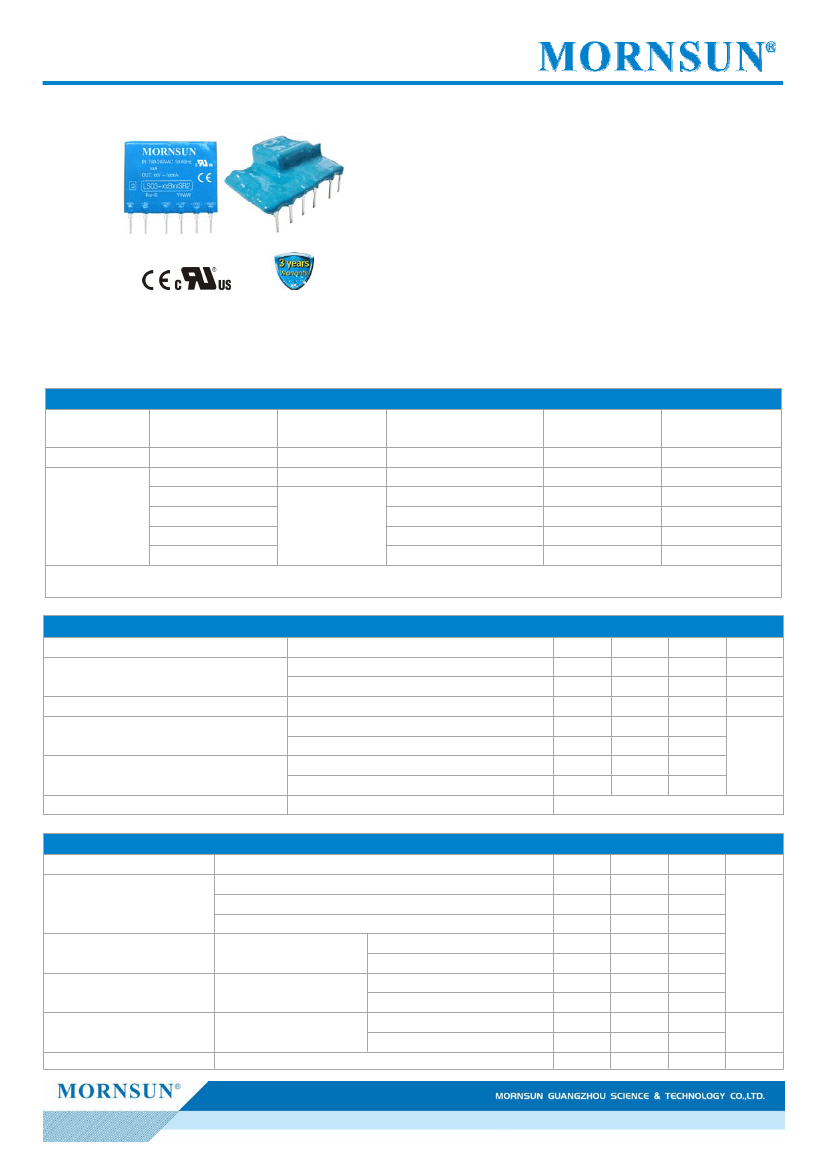

MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LS03-15BxxSR2(-F) Series
Over-current Protection
Short Circuit Protection
Min. Load
10
self-recovery
Hiccup, Continuous, self-recovery
--
--
%
Note:
①
When the LS03-15B05SR2(-F) model operating in -20℃~-40℃ or 55℃~85℃, C2 need to use 270μF/16V sloid capacitance:
②Parallel
line test method is adopted to test the ripple and noise, please see
AC-DC Converter Application Notes
for specific operation methods.
General Specifications
Item
Isolation Voltage
Storage Temperature
Storage Humidity
Welding Temperature
Switching Frequency
Power Derating
Safety Certification
Safety Class
Safety Standard
MTBF
Wave-soldering
Manual-welding
LS03-15B03SR2(-F)
Other models
-40℃½-20℃
+55℃½+85℃
--
--
2
1.33
CLASS II
UL60950/EN60950
MIL-HDBK-217F@25℃ > 300,000 h
Input-output
Operating Temperature
Operating Conditions
Test time: 1min
Min.
3000
-40
-40
--
Typ.
--
--
--
--
Max.
--
+85
+105
85
Unit
VAC
℃
%RH
260±5℃; time:5~10s
360±10℃; time:3~5s
100
--
--
--
--
50
--
--
kHz
%/℃
UL60950/EN60950
Physical Specifications
Package Dimensions
Weight
Cooling method
Refer to the Dimensions
8g(Typ.)
Free convection
EMC Specifications
CE
EMI
RE
ESD
RS
EFT
EMS
Surge
CS
PFM
Voltage dips, short interruptions and
voltage variations immunity
CISPR22/EN55022, CLASS A (See Fig. 1 for typical application circuit)
CISPR22/EN55022, CLASS B (See Fig. 2 for recommended circuit)
CISPR22/EN55022, CLASS A (See Fig. 1 for typical application circuit)
CISPR22/EN55022, CLASS B (See Fig. 2 for recommended circuit)
IEC/EN61000-4-2
IEC/EN61000-4-3
IEC/EN61000-4-4
IEC/EN61000-4-4
IEC/EN61000-4-5
IEC/EN61000-4-6
IEC/EN61000-4-8
IEC/EN61000-4-11
Contact ±4KV
10V/m (See Fig. 2 for recommended circuit)
±2KV (See Fig. 1 for typical application circuit)
±4KV (See Fig. 2 for recommended circuit)
±1KV/±2KV (See Fig. 2 for recommended circuit)
3Vr.m.s (See Fig.2 for recommended circuit)
10A/m (See Fig.2 for recommended circuit)
0%-70% (See Fig.2 for recommended circuit)
Perf. Criteria B
perf. Criteria A
perf. Criteria B
perf. Criteria B
perf. Criteria B
perf. Criteria A
perf. Criteria A
perf. Criteria B
2015.01.07-A/3
Page 2 of 6
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LS03-15BxxSR2(-F) Series

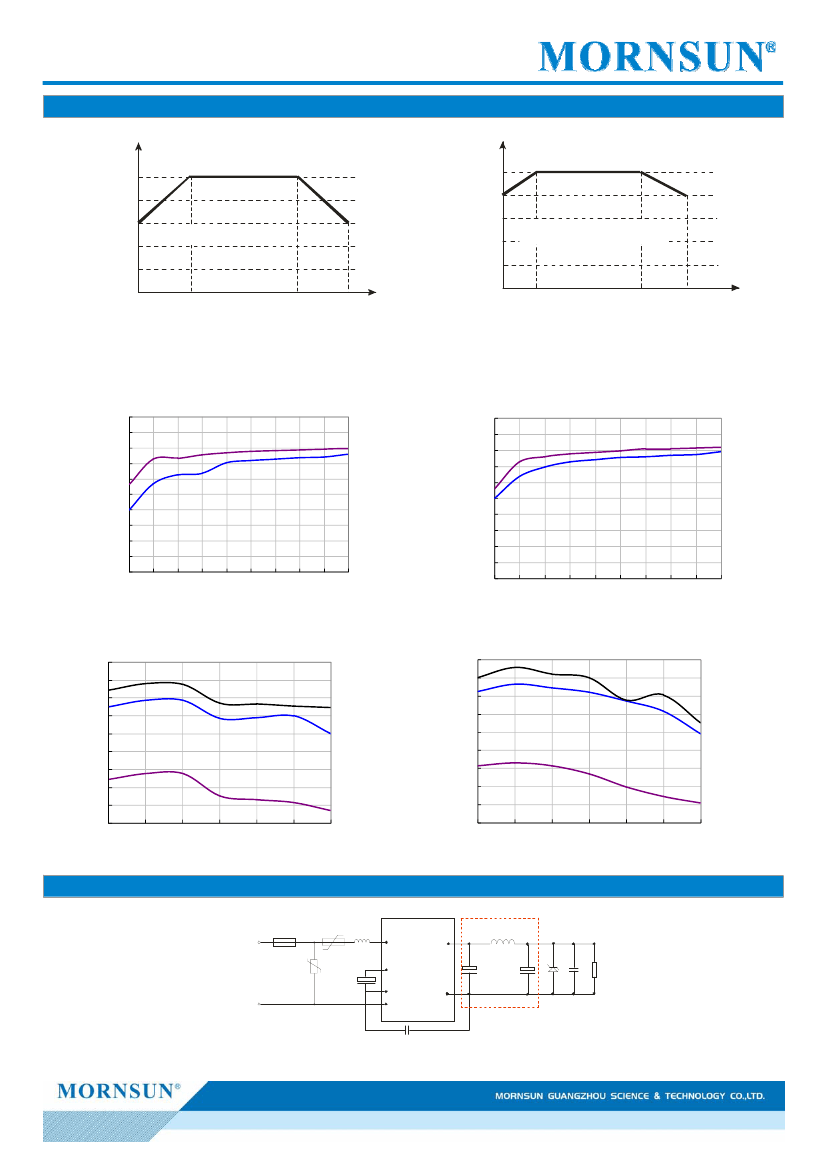

Product Characteristic Curve
Output Pow er Percen t(%)
Output Pow er Perc en t(%)
Te mperature Der ating Cur ve
100
80
60
40
20
-4 0
-2 0
55
85
Inpu t voltage:
100~340VDC
Input Vo ltage De rating Cur ve
1 00
80
60
40
20
85
70
1 10
2 40
1 00
3 40
Input Voltage
2 64
4 00
VAC
VD C
Ambient temperat ure:2 5
℃
110~24 0VAC
Ambient te mperat ure (
℃
)
Note:
①Input
voltage should be derated based on temperature derating when it is 85~110VAC/240~264VAC/70~100VDC/340~400VDC;
②This
product is suitable for use in natural air cooling environments, if in a closed environment, please contact our company’s FAE.
90
85
80
LS03-15B12SR2 AC Input
Efficiency Vs Output Load
110VAC
230VAC
90
85
80
LS03-15B12SR2 DC Input
Efficiency Vs Output Load
200VDC
300VDC
Efficiency(%)
70
65
60
55
50
45
40
10
20
30
40
50
60
70
80
90
100
Efficiency(%)
75
75
70
65
60
55
50
45
40
10
20
30
40
50
60
70
80
90
100
Output Power Percentage(%)
Output Power Percentage(%)
LS03-15BXXSR2(-F) AC Input
Efficiency Vs Input Voltage (Full Load)
84
82
80
84
82
80
LS03-15B24SR2
LS03-15B12SR2
LS03-15BXXSR2(-F) DC Input
Efficiency Vs Input Voltage (Full Load)
Efficiency(%)
78
76
74
72
70
68
66
85
110
120
220
230
240
264
Efficiency(%)
78
76
74
72
70
LS03-15B24SR2
LS03-15B12SR2
LS03-15B05SR2
68
66
100
150
200
250
300
350
400
LS03-15B05SR2
Input Voltage(VAC)
Input Voltage(VDC)
Design Reference
1. Typical application circuit
FUSE
AC(L)
MOV1
AC(N)
NTC
L2
C1
+
3
①
+Vo C2
12
+
L1
C3 TVS C4 RL
+
5
AC-DC
7
1
10
-Vo
CY 0
Fig. 1
1
Note:○
is Pi filter circuit
2015.01.07-A/3
Page 3 of 6
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LS03-15BxxSR2(-F) Series
Model
LS03-15B03SR2(-F)
LS03-15B05SR2(-F)
LS03-15B09SR2(-F)
LS03-15B12SR2(-F)
LS03-15B15SR2(-F)
LS03-15B24SR2(-F)
22μF/400V
4.7
mH
330μF/25V
2.2μH
150μF/35V
100μF/35V
68μF/35V
0.1μF/
50V
1nF/400
VAC
1A/250V
C1
(Required)
L2
C2
(Required)
L1
(Required)
C3
(Required)
120μF/25V
C4
CY0
FUSE
(Required)
TVS
SMBJ7.0A
SMBJ7.0A
SMBJ12A
SMBJ20A
SMBJ20A
SMBJ30A
Note:
1. C1: AC input, is filtering electrolytic capacitor (which is required), and the value of C1 is 22μF/400V.
DC input, is a filtering capacitor in EMC Filter, the value of C1 is 10μF/400V(when input voltage is above 370VDC, and the value of C1 is 10μF/450V), If EMC
performance is not required,C1 could not need.
2. C2 and C3 are output filer capacitors(which is required), they are recommended to be high frequency and low impedance electrolytic capacitors
Capacitance and rated ripple current of capacitors refer to the datasheets provided by the manufactures. Voltage derating of capacitors should be 80% o
above. C4 is a ceramic capacitor, which is used to filter high frequency noise. C2, C3 and L1 form a pi-type filter circuit. Current of L1 and L2 refer to th
datasheets provided by the manufactures, current derating should be 80% or above. TVS is a recommended component to protect post-circuits (if converte
fails). External input NTC is recommended to use 5D-9.External input MOV1 is recommended to use S14K350.

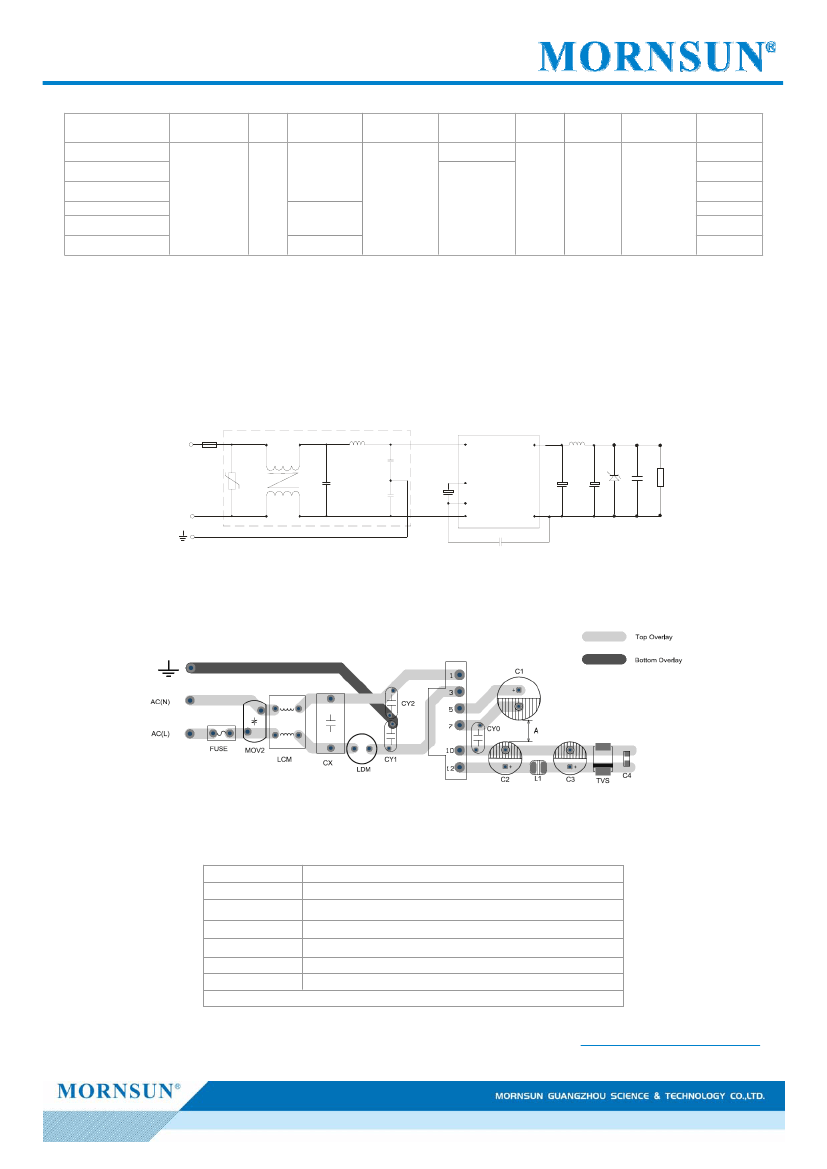

2. EMC solution-recommended circuit
AC(L)
FUSE
LCM
MOV2
CX
CY2
AC(N)
LD M
CY1
C1
+
L1
AC(L)
12
+Vo
C2
TVS
C4
RL
5
7
AC-DC
-Vo
10
+
+
C3
AC( N)
CY0
Fig 2
EMC solution-recommended circuit PCB layout
Fig 3
Suggestions for safety regulation and wiring width: wire width≥3mm, distance between wires≥6mm, and distance between wire and
ground≥6mm, external components between primary circuit and secondary circuit
≥6.4mm.
Element model
MOV2
CY1 , CY2
CX
LCM
LDM
FUSE
Recommended value
S14K350
1nF/400VAC
0.1μF/275VAC
3.5mH
4.7mH
1A/250V, slow blow, it must be connected to FUSE
Can use MORNSUN’s FC-L01DV1 EMC model
3. For more information about Mornsun EMC Filter products, please visit
www.mornsun-power.com
to
download the Selection Guide of EMC Filter
2015.01.07-A/3
Page 4 of 6
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
AC/DC Converter
LS03-15BxxSR2(-F) Series

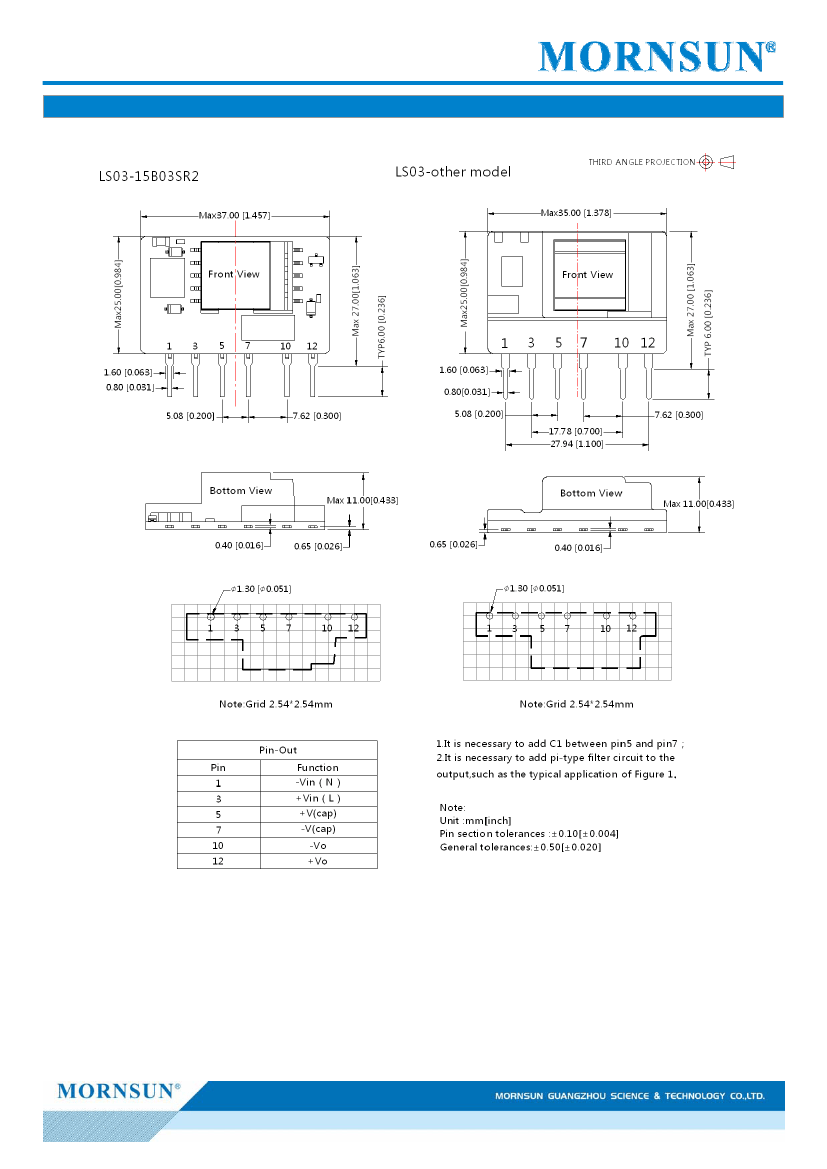

LS03-15BxxSR2 Dimensions and Recommended Layout
2015.01.07-A/3
Page 5 of 6
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
